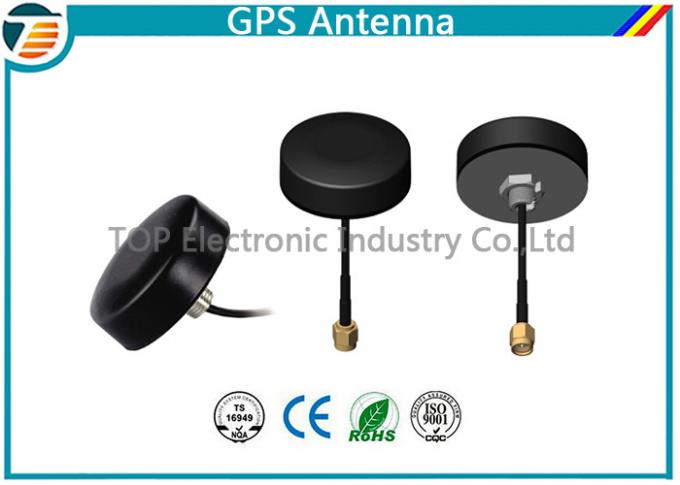

3V-5V External Magnet GPS Active Antenna High Gain For Car

3V-5V External Magnet GPS Active Antenna High Gain For Car
3V-5V External Magnet GPS Active Antenna High Gain For Car 3V-5V External Magnet GPS Active Antenna High Gain For Car 3V-5V External Magnet GPS Active Antenna High Gain For Car 3V-5V External Magnet GPS Active Antenna High Gain For Car

Large Image :  3V-5V External Magnet GPS Active Antenna High Gain For Car

Product Details:
Certification: Ce, RoHS
Detailed Product Description
Model NO.: TOP-GPS01 Application: LAN Cable, Local Communication Cable
Conductor Material: Copper Cover Material: PE
Type: Cat 5 Wire Core Material: Bare Copper Wire
Supply Ability: 500000PCS/Year Usage: Communication Antenna
Usage Occasion: Car Antenna Operating Wavelength: Medium Wave
VSWR: <1.5 Base Antenna: Directional Antenna
Nature Of Operation: Receiving Antenna
High Light:

External Magnet GPS Active Antenna

,

High Gain Car GPS Active Antenna

,

LAN Cable 3v active gps antenna

Basic Info.

Model NO.TOP-GPS01

Application

LAN Cable, Local Communication Cable

Conductor Material:Copper

Cover Material :PE

Type:Cat 5

Wire Core Material:Bare Copper Wire

Certification:Ce, RoHS



There are 2 size solution for the antenna case:
49*39*14mm and 45*35*16mm

Introduction:
The active antenna is the antenna with amplifying circuit, is receiving weak signals through the passive antenna, through the amplifying circuit, the signal amplification, transmission to the host are analyzed, the positioning and navigation. Our GPS active antenna with good axial ratio, standing wave, high gain, low loss characteristics.
Magnet mount antenna for GPS modules operating at 3V. Designed for use with automobiles - the magnet will hold the antenna in place at speeds greater than 100mph. 3 meter cable terminated with standard male SMA connector.


SPECIFICATION
Size: 48X37X16mm
Dieletric Antenna
Center Frequency 1575.42 MHz 3 MHz
V. S. W. R 1.5: 1
Band Width 5 MHz
Impendence 50 ohm
Polarization Type RHCP
LNA / Filter
LNA Gain(Without cable) 28 2 dB Typical
Noise Figure 1.5 dB
DC Voltage 2.2~5 V
DC current 5~15 mA
Cable RG174 5m / 3m / or others
Connector SMA / SMB / MCX / or others
Housing Black or others
Working Temp -40 c~+85 c
Humidity 55%~75%RH
Waterproof IP67



 (iii)Mechanical


Item

Specifications



Mechanical

PCB Dimension

49*39*14mm  / 45*35*16mm

Cable

RG174-U

Length of cable

3M,5M or custom made

Connector

SMA,TNC,BNC,FAKRA ,MCX or others

Radome Material

ABS

Mounting Method

Magnetic, Adhesive


Environmental

Operating Temperature

-40ºC~+85ºC

Relative Humidity

Up to 95%

Vibration

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

ROHS Compliant



Application:
vehicle system, tracking production
3V-5V External Magnet GPS Active Antenna, with High Gain Used for Car


Our Antenna:
---Powerful R&D team
---Wonderful design solution
---Perfect after-sales service
---Strict quality testing
---Rich cooperation experiences with Communication product manufactures
---Competitive price


FAQ
1. What's the Warranty of the Products?
Answer: In general, all goods with 12 month-warranty after the shipments.

2. How about the defective rate?
Answer: Less than 1%.

3. Where can customers get the Product Specification and other datasheets?
Answer: We will send them via email once get the request from the customers.

Our high quality products, competitive price and professional service, be sure to meet your need for all kinds of components. ^_^


Packing & Shipping


3V-5V External Magnet GPS Active Antenna, with High Gain Used for Car

we offer a series of GPS antenna, more other models bellow:
3V-5V External Magnet GPS Active Antenna, with High Gain Used for Car

3V-5V External Magnet GPS Active Antenna, with High Gain Used for Car


3V-5V External Magnet GPS Active Antenna, with High Gain Used for Car
