Product Details:
Payment & Shipping Terms:
|
| Frquency: | 617~960/1710~2690/3300~3800/4400~4900MHz | PCB Size: | 104.6*18*1mm |
|---|---|---|---|
| Cable: | LMR100 Or Others | Connector: | SMA Or Others |
| High Light: | 4400MHz 5g mimo antenna,4900MHz 5g mmwave antenna |
||
5th generation of mobile networks with more faster connections antenna,greater capacity
5G is the 5th generation of mobile networks, it is being designed to meet a very large growth in data and connectivity of today’s modern society, the internet of things with billions of connected devices, and tomorrow’s innovations. 5G will extend the range of frequencies used for mobile communication in legacy LTE/4G systems.
The Advantage of 5G : besides delivering faster connections , greater capacity, but also with the fast response time referred to as latency.
Response time compared with 3G,4G and 5G bellow:
| Network | Response Time |
| 3G Network | ≈ 100 Milliseconds |
| 4G Network | ≈ 30 Milliseconds |
| 5G Network | ≤ 1 Millisecond |

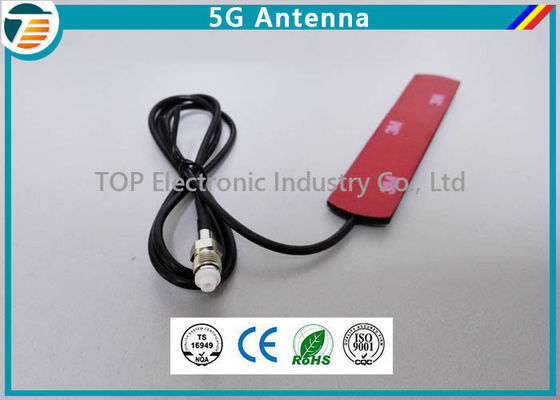

Model: TOP-NR01
Specification :
| Item | Specifications | |
| 5G Antenna | Frequency Range | 617~960/1710~2690/3300~3800/4400~4900MHz |
| V.S.W.R | ＜3 | |
| Polarization | Linear | |
| Gain | 2dBi | |
| Impendance | 50Ω | |
| PCB Dimension | 104.6*18*1mm | |
| Mechanical | Cable | LMR100 or the others |
| Connector | SMA or others | |
| Radome Material | ABS | |
| Mounting Method | magnet | |
| Environmental | Operating Temperature | -40℃~+85℃ |
| Relative Humidity | Up to 95% | |
| Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | |
| Environmentally Friendly | ROHS Compliant | |
Drawing:
Antenna details:
other types:
Our Antenna :
---Powerful R&D team
---Wonderful design solution
---Perfect after-sales service
---Strict quality testing
---Rich cooperation experiences with Communication product manufactures
---Competitive price
FAQ
1. What's the Warranty of the Products?
Answer: In general, all goods with 12 month-warranty after the shipments .
2. How about the defective rate ?
Answer: Less than 1%.
3. Where can customers get the Product Specification and other datasheets?
Answer: we will send them via email once get the request from the customers.
