Product Description

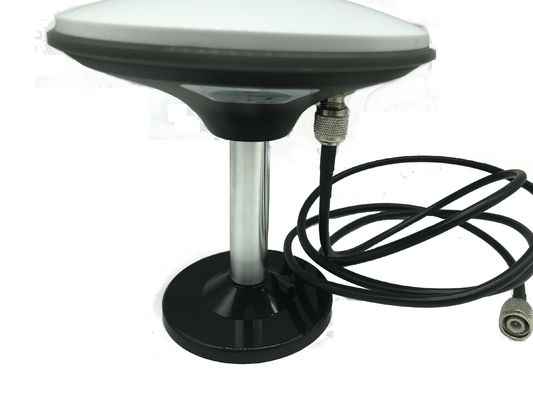

Waterproof IP67 High Gain GPS Antenna , External GNSS Surveying Antenna
It is a high performance multi-frequency, high precision survey GPS antenna .
Precision L1 L2 Glonass external antenna with magnetic base for TRK device.
Waterproof IP67
It used with a case together.
MODEL: TOP-GPS13 (TOP-SUR01)
Specification :
|
Item |
Specifications |
|
|
Antenna |
Frequency |
GPS L1/L2 |
|
GLONASS L1/L2 |
||
|
COMPASS B1/B2/B3 |
||
|
Galileo E5b/E6 |
||
|
Polarization |
RHCP |
|
|
Axial Ratio |
≤3dB |
|
|
V.S.W.R |
≤1.5 |
|
|
Peak Gain |
≥5dBi |
|
|
Impedance |
50Ω |
|
|
Phase Center Error |
±2mm |
|
|
Horizontal coverage angle |
360° |
|
|
LNA |
Gain |
40±2dB |
|
Noise Figure |
≤1.5dB |
|
|
Passband fluctuation |
±1dB |
|
|
Supply Voltage |
3~5.5V DC |
|
|
Current Consumption |
≤45mA |
|
|
V.S.W.R |
≤2.0 |
|
|
Mechanical |
Connector |
TNC-K |
|
Radome Material |
ABS |
|
|
Mounting Method |
Screw |
|
|
Environmental |
Operating Temperature |
-40ºC~+85ºC |
|
Relative Humidity |
Up to 95% |
|
|
Ingress Protection |
IP67 (exclude Air vent in screw hole) |
|
|
Environmentally Friendly |
ROHS Compliant |
|
GPS L1 frequency 1575.42 MHz
GPS L2 frequency 1227.60 MHz
Application :
for precision farming.
for TRK device.
used on UVA application .
Geodetic Antenna for Real-Time Kinematic (RTK) applications
Precision Rover Antenna for Land Survey applications
Drawing:
Case for this antenna
We are professional factory on communication antenna,
more details or other antenna request, you are welcome to contact
All with good quality and competitive price.
