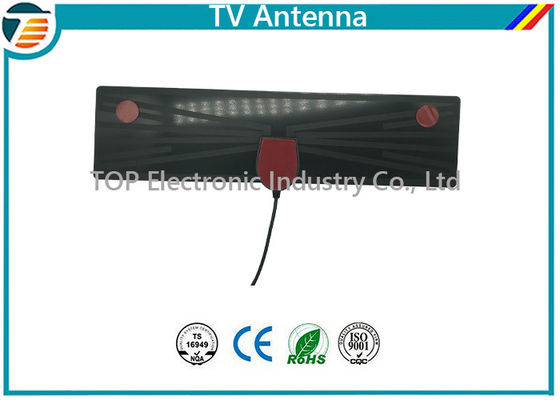

DVB-T/DTMB Film Digital TV Antenna With F Connector High Insulation Resistance

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  DVB-T/DTMB Film Digital TV Antenna With F Connector High Insulation Resistance

Product Details:
Place of Origin: China
Brand Name: TOP
Certification: CE,ROHS
Model Number: TOP-TV-05
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: 1pcs/box, 100 box/carton
Delivery Time: 5-7 working days after getting the payment
Payment Terms: L/C, T/T,Paypal
Supply Ability: 100000pcs/month
Detailed Product Description
Product Name: Combined Antenna Frequency Range: 174-230/470-862
Dielectric Withstand Voltage: 500V(rms) Contact Resistance: ID≤5mΩ,OD≤2.5 MΩ
Insulation Resistance: ≥1000 MΩ Noise Factor: ≤1.5dbi
High Light:

indoor tv antenna

,

digital indoor antenna

DVB-T/DTMB Film Digital TV Antenna With F Connector High Insulation Resistance



DVB-T/DTMB Film TV Antenna

Part Number: TOP-TV-05



Introduction



CABLE: RG174

Connector: F connector

Length: 1m/ 2m/3m or cuszimed



Electrical performance



  Test Item Technical index
1 (Characteristic impedance) 75Ω
2 (temperature range) -40+70℃
3 (Frequency Range) 174-230/470-862
4 (Dielectric Withstand Voltage) 500V(rms)
5 (Contact resistance) ID≤5mΩ,OD≤2.5 mΩ
6 (Insulation resistance) ≥1000 mΩ
7 (Voltage standing wave ratio) ﹤1.5



Mechanical Character



1 (Tensile strength) >15N
2 (Mechanical durability) ≥1000 times





For the best reception please check the following conditions:


1.Keep the antenna away from the sources of interference, keep the antenna away from those big power consumption devices, such as air conditioner, elevator, hair dryer and microwave oven etc.
2.Place the antenna near windows for best results.3.If there are interference between antenna and transmission tower, it may cause some slight signal loss. Install the antenna as high as possible.



Details



DVB-T/DTMB Film Digital TV Antenna With F Connector High Insulation Resistance 0
