Microchip Integrated Circuit Parts , General Purpose And USB 32-Bit Flash Microcontrollers

Microchip Integrated Circuit Parts  , General Purpose And USB 32-Bit Flash Microcontrollers
Microchip Integrated Circuit Parts  , General Purpose And USB 32-Bit Flash Microcontrollers Microchip Integrated Circuit Parts  , General Purpose And USB 32-Bit Flash Microcontrollers Microchip Integrated Circuit Parts  , General Purpose And USB 32-Bit Flash Microcontrollers Microchip Integrated Circuit Parts  , General Purpose And USB 32-Bit Flash Microcontrollers

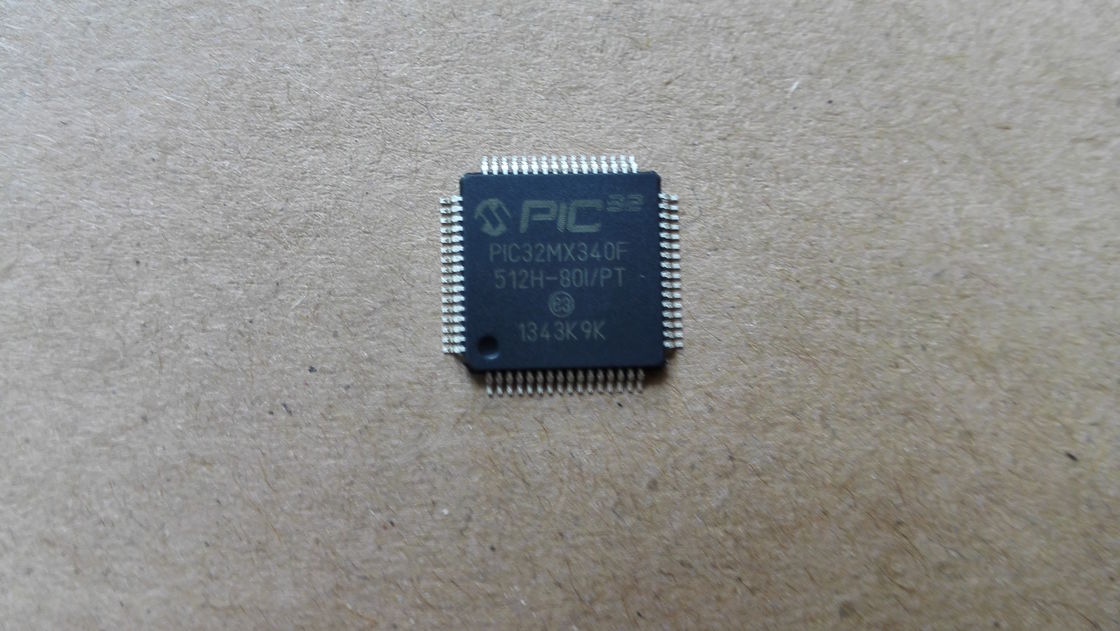

Large Image :  Microchip Integrated Circuit Parts , General Purpose And USB 32-Bit Flash Microcontrollers

Product Details:
Place of Origin: USA
Brand Name: Microchip
Certification: CE,ROHS
Model Number: PIC32MX340F512H-80I/PT
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 480pcs/tray
Delivery Time: 2-4 working days after receiving the payment
Payment Terms: T/T, Western Union,paypal
Supply Ability: 5000pcs/month
Detailed Product Description
Product Name: MCU Flash Program Memory Type: Flash
Core Size: 32-bit Speed: 80MHz
Number Of I/O: 53
High Light:

arm flash

,

nand flash

Microchip High-Performance, General Purpose and USB, 32-bit Flash Microcontrollers PIC32MX340F512H-80I/PT





High-Performance 32-bit RISC CPU:

• MIPS32® M4K® 32-bit core with 5-stage pipeline

• 80 MHz maximum frequency

• 1.56 DMIPS/MHz (Dhrystone 2.1) performance at 0 wait state Flash access

• Single-cycle multiply and high-performance divide unit

• MIPS16e® mode for up to 40% smaller code size

• Two sets of 32 core register files (32-bit) to reduce interrupt latency

• Prefetch Cache module to speed execution from Flash



Microcontroller Features:

• Operating temperature range of -40ºC to +105ºC

• Operating voltage range of 2.3V to 3.6V

• 32K to 512K Flash memory (plus an additional 12 KB of boot Flash)

• 8K to 32K SRAM memory

• Pin-compatible with most PIC24/dsPIC® DSC devices

• Multiple power management modes

• Multiple interrupt vectors with individually programmable priority

• Fail-Safe Clock Monitor Mode

• Configurable Watchdog Timer with on-chip Low-Power RC Oscillator for reliable operation



Peripheral Features:

• Atomic SET, CLEAR and INVERT operation on select peripheral registers

• Up to 4-channel hardware DMA with automatic data size detection

• USB 2.0-compliant full-speed device and On-The-Go (OTG) controller

• USB has a dedicated DMA channel

• 3 MHz to 25 MHz crystal oscillator

• Internal 8 MHz and 32 kHz oscillators

• Separate PLLs for CPU and USB clocks

• Two I2C™ modules

• Two UART modules with: - RS-232, RS-485 and LIN support - IrDA® with on-chip hardware encoder and decoder

• Up to two SPI modules

• Parallel Master and Slave Port (PMP/PSP) with 8-bit and 16-bit data and up to 16 address lines

• Hardware Real-Time Clock and Calendar (RTCC)

• Five 16-bit Timers/Counters (two 16-bit pairs combine to create two 32-bit timers)

• Five capture inputs

• Five compare/PWM outputs

• Five external interrupt pins

• High-Speed I/O pins capable of toggling at up to 80 MHz

• High-current sink/source (18 mA/18 mA) on all I/O pins

• Configurable open-drain output on digital I/O pins







Product Attributes:



Part Status Active
Core Processor MIPS32® M4K™
Core Size 32-Bit
Speed 80MHz
Connectivity I²C, IrDA, LIN, PMP, SPI, UART/USART
Peripherals Brown-out Detect/Reset, DMA, POR, PWM, WDT
Number of I/O 53
Program Memory Size 512KB (512K x 8)
Program Memory Type FLASH
EEPROM Size -
RAM Size 32K x 8
Voltage - Supply (Vcc/Vdd) 2.3 V ~ 3.6 V
Data Converters A/D 16x10b
Oscillator Type Internal
Operating Temperature -40°C ~ 85°C (TA)
Package / Case 64-TQFP
Supplier Device Package 64-TQFP (10x10)





Drawing:





Microchip Integrated Circuit Parts  , General Purpose And USB 32-Bit Flash Microcontrollers 0









Microchip Integrated Circuit Parts  , General Purpose And USB 32-Bit Flash Microcontrollers 1

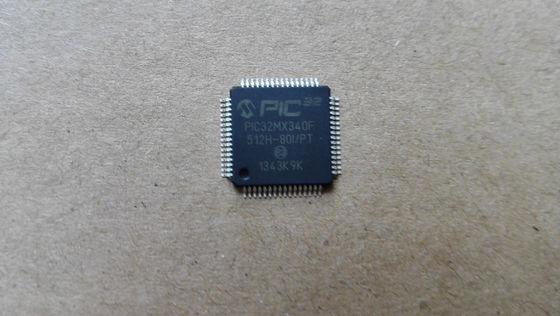

Product show:
