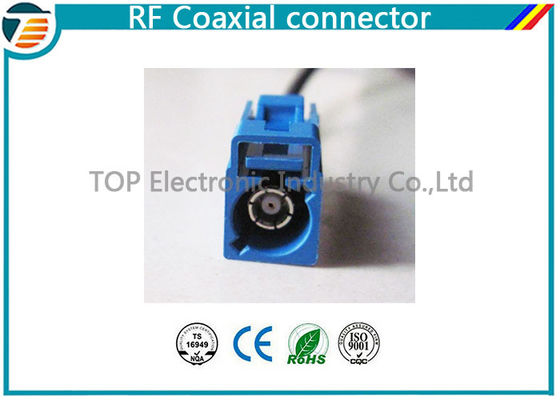

Low Loss FAKRA Female Male RF Coaxial Connector RG174 Double Locked

Low Loss FAKRA Female Male RF Coaxial Connector RG174 Double Locked
Low Loss FAKRA Female Male RF Coaxial Connector RG174 Double Locked Low Loss FAKRA Female Male RF Coaxial Connector RG174 Double Locked Low Loss FAKRA Female Male RF Coaxial Connector RG174 Double Locked

Large Image :  Low Loss FAKRA Female Male RF Coaxial Connector RG174 Double Locked

Product Details:
Place of Origin: Shen Zhen ,Guang Dong,China
Brand Name: TOP
Certification: CE,ROHS
Model Number: TOP-FAKRA-1
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: $0.6/pcs ~0.9$/pcs
Packaging Details: 100pcs/PE bag
Delivery Time: 3-5 working days after receiving the payment
Payment Terms: T/T, Western Union,paypal
Supply Ability: 30kpcs/month
Detailed Product Description
Product Name: RF Coaxial Connector Average Power: 3Kw Max
Insulation Resistance: ≥ 10000 MΩ ImpedanceRange: 50 O
Vibration: 100m/S2 (10~500Hz) Durability: ≥ 500(cycles)
High Light:

bnc coaxial connector

,

coax cable connectors

Low Loss FAKRA Female Male RF Coaxial Connector RG174 Double Locked


Major characteristics:
   Double-locked, fool-proofing assembly with the color and the structure
   The connector is be protected by the cap .
   Easy to assembly
   Many difference between the connector and the cap.
• The product technical characteristics:
   Body: Brass, Ni-plated
   Socket: beryllium-copper, Gold-plated
   Pin contact: Brass
   Insulator: PTFE
   Crimp ferrule: brass, Ni-plated
   O-ring: beryllium-copper
   Shell: PA66+30%GF
• Technical characteristics
   Impedance: 50Ω
   Frequency Range: 4GHz
   Withstanding Voltage: 1000V(RMS)
   Contact resistance:
   Center contact: ≤ 20m
   Outer contact: ≤10m
   Insulation: ≥1,000MΩ
   VSWR: DC - 2GHz<1.2
• Mechanical characteristics:
   Assembly: locked
   Durability: ≥ 500 cycles
   Temperature: - 40 - +85°C


Key Specification :

1. Body: Brass/ Nickel-plated
2. Pin: Brass/ Gold-plated
3. Insulator: TEFLON/ None
4. Washer: Brass: Nickel plated
5. Shell: Delrin/ Amethyst
6.Ferrule: Brass/ Nickel-plated



Type name

Rf connector fakra female connector

Impedance

50Ω

Vibration

100m/S2 (10~500Hz)

Frequency Range

DC-7.5GHz

Insertion Loss

≤ 0.15dB/6GHz

Withstanding Voltage

4000V r.m.s at sea level

Working Voltage

2700Vr.m.s at sea level

Average power

3Kw max

Insulation Resistance

≥ 10000 MΩ

Center conductor retention force

≥ 6N

Durability

≥ 500(cycles)

Contact resistance:

Center Contact ≤ 0.4mΩ

Outer Contact ≤ 1.5mΩ

Voltage Standing Wave Ratio:

Straight

≤ 1.20/6GHz

Right angle

≤ 1.35/6GHz



Application:
1)Antenna adaptor for European BMW/Volkswagen 2002-UP Fakra connector
2) Factory antenna to aftermarket radio
3) Used for replacing factory radio


 Ordering information:

TOP-FAKRA-1

FAKRA Straight Female for RG174

TOP-FAKRA-2

FAKRA Right Angle Female for RG174

TOP-FAKRA-3

FAKRA Straight Female for RG174/RG178

TOP-FAKRA-4

FAKRA Right Angle Female for RG174/RG178

TOP-FAKRA-5

FAKRA Right Angle Male for PCB




According to the national and professional standards(GB&JS), we produce all kinds of RF coaxial connector:
SMA, SMB, SMC, BNC, TNC, N, 7/16(L29), 1.6/5.6(L9),MCX, MMCX, SSMA, SSMB, SSMC, SMZ, MC CARD(C2), 1.0/2.3(CC4), FME, UHF, MINI UHF, F, RCA, TAC etc.
and assembly of antenna, cable-package, audio and video connector, big specification connector of feeder line.
All kinds of adapter, impedance converter, fixed attenuator, termination loading, arrester.
All kinds of RF coaxial cable-SYV, SFF, RG, semi-rigid, etc.



FAKRA production show:
Low Loss FAKRA Female Male RF Coaxial Connector RG174 Double Locked 0







Our main RF coaxial connector :
All series connectors:
SMA,SMB,SMC,MCX,MMCX,N,FME,TNC,
BNC,TNC,FAKRA,GT5,U.FL, GSC,IPEX etc

We use only the best quality  components to ensure the standard of our product range is of the highest caliber.All products we sold out are strictly selected and tested by our QC department.

Contact Details
TOP Electronic Industry Co., Ltd.

Contact Person: Natasha

Tel: 86-13723770752

Fax: 86-755-82815220

Send your inquiry directly to us (0 / 3000)
