4 Pin Electrical Terminal Block Connectors 4POS STR 5.08MM OSTTJ045153andnbsp;
andnbsp;
andnbsp;
Key Specification:
andnbsp;
|
Datasheets
|
OSTTJxx5153
|
|
Standard Packageandnbsp;
|
1000
|
|
Category
|
Connectors, Interconnects
|
|
Family
|
Terminal Blocks - Headers, Plugs and Sockets
|
|
Series
|
OSTTJ
|
|
Packagingandnbsp;
|
Bulk
|
|
Type
|
Plug, Female Sockets
|
|
Number of Positions
|
4
|
|
Positions Per Level
|
4
|
|
Number of Levels
|
1
|
|
Pitch
|
0.200andquot; (5.08mm)
|
|
Header Orientation
|
-
|
|
Plug Wire Entry
|
180anddeg;
|
|
Termination Style
|
Screw
|
|
Mounting Type
|
Free Hanging (In-Line)
|
|
Current - IEC
|
20A
|
|
Voltage - IEC
|
300V
|
|
Current - UL
|
20A
|
|
Voltage - UL
|
300V
|
|
Wire Gauge or Range - AWG
|
12-24 AWG
|
|
Wire Gauge or Range - mmandsup2;
|
0.34-2.5mmandsup2;
|
|
Color
|
Green
|
|
Operating Temperature
|
-30anddeg;C ~ 105anddeg;C
|
|
Contact Mating Finish
|
Tin
|
|
Features
|
Retention Latches (Non-Wire Side)
|
andnbsp;
Material
- Terminal body ,metal housing: brass(CuZn)
- Terminal screw: steel Zinc plating andldquo;_andrdquo; slot type
- Wire guard: PhBz, Tin, plated
- Insulator (housing) :thermoplastic (UL94V-0) Electrical cULus / CSA/ VDE/ TUV
- Voltage rating: 300V/250V/300V/300V
- Current rating: 20A/15A/20A/20A
- Wire range: 2.5mmandsup2; ,0.34-2.5mmandsup2;,solid wire (AWG):12-24/14-22,Stranded wire (AWG):12-24/14-22
- Torque: SLB-IN/Skgf.cm/0.5N.m /0.56N.m
- Screw: M3
- Wire strip length: 7-8mm
- Withstanding voltage:1.6KV/1.5KV/2.5KV/2.5KV
- Operating temperature: -30anddeg;C to + 105anddeg;C
- Safety approval :TUV, RoHS compliant,
andnbsp;
Application:
Wire Gauge or Range andnbsp;12-24 AWG,
used for electronic production, GPS tracker,
Consumer Electronics
vehicle electronics
Medical Electronics
andnbsp;
andnbsp;
Drawing:
andnbsp;
andnbsp;
andnbsp;
andnbsp;
andnbsp;

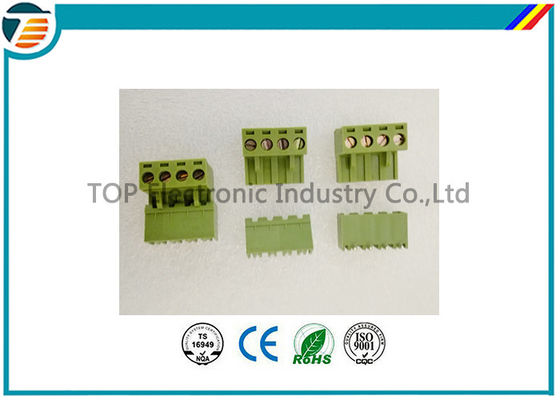

Product show:
