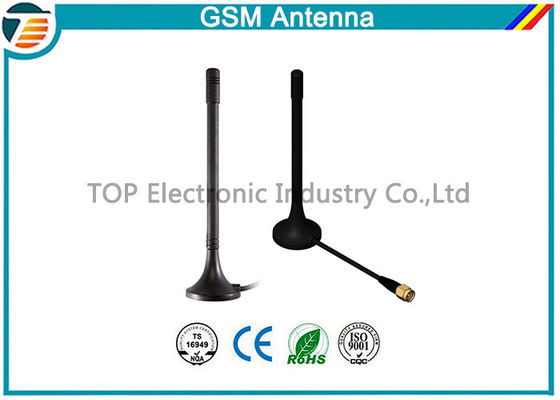

2.5dBi RG174 GSM GPRS Antenna

large.img.alt
small.img.alt small.img.alt

Large Image :  2.5dBi RG174 GSM GPRS Antenna

Product Details:
Place of Origin: Shen Zhen,Guang dondg,China
Brand Name: TOP
Certification: CE,ROHS
Model Number: TOP-GSM01-1 / TOP-GSM01-2
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: 0.9$~1.1$/pcs
Packaging Details: 1pcs/ PE bag
Delivery Time: 3-5 working days after receiving the payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 20k pcs/month
Detailed Product Description
Product Name: GSM GPRS Antenna Size: D29*129MM / D30*89MM
Weight: 0.02kg Gain: 2.5dBi
Connector: SMA Male,SMA RP,FME Etc Cable: RG174
High Light:

2.5dBi 3g gsm antenna

,

RG174 gsm external antenna

,

RG174 GSM GPRS Antenna

2.5dBi RG174 GSM GPRS Antenna



GSM Communication Dielectric Rod Antenna SMA Connector RG174 Cable



There are 2 type:

TOP-GSM01-1   D29*129MM

TOP-GSM01-2   D30*89MM



Antenna introduction:

Offering a gain of 2 dBi, the Panama is designed for M2M (Machine to Machine), Telemetry and Telemetric applications requiring wireless connectivity to multiple cellular-based frequencies including GPRS and 3G networks. The antenna is available in fixed cable and connector configurations.





Key feature:

Mini Magnetic antenna with 3M RG-174 and SMA-Male connector - covers 900/1800 MHz and 3G as well as US frequencies 850/1900 MHz. with black Plastic Housing

Should be mounted onto a metal surface for optimal operation.



It comes with either a SMA, RP-SMA, or RP-TNC connector, which are the most common connector types for most all of the popular routers on the market. Can be mount with 3M Adhesive and magnet.





Specification:

Item

Specifications

Antenna

Frequency Range

824~960/1710~2170MHz

Polarization

Linear

Gain

2.0dBi-2.5dBi(Zenith)

V.S.W.R

<2.0

Impendance

50Ω

Mechanical

Cable

RG174--3M

Connector

SMA,SMB,TNC,FME etc

Mounting Method

Magnet or 3M Adhesive

Environmental

Operating Temperature

-40℃~+85℃

Vibration

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

ROHS Compliant







Advantages:

 The advantage of the Manufacturer Supply 3dBi Antenna Omni Antenna SMA Omni Magnetic Mount GSM Antenna For Voip Traffic Goip32,Voip Gateway Module


1,Rich experience , proven technique
2,Reasonable price
3,Wider frequency

4,OEM/ODM available

5,Perfession service

6,ISO:9001 certification

7,1 year guarantee

8,Fast delivery time
9,R&D

10,Huge Capacity



The test of Manufacturer Supply 3dBi Antenna Omni Antenna SMA Omni Magnetic Mount GSM Antenna For Voip Traffic Goip32,Voip Gateway Module





Application:

ideal for M2M and telematics applications globally.

GSM system

Radio

Car



TOP-GSM01-1 Drawing:

2.5dBi RG174 GSM GPRS Antenna 0





TOP-GSM01-2 Drawing:

2.5dBi RG174 GSM GPRS Antenna 1





Antenna display:



2.5dBi RG174 GSM GPRS Antenna 2





Click here to find the data sheet:

TOP-GSM01-1.pdf






Our  Antenna :

---Powerful R&D team

---Wonderful design solution

---Perfect after-sales service

---Strict quality testing

---Rich cooperation experiences with Communication product manufactures

---Competitive price



FAQ

 1. What's the Warranty of the Products?

Answer: In general, all goods with 12 month-warranty after the shipments .



2.  How about the defective rate ?

Answer: Less than 1%.



 3. Where can customers get the Product Specification and other datasheets?

Answer: we will send them via email once get the request from the customers.



 Our high quality products , competitive  price and professional service, be sure to meet your need for all kinds of components.    ^_^
