Product Details:
Payment & Shipping Terms:
|
| Product Name: | GPS Module | Size: | 16*12.2*2.4 Mm |
|---|---|---|---|
| Operating Tempreture: | -40°C To +85°C | Weight: | 2g |
| Baud Rate: | 9600 | Supported Antennas: | Active And Passive |
| High Light: | gps receiver modules,gps gprs module |
||
Low Cost Wireless Miniature GPS Receiver Module NEO-7N 10Hz GPS Chip
Module introduction:
NEO-7 Series module
Versatile u-blox 7 GPS/GNSS modules
Among UBLOX 7 most advanced version of the module with TCXO, FLASH, SAW and LNA filter.
The NEO-7 series is the newest family of standalone GPS/GNSS modules from u-blox. With the exceptional performance of the u-blox 7 multi-GNSS (GPS, GLONASS, Galileo, QZSS and SBAS) engine, the NEO-7 series delivers high sensitivity and minimal acquisition times in the industry proven NEO form factor.
The NEO-7 series provides maximum sensitivity while maintaining low system power. The NEO-7M is optimized for cost sensitive applications, while NEO-7N provides best performance and easier RF integration. The industry proven NEO form factor allows easy migration from previous NEO generations. Sophisticated RF-architecture and interference suppression ensure maximum performance even in GPS-hostile environments.
Advantage:
· Multi-GNSS engine for GPS, GLONASS, Galileo and QZSS
· Cost and performance optimized versions
· Combines low power consumption and high sensitivity
· Simple integration with u-blox wireless modules
· Backward compatible with NEO-6 and NEO-5 families
Key Feature:
|
Receiver type |
56-channel u-blox 7 engine |
|
GPS L1 C/A, GLONASS L1 FDMA |
|
|
QZSS L1 C/A |
|
|
Galileo E1B/C |
|
|
SBAS: WAAS, EGNOS, MSAS |
|
|
Navigation update rate up to 10 Hz |
|
|
Accuracy GPS / GLONASS |
Position 2.5 m CEP / 4.0 m |
|
SBAS 2.0 m CEP / n.a. |
|
|
Acquisition GPS / GLONASS |
Cold starts: 29 s / 30 s |
|
Aided starts: 5 s / n.a. |
|
|
Reaquisition: 1 s / 3 s |
|
|
Sensitivity GPS / GLONASS |
Tracking: –162 dBm / –158 dBm |
|
Cold starts: –148 dBm / –140 dBm |
|
|
Warm starts: –148 dBm / –145 dBm |
|
|
Assistance |
AssistNow Online |
|
AssistNow Offline |
|
|
AssistNow Autonomous |
|
|
OMA SUPL & 3GPP compliant |
|
|
Oscillator: TCXO (NEO-7N), crystal (NEO-7M) |
|
|
RTC crystal: built-in |
|
|
Anti jamming: active CW detection and removal |
|
|
Memory: ROM (NEO-7M) or Flash (NEO-7N) |
|
|
Supported antennas: active and passive |
|
Environmental data, quality & reliability
- Operating temp. –40° C to 85° C
- Storage temp. –40° C to 85° C
- RoHS compliant (lead-free)
- Green (halogen-free): NEO-7N
- Qualification according to ISO 16750
- Manufactured in ISO/TS 16949 certified production sites
- Uses u-blox 7 chips qualified according to AEC-Q100
Advantage:
For professional automotive markets.

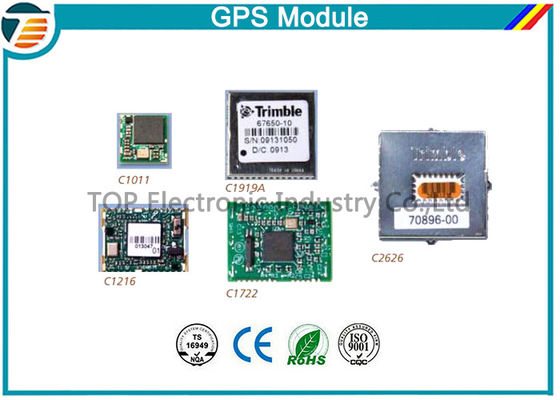

module show:
