Product Details:
Payment & Shipping Terms:
|
| Product Name: | GPS Internal Antenna | Size: | 37*37*5.5MM /37*37*7.5MM |
|---|---|---|---|
| Gain: | 20 Dbi | Cable: | 1.13,1.37 Or Customzied |
| Operating Temperature: | -40℃~+85℃ | Length Of The Cable: | 10cm,15cm Etc |
| High Light: | gsm gps antenna,gps receiver antenna |
||

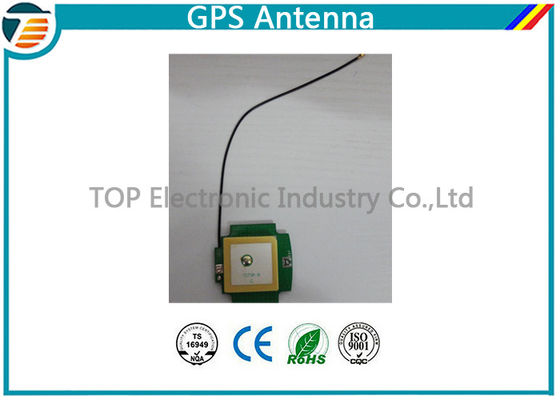

Internal patch active GPS antenna TOP-GPS-AI07 used for cellphone
normal
The size for internal patch active GPS antenna:
13x13 ,15x15, 18x18, 20x20, 25x25, 27x27, 37x37,
there are 2 type size can be choose:
37*37*5.5MM /37*37*7.5MM
Introduction:
TOP-GPS-AI07 is a most compact GPS antenna module in the market.
It’s specially designed for the portable device that needs GPS antenna embedded such as PND, laptop, mobile phone and so on. Also, It is compatible with most GPS receives available on the market and provides a perfect alternative for the application of the GPS in different fields.
Electrical Characteristics
The antennas contains a high performance GPS patch antenna and a high-tech low noise amplifier
l Provides excellent signal amplification and out-band-rejection for the receiver
l Mounting: Magnetic base/Adhesive
l Water resistant
Ordering information:
| Part# | Size(mm) |
| TOP-GPS-AI01 | 13*13*6.2MM |
| TOP-GPS-AI02 | 15*15*7MM |
| TOP-GPS-AI03 | 18*18*7.8MM |
| TOP-GPS-AI04 | 20*20*8MM |
| TOP-GPS-AI05 | 25.3*25.3*9MM |
| TOP-GPS-AI06 | 37*29*6MM /37*29*8MM |
| TOP-GPS-AI07 | 37*37*5.5MM /37*37*7.5MM |
| TOP-GPS-AI08 | 27*27*9MM |
| TOP-GPS-AI09 | D45*7.8MM |
| TOP-GPS-AI10 | 30*25*4MM |
Specification:
|
Item |
Specifications |
|
|
Antenna |
Center Frequency |
1575.42±3MHz |
|
Band Width |
CF±5MHz |
|
|
Polarization |
RHCP |
|
|
Gain |
5dBic(Zenith) |
|
|
V.S.W.R |
＜1.5 |
|
|
Impedance |
50Ω |
|
|
Axial Ratio |
3dB(max) |
|
|
Dimension |
25*25*4mm |
|
|
LNA |
Gain |
28±2dB |
|
Noise Figure |
＜1.5 |
|
|
Filter Insertion Loss |
＜3dB |
|
|
Ex-band Attenuation |
12dB@CF+50MHz/16dB@CF-50MHz |
|
|
Supply Voltage |
2.2~5V DC |
|
|
Current Consumption |
5~15mA |
|
|
V.S.W.R |
＜2.0 |
|
|
Mechanical |
Cable |
RF1.13 or others |
|
Connector |
IPEX or others |
|
|
Environmental |
Operating Temperature |
-40℃~+85℃ |
|
Relative Humidity |
Up to 75% |
|
|
Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
|
|
Environmentally Friendly |
ROHS Compliant |
|
Advantage:
GPS antenna is the smallest internal active GPS antenna module yet with high sensitivity, high temperature stability and low current consumption.
Application:
It's ideal for embedded applications like PDA, PND, laptops and security surveillance.
Drawing:
Click here to find the data sheet
Our Antenna :
---Powerful R&D team
---Wonderful design solution
---Perfect after-sales service
---Strict quality testing
---Rich cooperation experiences with Communication product manufactures
---Competitive price
FAQ
1. What's the Warranty of the Products?
Answer: In general, all goods with 12 month-warranty after the shipments .
2. How about the defective rate ?
Answer: Less than 1%.
3. Where can customers get the Product Specification and other datasheets?
Answer: we will send them via email once get the request from the customers.
Our high quality products , competitive price and professional service, be sure to meet your need for all kinds of components. ^_^
