High Speed HUA WEI Communication 4G LTE Module ME909U-521 Mini PCIE

China TOP Electronic Industry Co., Ltd. certification
China TOP Electronic Industry Co., Ltd. certification
Excellent product , good quality , competitive price , professional service , with 10 years cooperation , now we become good friends each other.

—— Ronald-from Boilvia

It is very glad to find TOP as our partner in China , here we can get the best Product and serice , they always put the customer at the first place.

—— Carlos-from Argentina

I am very satisfied with all your service. It is really a good team! with your one-stop solution offer , help us to save much time and money

—— Giancarlo-from Italy

I'm Online Chat Now

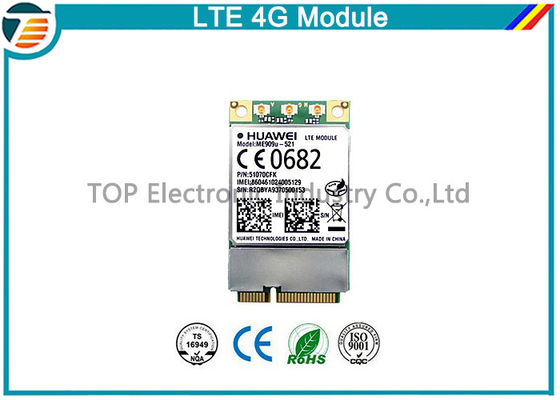

High Speed HUA WEI Communication 4G LTE Module ME909U-521 Mini PCIE

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  High Speed HUA WEI Communication 4G LTE Module ME909U-521 Mini PCIE

Product Details:
Place of Origin: China
Brand Name: HUA WEI
Certification: FCC
Model Number: ME909U-521 nimi pcie
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: 70~73 usd
Packaging Details: Packed in original tray firstly ,then carton, at last Bubble bag for outer packing
Delivery Time: 2-3 working days after received the payment
Payment Terms: T/T, paypal or western Union
Supply Ability: 5,000pcs per month
Detailed Product Description
Product Name: 4G LTE Module Weight: <15g
Size: 51 X 30.4 X 3.4 Mm Temperature Range: -30℃ To 60℃
4 Bands: B1,B2,B3,B5,B7,B8,B20 Voice: PCM Voice
High Light:

wireless communication module

,

m2m wireless module

High Speed HUA WEI Communication 4G LTE Module ME909U-521 Mini PCIE


There are LGA and mini PCIE 2 TYPE



ME909u-521 Mini PCIe is a variant of ME909u-521 with standard mini PCIe form factor. ME909u-521 Mini PCIe supports 100Mbps downlink data rate, includes enhanced features like FOTA,

USSD and Huawei enhanced AT commands.

All Huawei modules comply with the RoHS directive and Regional certification.


Technical details


·         Size Height  30.4mm
Width   51mm
Depth   3.4mm
Weight  <15g
·         Form Factor Mini-PCIe
·         Bands ME909u-521 Mini PCIe:
LTE (FDD) B1/B2/B3/B5/B7/B8/B20
DC-HSPA+/HSPA+/HSPA/UMTS dual-band B1/B2/B5/B8
EDGE/ GPRS/ GSM quad-band 850/900/1800/1900 MHz
·         Data Transfer Rate LTE FDD: Downlink 100 Mbps,
 Uplink 50 Mbps @Bandwidth 20M (CAT3)
DC-HSPA+: Downlink 42 Mbps, Uplink 5.76 Mbps
·         Interface Antenna connector
PCIe interface
USB 2.0 High speed
SIM Card
Reset
·         Power Supply 3.0 V to 3.6 V (3.3 V recommended)
·         Voice PCM Voice
·         Temp Range -30℃ to 60℃
·         GPS/Glonass GPS Standalone
A-GPS
·         Special Features FOTA*(developing)
USSD
IPV6 / IPV4*(developing)
·         Operating System Linux, Android
·         Approvals FCC
RoHS




Bands

ME909u-521 Mini PCIe:
LTE (FDD) B1/B2/B3/B5/B7/B8/B20
DC-HSPA+/HSPA+/HSPA/UMTS dual-band B1/B2/B5/B8
EDGE/ GPRS/ GSM quad-band 850/900/1800/1900 MHz

• LTE (FDD) B1/B2/B3/B5/B7/B8/B20, all bands with diversity
• DC-HSPA+/HSPA+/HSPA/WCDMA B1/B2/B5/B8, all bands
with diversity
• EDGE/GPRS/GSM 1900/1800/900/850 MHz
• GPS/GLONASS: L1
• MIMO
 LTE: DL 2*2 MIMO
 HSPA+/DC-HSPA+: DL 2*2 MIMO
• Output Power
 LTE: +23dBm (3GPP TS 36.101 R8 Class 3)
 WCDMA/HSPA+: +24dBm (Power Class 3)
 EDGE 1900/1800MHz: +26dBm (Power Class E2)
 EDGE 900/850MHz: +27dBm (Power Class E2)
 GSM/GPRS 1900/1800MHz: +30dBm (Power Class 1)
 GSM/GPRS 900/850MHz: +33dBm (Power Class 4)
• USIM (Class B and Class C)
• Power supply
 3.0 V to 3.6V (typical: 3.3V)
• Temperature range
 Operational: -20° C to 60° C
• Dimensions: 51 mm x 30.4 mm x 3.4 mm
• Weight: approx. 12g
• AT commands
 3GPP TS 27.007 and 27.005
 Huawei extended AT command
• OS: Linux, Android

Data Features:


• GPRS: DL 85.6 kbps/UL 85.6 kbps
• EDGE: DL 236.8 kbps/UL 236.8 kbps
• WCDMA CS: DL 64 kbps/UL 64 kbps
• WCDMA PS: DL 384 kbps/UL 384 kbps
• HSPA+: DL 21.6 Mbps/UL 5.76 Mbps
• DC-HSPA+: DL 43.2 Mbps/UL 5.76 Mbps
• LTE FDD: DL 100 Mbps/UL 50 Mbps @20M BW cat3




HUAWEI ME909u-521 Technical Specifications:
* LTE: (B1/B2/B3/B5/B7/B8/B20), for European market
* DC-HSPA+/HSPA+/HSPA/UMTS: B1, B2, B5, B8
* EDGE/GPRS/GSM 1900/1800/900/850 MHz


The other part number from ME909 Family:


HUAWEI ME909u-121 Technical Specifications:
* LTE (B1/B2/B4/B5/B8/B13/B17), for North America market
* DC-HSPA+/HSPA+/HSPA/UMTS: B1, B2, B5, B8
* EDGE/GPRS/GSM 1900/1800/900/850 MHz

HUAWEI ME909u-721 Technical Specifications:
* LTE (B1/B11/B18/B19/B21), for Japan market
* DC-HSPA+/HSPA+/HSPA/UMTS: B1, B2, B5, B8
* EDGE/GPRS/GSM 1900/1800/900/850 MHz


 Introduction:
The Huawei ME909u-521 (ME909E) Mini PCI Express is a LTE module with a 145-pin LGA form factor mounted on a Mini PCI Express board, supporting seven LTE FDD-bands. Quad-band DC-HSPA+ and quad-band GPRS/EDGE for European network coverage is included as fall-back.
This module is part of Huawei's new family of modules, including MU509 (HSDPA), MU609 (HSPA+) and ME909 (LTE) which are all pin-to-pin compatible to enable a clear and easy path for future integration. This makes the integration of any one of these modules very future-proof.
With their ultra-compact design and extended operating temperature range, ME909 and it's siblings are the perfect platform for any M2M application.


Application:

It is a high-quality LTE module designed for industrial-grade M2M applications such as vehicle telematics, asset tracking, mobile payment, industrial router, safety monitor and industrial PDAs.
Widely used in Car tracker, industrial routers, security monitoring  and so on.


Module show:
High Speed HUA WEI Communication 4G LTE Module ME909U-521 Mini PCIE 0

High Speed HUA WEI Communication 4G LTE Module ME909U-521 Mini PCIE 1

High Speed HUA WEI Communication 4G LTE Module ME909U-521 Mini PCIE 2


Product samples:

High Speed HUA WEI Communication 4G LTE Module ME909U-521 Mini PCIE 3

OUR Offer:

communication antennas & modules with wonderful solution, Perfect after-sales service, strict quality testing and competitive price.module brands includes Sierra Wiressless, Simcom, Cinterion, U-blox, Hua wei , ZTE, Holux, Globalsat, GlobaTop, Skylab, Telit, etc.
We're also one of the biggest stocking distributors of active and passive electronic components located in Shen Zhen
