Product Details:
Payment & Shipping Terms:
|
| Product Name: | LTE 4G Module | PIN: | 52 PIN |
|---|---|---|---|
| Carriers Approved: | Vodafone, Telstra | Voice Support: | No |
| Downlink: | 100Mbps | Uplink: | 50Mbps |
| High Light: | wireless communication module,Sierra Wireless Module |
||

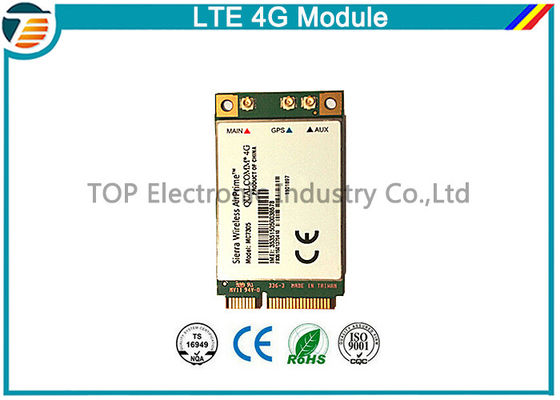

Multiple Cellular Embedded 4G LTE Module MC7305 MINI PCI-E Card
Overview:
is the new 4G module from Sierra Wireless that support 4G LTE Band 1/3/7/8/20. The 4G module MC7305 provides LTE, DC-HSPA+, HSPA+, HSDPA, HSUPA, WCDMA, GSM, GPRS, EDGE, and GNSS
Technical Specifications:
* Chipset: MDM 9215 Qualcomm
* Form Factor: PCIe M.2
* Pins: 52-pin
* Technologies: LTE,HSPA+,UMTS,GPRS(Class 12),GSM,EDGE,HSDPA
* Frequency bands
- LTE: 2600/1800/2100/900/800 MHz
- WCDMA: 850/900/1900/2100 MHz
- GPRS/EDGE: 850/900/1800/1900 MHz
- GPS: 1575.42MHz
- GLONASS: 1602MHz
* Data rates:
- Downlink 100Mbps (20MHz bandwidth), 50mbps (10MHz bandwidth)
- uplink 50Mbps (20MHz bandwidth), 25mbps (10MHz bandwidth)
* MIMO Support
* Temperature: -25 ℃ to 60 ℃
* Certifications: CE, GCF, NCC (Taiwan)
* Carriers Approved: Vodafone, Telstra
* Voice Support: None
|
GPS Support: |
Yes |
|
Interfaces: |
|
|
USB |
|
|
SIM Connector |
Y |
|
Connectorized |
Y |
|
Serial Interfaces |
USB 2.0 High Speed |
|
Number GPIO Ports |
6 |
|
Number PWM Ports |
0.0 |
|
Number ADC Ports |
0.0 |
|
Number Flashing LED ports |
1 |
|
Supply Voltage (V) |
3.0 to 3.6, nominal 3.3 |
|
Size (mm) |
51 x 30 x 2.75 |
|
RF Connector |
U.FL |
|
Operating Temperature (°C) |
-25 to +60 |
|
Audio Port |
No |
|
Mounting |
Connectorized |
|
Main Connector |
Mini PCIe |
Features
- LTE module for Australian frequencies
- Falls back to all 3G networks
- Optimised for low power consumption
- Support for Linux and Windows 7 and Windows 8
- Antenna diversity for improved fringe performance
- Enhanced location services (A-GPS, GPS Xtra, GPS, G
Modem Information:
• LTE / DC-HSPA+ / HSPA+ / HSPA / UMTS (WCDMA) / EDGE / GPRS operation
• Multiple (up to 16) cellular packet data profiles
• Traditional modem COM port support for AT commands
• USB suspend / resume
• Sleep mode for minimum idle power draw
• SIM application tool kit with proactive SIM commands
• Enhanced Operator Name String (EONS)
• Automatic GPRS attach at power-up
• GPRS detach
• GPRS detach only
• Combined GPRS / IMSI detach; MS-initiated and network-initiated detach
• Mobile-originated PDP context activation / deactivation
• Support QoS profile
accessories:
