ZX62-B-5PA(33) Micro USB B 5-pin compact SMT, rugged shell high-retention 10k cycles ideal for portable devices

ZX62-B-5PA(33) Micro USB B 5-pin compact SMT, rugged shell high-retention 10k cycles ideal for portable devices

Features

• Number of pins: 5 (standard Micro USB B pinout)

• Mounting type: SMT contacts + through-hole shell anchors – strong PCB retention

• Mating cycles: 10,000 times – high durability for frequent use

• Current rating: 1.0 A per pin (standard USB 2.0)

• Voltage rating: 30 V AC/DC

• Operating temperature: -30°C to +85°C

• Low profile: 2.2 mm seated height – suitable for thin devices

• Metal shell with grounding tabs: provides robust ESD and EMI protection

• Compliant with USB 2.0 standard – supports up to 480 Mbps data transfer

Applications

• Mobile phones and tablets – charging and sync ports

• Portable power banks – input/output charging port

• Bluetooth headsets, speakers, and wearables – compact device charging

• Medical and handheld devices – diagnostic tools, barcode scanners

• IoT sensors and smart home devices – firmware updates and power input

• GPS units and digital cameras – data transfer and battery charging

Description

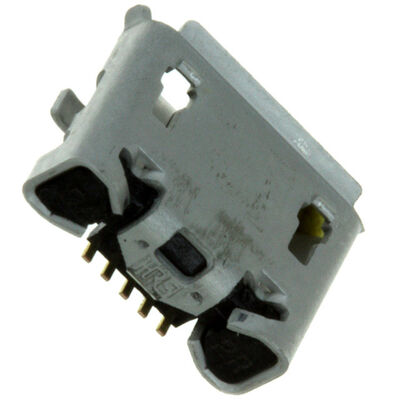

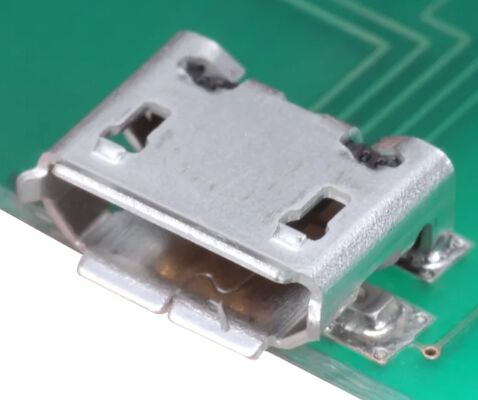

The ZX62-B-5PA(33) is a Micro USB Type-B receptacle connector designed for compact, high-reliability portable electronics. It features a 5-pin, surface-mount (SMT) design with a rugged metal shell that enhances mechanical strength and EMI shielding. The connector includes a through-hole mounting option for the shell tabs, providing superior retention force on the PCB. Rated for 10,000 mating cycles, it delivers exceptional durability for daily plug/unplug applications. Its low-profile design (2.2 mm height) makes it ideal for space-constrained devices.
