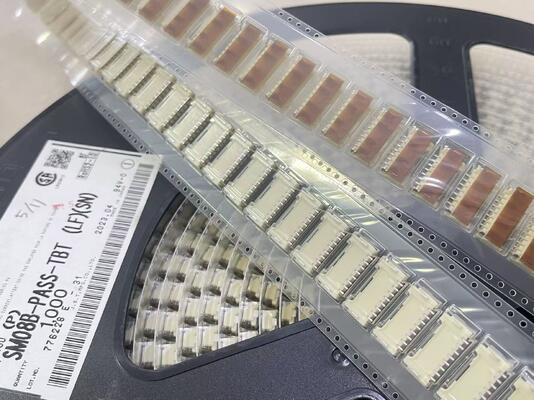

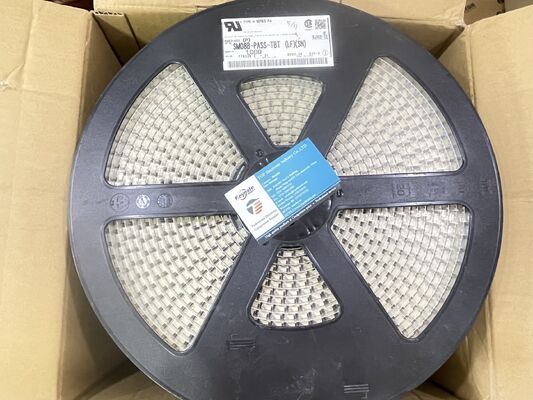

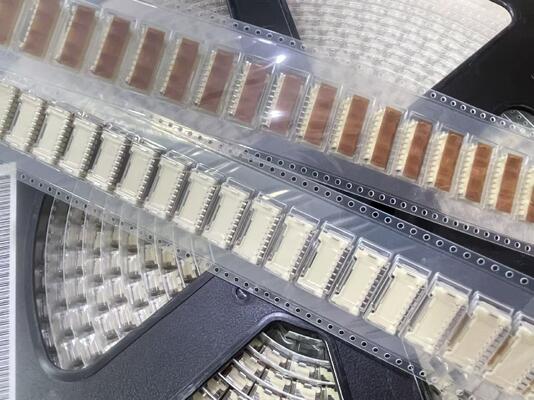

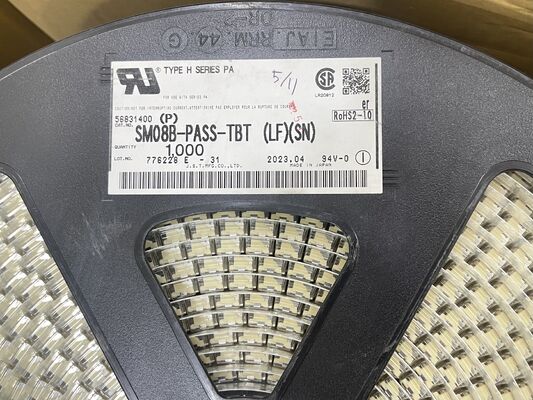

SM08B-PASS-TBT Compact robust secure high-retention solder-free versatile and reliable – ideal for tight spaces demanding stable PCB connections

SM08B-PASS-TBT Compact robust secure high-retention solder-free versatile and reliable – ideal for tight spaces demanding stable PCB connections

Features

• 8 contacts with 2.0 mm pitch – space-saving design

• Side-locking latch – audible click, high vibration resistance

• SMT + through-hole anchor tabs – extra solder retention on PCB

• Top-entry (vertical) orientation – ideal for tight enclosures

• Accepts pre-crimped wires – no soldering on PCB required

• Current rating: up to 3 A per pin

• Operating temperature: -25°C to +85°C

Applications

• LED lighting modules (indoor/outdoor strips or panels)

• Industrial control panels – where vibration is present

• Consumer electronics (smart home sensors, displays)

• Automotive interior devices (non-engine bay)

• Prototyping & field servicing – easy wire replacement without desoldering

Description

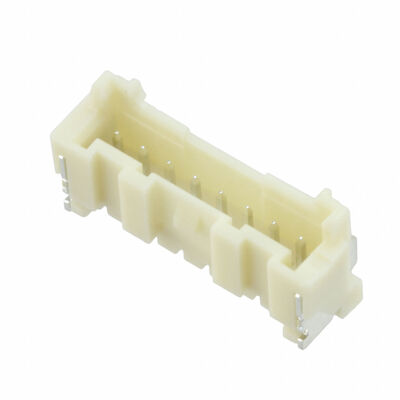

The SM08B-PASS-TBT is a 8-position, top-entry SMT wire-to-board connector designed for secure, compact, and field-installable connections. It features a side-locking latch mechanism for high retention force, and its through-board solder tabs (SMT + additional through-hole anchor) ensure robust PCB mounting. This connector supports 26–28 AWG wires with pre-crimped contacts, enabling solder-free assembly and easy maintenance.

INFORMATION

Drawing
