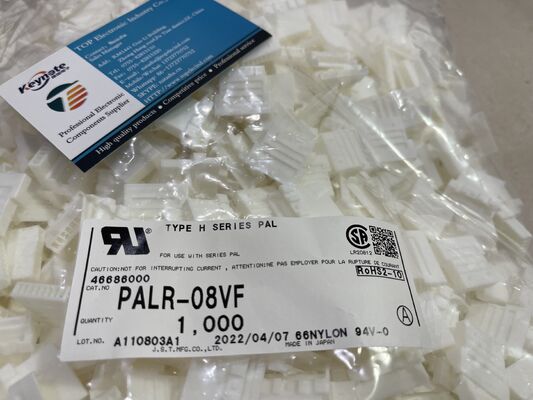

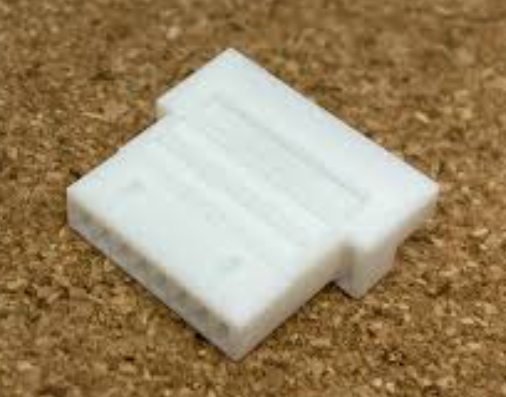

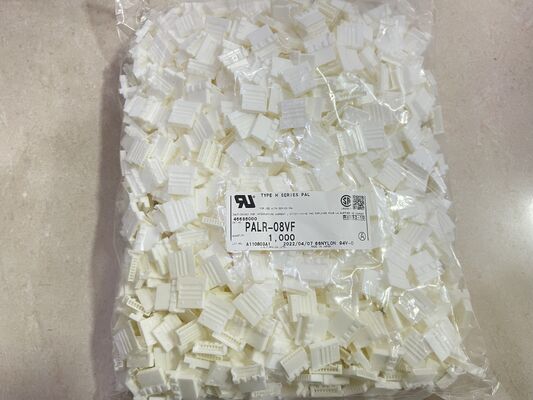

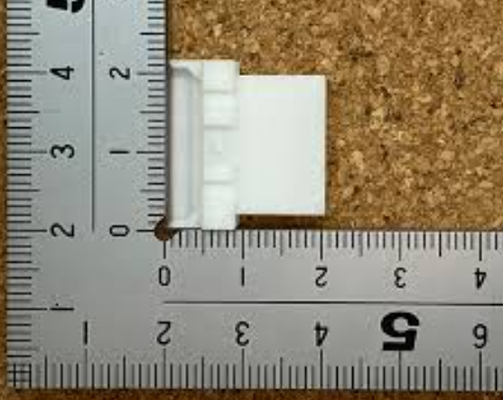

PALR-08VF 8 Position 2.0mm Pitch Connector Housing PA Series Receptacle Crimp Termination Positive Lock Compact Design 3A Rating 100V AC for Wire-to-Board Applications

PALR-08VF 8 Position 2.0mm Pitch Connector Housing PA Series Receptacle Crimp Termination Positive Lock Compact Design 3A Rating 100V AC for Wire-to-Board Applications

Features

• 8 positions with 2.0mm centerline spacing

• Receptacle housing for crimp terminal termination

• Positive lock mechanism for secure mating retention and audible click

• Compact design for high-density applications

• Current rating: 3A per contact

• Voltage rating: 100V AC

• Operating temperature range: -25°C to +85°C

• Housing material: UL 94V-0 rated nylon

• Accepts SPAL-001T-P0.5 crimp terminals (28-26 AWG)

Applications

• Consumer electronics (TVs, monitors, audio equipment)

• Office automation equipment (printers, copiers, scanners)

• Industrial control systems and instrumentation

• LED lighting and display modules

• Home appliances (microwaves, washing machines, refrigerators)

• Battery-powered devices and portable electronics

• Medical equipment and diagnostic devices

• General-purpose wire-to-board connections requiring compact design

Description

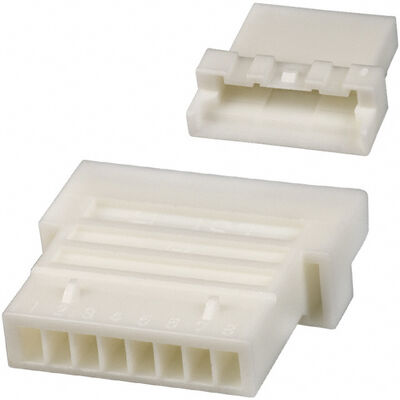

The PALR-08VF is an 8-position, 2.0mm pitch connector housing from JST, part of the PA series. It is a receptacle housing designed for crimp termination, featuring a positive lock mechanism for secure mating with PA series headers. The compact design makes it suitable for high-density wire-to-board connections in space-constrained applications.
