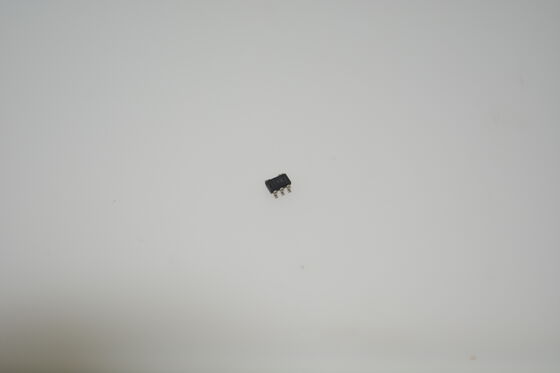

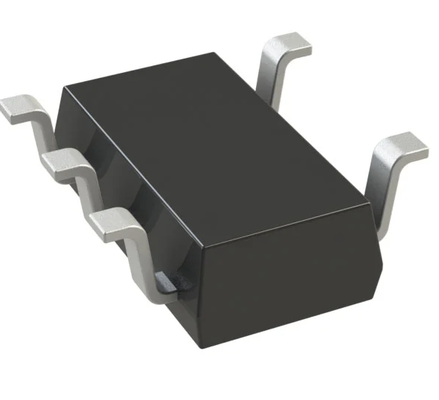

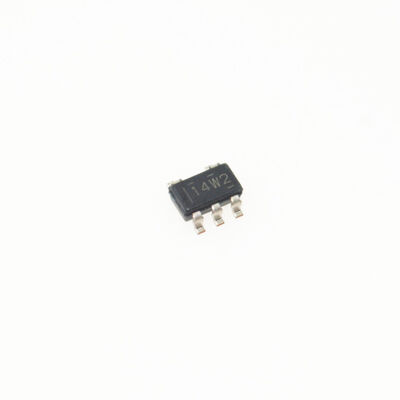

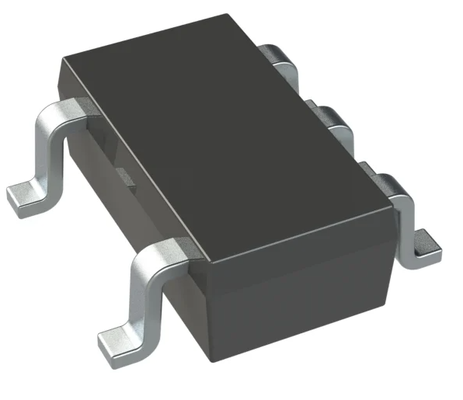

TLV6001IDBVR 1.8V to 5.5V Rail-to-Rail Op Amp Low Power 10µA 1kHz GBW Micro SOT-23 Package For Battery-Powered Sensors and Portable Devices

MAX3232ESE+T 3.0V to 5.5V RS-232 Transceiver 2 Drivers/2 Receivers ±15kV ESD Protection Low Power 250kbps Data Rate For Battery-Powered and Industrial Systems

Features

• Precision Amplifiers for Cost-Sensitive Systems

• LowQuiescent Current: 75 µA/ch

• Supply Range: 1.8 V to 5.5 V

• Input Voltage Noise Density: 28 nV/√Hz at 1 kHz

• Rail-to-Rail Input and Output

• Gain Bandwidth: 1 MHz

• LowInput Bias Current: 1 pA

• LowOffset Voltage: 0.75 mV

• Unity-Gain Stable

• Internal RF and EMI Filter

• Extended Temperature Range:–40°C to +125°C

Applications

• Industrial and Consumer Electronics

• Portable Equipment

• Portable Blood Glucose Systems

• SmokeDetectors

• White Goods

• Power Banks

Description

The TLV600x family of single-, dual-, and quad channel operational amplifiers is specifically designed for general-purpose applications. Featuring rail-to-rail input and output (RRIO) swings, low quiescent current (75 μA, typical), wide bandwidth (1 MHz) and low noise (28 nV/√Hz at 1 kHz), this family is attractive for a variety of applications that require a good balance between cost and performance, such as consumer electronics, smoke detectors, and white goods. The low-input-bias current (±1.0 pA, typical) enables the TLV600x to be used in applications with megaohm source impedances.

The robust design of the TLV600x provides ease-of use to the circuit designer: unity-gain stability with capacitive loads of up to 150 pF, integrated RF/EMI rejection filter, no phase reversal in overdrive conditions, and high electrostatic discharge (ESD) protection (4-kV HBM).

The devices are optimized for operation at voltages as low as 1.8 V (±0.9 V) and up to 5.5 V (±2.75 V), and are specified over the extended temperature range of–40°C to +125°C.

The single-channel TLV6001 is available in SC70-5 and SOT23-5 packages. The dual-channel TLV6002 is offered in SOIC-8 and VSSOP-8 packages, and the quad-channel TLV6004 is offered in a TSSOP-14 package
