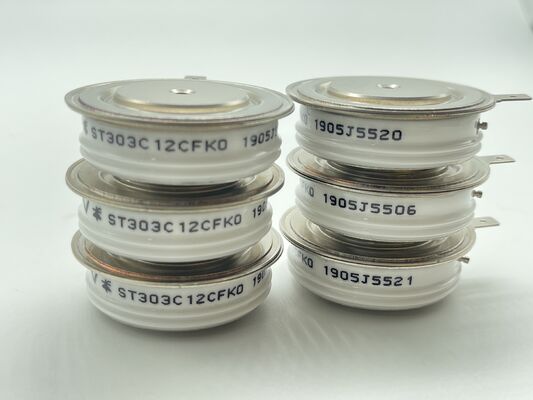

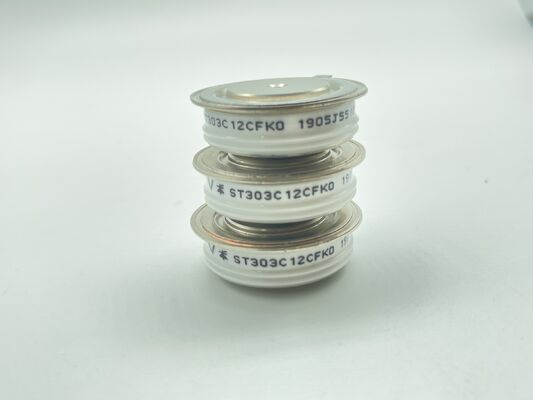

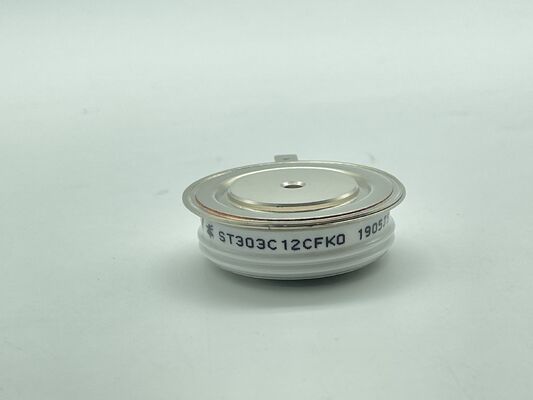

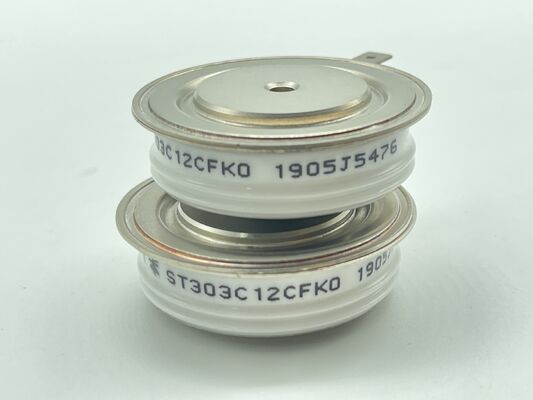

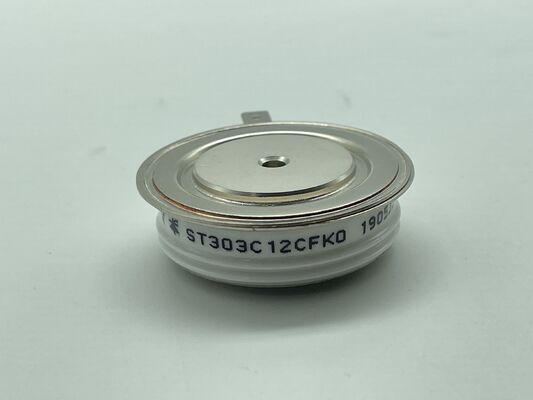

ST303C12CFK0 1200V 300A Half-Bridge Module Low Vce(sat) Low Loss Short Circuit Ruggedness Integrated NTC For Motor Drives and Industrial Inverters

Large Image : ST303C12CFK0 1200V 300A Half-Bridge Module Low Vce(sat) Low Loss Short Circuit Ruggedness Integrated NTC For Motor Drives and Industrial Inverters

Product Details:

Place of Origin:	China
Brand Name:	Vishay
Certification:	CE, GCF, ROHS
Model Number:	VS-ST303C12CFK0

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Packed in original tray firstly ,then carton, at last Bubble bag for outer packing
Delivery Time:	3-5 working days after received the payment
Payment Terms:	T/T,Western Union,
Supply Ability:	1000pcs per month

Contact Now

Detailed Product Description

Function:	Step-Up, Step-Down	Output Configuration:	Positive Or Negative
Topology:	Buck, Boost	Output Type:	Adjustable
Number Of Outputs:	1
Highlight:	1200V 300A half-bridge module , low loss half-bridge module , rugged half-bridge module with NTC

ST303C12CFK0 1200V 300A Half-Bridge Module Low Vce(sat) Low Loss Short Circuit Ruggedness Integrated NTC For Motor Drives and Industrial Inverters

Features

Half-Bridge IGBT Module
Power Rating: 1200V / 300A
Low Vce(sat) (Low Conduction Losses)
Optimized Switching Losses
High Short-Circuit Ruggedness (SCWT)
Integrated NTC Temperature Sensor
Low-Inductance Design
Industrial Grade Robustness

Applications

Industrial Motor Drives: For pumps, fans, compressors, and conveyor systems.
General-Purpose Industrial Inverters and Frequency Converters.
Uninterruptible Power Supplies (UPS): Three-phase systems.
Welding Equipment Power Supplies.

Description

The ST303C12CFK0 is a robust half-bridge IGBT module designed for high-performance industrial motor drives and power conversion applications. It features a 1200V blocking voltage and a 300A current rating, delivering reliable power for medium to high-power systems. The module utilizes advanced IGBT and freewheeling diode technology to achieve a low collector-emitter saturation voltage (Vce(sat)) for high efficiency during conduction and optimized switching characteristics to manage losses. It is engineered for industrial ruggedness, offering a high level of short-circuit withstand capability and integrating a negative temperature coefficient (NTC) thermistor for precise temperature monitoring, ensuring system protection and reliability.

Technical Specifications

category	Discrete semiconductor products thyristors SCR
manufacturer	Vishay General Semiconductor - Diodes Division
series	-
Packaging	Bulk
Part status	Discontinued
Voltage - Fault state	1.2 kV
Voltage - Gate Trigger (Vgt) (Max)	3 V
Current - Gate Trigger (IGT) (Max)	200 mA
Voltage - On-State (Vtm) (Max)	2.16 V
Current - On-State (It (AV)) (Max)	620 A
Current - Normal State (It (RMS)) (Max)	1180 A
Current - Hold (Ih) (max)	600 mA
Current - Fault State (Max)	50 mA
Current - Non-repeating surge 50, 60Hz (Itsm)	7950A,8320A
SCR type	Standard recovery
Operating temperature	-40°C ~ 125°C
Mounting type	Clamp style
Package/Enclosure	TO-200AB,E-PUK
Vendor device packages	TO-200AB(E-Puk)
Base product number	ST303

Drawing
