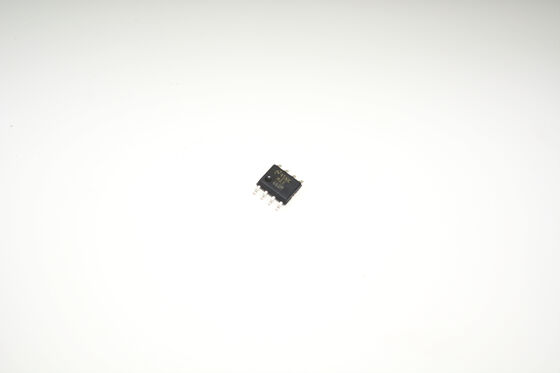

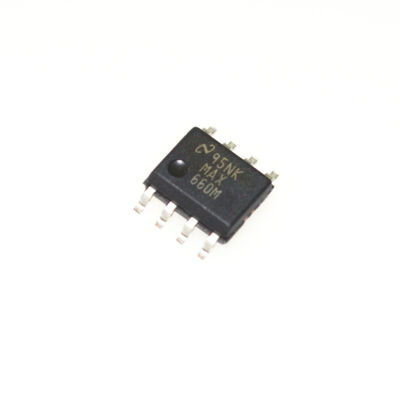

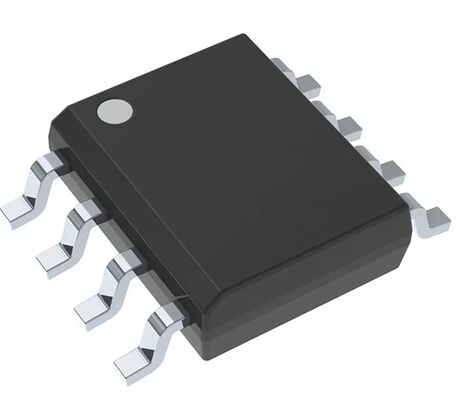

MAX660MX 5V 60mA Charge Pump DC-DC Inverter/Voltage Doubler SOIC-8 Package 99% Voltage Conversion Efficiency No Inductors Required For Op-Amp and LCD Bias Supplies

MAX660MX 5V 60mA Charge Pump DC-DC Inverter/Voltage Doubler SOIC-8 Package 99% Voltage Conversion Efficiency No Inductors Required For Op-Amp and LCD Bias Supplies

andnbsp;

Features

​• Inverts or Doubles Input Supply Voltage

• Narrow SO-8 Package

• 6.5-Ω Typical Output Resistance

• 88%Typical Conversion Efficiency at 100 mA

• Selectable Oscillator Frequency: 10 kHz/80 kHz

andnbsp;

Applications

• Laptop Computers

• Cellular Phones

• Medical Instruments

• Operational Amplifier Power Supplies

• Interface Power Supplies

• Handheld Instruments

andnbsp;

Description

The MAX660 CMOS charge-pump voltage converter is a versatile unregulated switched-capacitor inverter or doubler. Operating from a wide 1.5-V to 5.5-V supply voltage, the MAX660 uses two low-cost capacitors to provide 100 mA of output current without the cost, size and EMI related to inductor based converters. With an operating current of only 120 µA and operating efficiency greater than 90% at most loads, the MAX660 provides ideal performance for battery-powered systems. MAX660 devices can be operated directly in parallel to lower output impedance, thus providing more current at a given voltage.

The FC (frequency control) pin selects between a nominal 10-kHz or 80-kHz oscillator frequency. The oscillator frequency can be lowered by adding an external capacitor to the OSC pin. Also, the OSC pin may be used to drive the MAX660 with an external clock up to 150 kHz. Through these methods, output ripple frequency and harmonics may be controlled.

Additionally, the MAX660 may be configured to divide a positive input voltage precisely in half. In this mode, input voltages as high as 11 V may be used.

andnbsp;

INFORMATION

andnbsp;

Drawing

Our advantage :phones, PDAand#39;s, notebook comput.ers

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

andnbsp;

be sure to meet your need for all kinds of components. ^_^


Product List
Supply a Series of Electronic Components, full range of semiconductors, active andamp; passive Components.We can help you to get all for bom of the PCB,IN a word, you can get one-stop solution here,


The offers including:
Integrated Circuit, Memory ICs, Diode, Transistor , Capacitor, Resistor, Varistor, Fuse, Trimmer andamp; Potentiometer, Transformer, Battery, Cable, Relay, Switch, Connector, Terminal Block, Crystal andamp; Oscillator, Inductor, Sensor, Transformer, IGBT Driver, LED,LCD, Convertor, PCB (Printed Circuit Board),PCBA (PCB Assembly)

Strong in Brand:
Microchip, MAX, AD, TI, ATMEL, ST, ON, NS, Intersil, Winbond, Vishay, ISSI, Infineon, NEC, FAIRCHILD, OMRON,YAGEO, TDK, etc
