BCX5416TA 60V 1A NPN Transistor with High hFE 100-250 625mW Power Low Noise SOT-89-3 Package Halogen-Free AEC-Q101 Qualified Tape & Reel Packaging

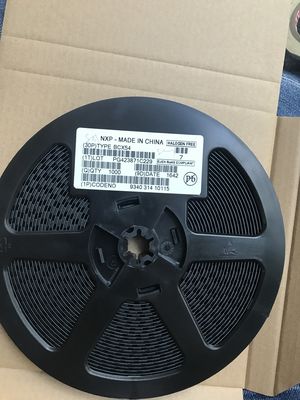

Large Image : BCX5416TA 60V 1A NPN Transistor with High hFE 100-250 625mW Power Low Noise SOT-89-3 Package Halogen-Free AEC-Q101 Qualified Tape & Reel Packaging

Product Details:

Place of Origin:	China
Brand Name:	NXP Semiconductors
Certification:	CE, GCF, ROHS
Model Number:	BCX5416TA

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Packed in original tray firstly ,then carton, at last Bubble bag for outer packing
Delivery Time:	3-5 working days after received the payment
Payment Terms:	T/T, Western Union,
Supply Ability:	1000pcs per month

Contact Now

Detailed Product Description

Function:	Step-Up, Step-Down	Output Configuration:	Positive Or Negative
Topology:	Buck, Boost	Output Type:	Adjustable
Number Of Outputs:	1
Highlight:	60V 1A NPN transistor , high hFE low noise transistor , AEC-Q101 qualified SOT-89-3 transistor

BCX5416TA 60V 1A NPN Transistor with High hFE 100-250 625mW Power Low Noise SOT-89-3 Package Halogen-Free AEC-Q101 Qualified Tape & Reel Packaging

Features

• BVCEO > 45V, 60V & 80V

• IC = 1A Continuous Collector Current

• ICM = 2A Peak Pulse Current

• Low Saturation Voltage VCE(sat) < 500mV @ 0.5A

• Gain Groups 10 and 16

• Epitaxial Planar Die Construction

• Complementary PNP Types: BCX51, 52, and 53

• Totally Lead-Free & Fully RoHS Compliant

• Halogen and Antimony Free. “Green” Device

Applications

• Medium power switching or amplification applications

• AF driver and output stages

Description

The BCX5416TA is a high-performance NPN bipolar junction transistor designed for general-purpose amplification and switching applications. Housed in a compact SOT-89-3 surface-mount package, it offers an excellent combination of high voltage capability, current gain and power dissipation, making it suitable for various analog and power management circuits.

INFORMATION

Category	Discrete Semiconductor Products Transistors Bipolar (BJT) Single Bipolar Transistors
Mfr	Diodes Incorporated
Series	-

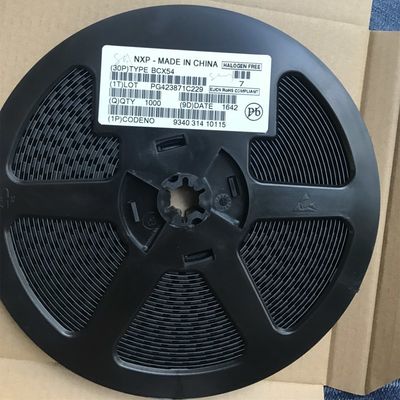

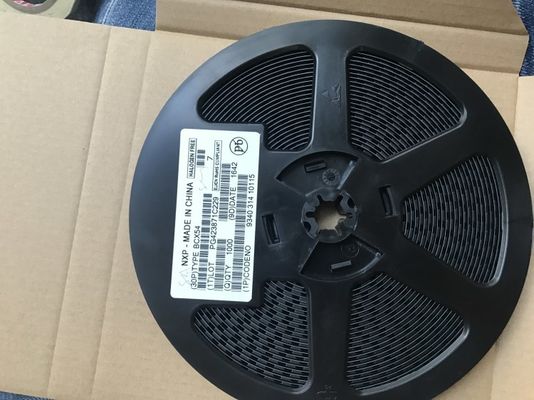

Packaging	Tape & Reel (TR) Cut Tape (CT) Digi-Reel®
Part Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	1 A
Voltage - Collector Emitter Breakdown (Max)	45 V
Vce Saturation (Max) @ Ib, Ic	500mV @ 50mA, 500mA
Current - Collector Cutoff (Max)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 150mA, 2V
Power - Max	1 W
Frequency - Transition	150MHz
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-243AA

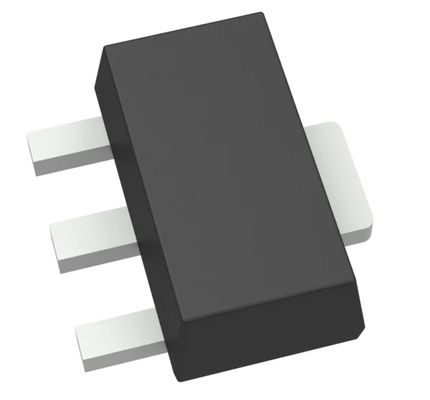

Supplier Device Package	SOT-89-3
Base Product Number	BCX5416

Drawing

Our advantage :phones, PDA's, notebook comput.ers

High quality products --- our offers are 100% new and original, ROHS
Competitive price --- good Purchase channels with good price.
Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
Adequate inventory --- With the support of our strong Purchasing team,
Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

be sure to meet your need for all kinds of components. ^_^
