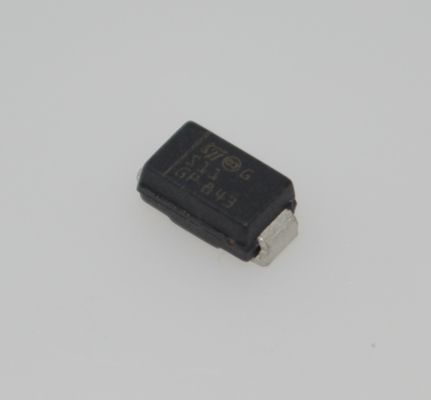

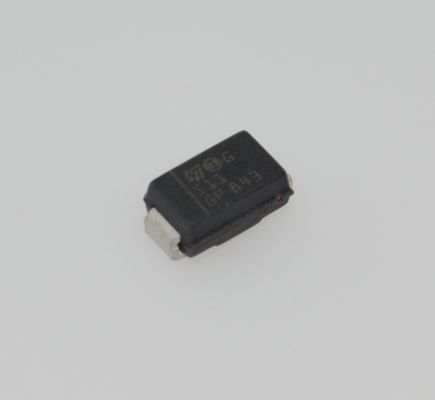

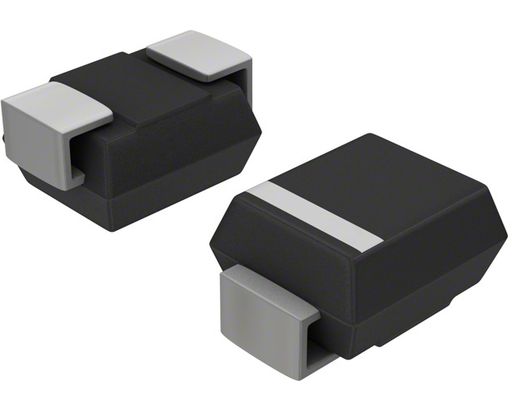

STPS1H100A 1A 100V Power Schottky Rectifier Very Low Forward Voltage High Surge Current Capability AEC-Q101 Qualified Halogen Free ESD Protection -65 to 175°C TJ SOD-123FL Package

STPS1H100A 1A 100V Power Schottky Rectifier Very Low Forward Voltage High Surge Current Capability AEC-Q101 Qualified Halogen Free ESD Protection -65 to 175anddeg;C TJ SOD-123FL Package

andnbsp;

Features

andbull; Negligible switching losses

andbull; High junction temperature capability

andbull; Low leakage current

andbull; Good trade off between leakage current and forward voltage drop

andbull; Avalanche capability specified

andbull; ECOPACK2 halogen-free component

andnbsp;

Applications

1:Automotive Electronics

Explanation: As it is AEC-Q101 qualified, it is an ideal choice for automotive applications.

Specific Applications: DC-DC converters in Engine Control Units (ECUs), Body Control Modules (BCMs), lighting systems, infotainment systems, and low-voltage auxiliary power supplies in electric/hybrid vehicles.

2:Industrial Electronics

Explanation: Its wide junction temperature range allows it to adapt to harsh industrial environments.

Specific Applications: Power supplies for Programmable Logic Controllers (PLCs), sensors, motor drive control boards, and low-voltage power supplies in industrial automation equipment.

3:Consumer Electronics andamp; Computing

Explanation: Its high efficiency and small package make it suitable for space-constrained devices that focus on energy efficiency.

Specific Applications: Power adapters for laptops, internal DC-DC power supplies in desktops, server power supplies, and power boards for TVs and gaming consoles.

4:Communication Equipment

Explanation: Its fast switching characteristic is crucial for efficient Switch-Mode Power Supplies (SMPS).

Specific Applications: Power units for network switches, routers, base stations, and other telecommunications infrastructure.

andnbsp;

Description

Schottky rectifiers designed for high frequency miniature switched mode power supplies such as adaptors and on board DC/DC converters.

Packaged in SMA, SMA Flat, SMA Flat Notch,or SMB, this diode is ideal for use in lighting and telecom power applications.

andnbsp;

INFORMATION

andnbsp;

Drawing

Our advantage :phones, PDAand#39;s, notebook comput.ers

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

andnbsp;

be sure to meet your need for all kinds of components. ^_^
