PRTR5V0U4D125 ESD Protection Diode 5V Clamping Ultra-Low 0.6pF Capacitance 20kV ESD Rating IEC 61000-4-2 Compliant 2-Line Bidirectional SOD-923 Miniature Package for HighSpeed Interfaces

PRTR5V0U4D125 ESD Protection Diode 5V Clamping Ultra-Low 0.6pF Capacitance 20kV ESD Rating IEC 61000-4-2 Compliant 2-Line Bidirectional SOD-923 Miniature Package for HighSpeed Interfaces

andnbsp;

Features

andbull; ESD protection of four high-speed data lines or high-frequency signal lines

andbull; Ultra low input/output to ground capacitance: C(I/O-GND) = 1 pF

andbull; ESD protection up to 8 kV

andbull; IEC 61000-4-2, level 4 (ESD)

andbull; Very low clamping voltage due to an integrated additional ESD protection diode

andbull; Very low reverse current

andbull; Small SMD plastic package

andnbsp;

Applications

andbull; USB 2.0 interfaces

andbull; Digital Video Interface (DVI)

andbull; High-Definition Multimedia Interface (HDMI)

andbull; Mobile phones

andbull; Digital cameras

andbull; WAN/LAN systems

andbull; PC, notebooks, printers and other PC peripherals

andnbsp;

Description

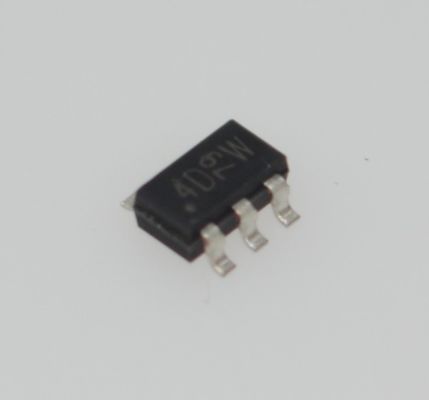

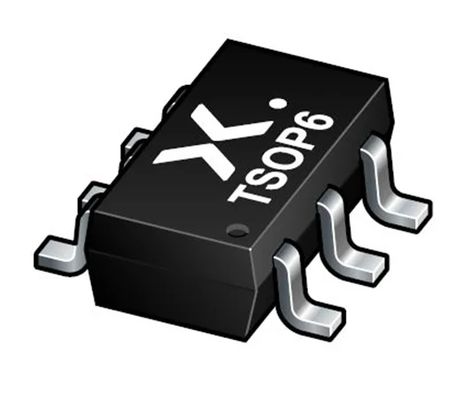

Product data sheet Ultra low capacitance quadruple rail-to-rail ElectroStatic Discharge (ESD) protection device in an SOT457 (SC-74) small Surface-Mounted Device (SMD) plastic package.

The device is designed to protect four high-speed data lines or high-frequency signal lines from the damage caused by ESD and other transients.

PRTR5V0U4D integrates four ultra low capacitance rail-to-rail ESD protection channels and one additional ESD protection diode to ensure signal line protection even if no supply voltage is available.

andnbsp;

INFORMATION

andnbsp;

Drawing

Our advantage :phones, PDAand#39;s, notebook comput.ers

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

andnbsp;

be sure to meet your need for all kinds of components. ^_^
