Ultra-Low Vf PMEG6030EVPX 60V 3A Schottky Barrier Rectifier AEC-Q101 Qualified High Efficiency <1µA Low IR Halogen-Free SOD128 Flat Plastic Package for Automotive and Industrial

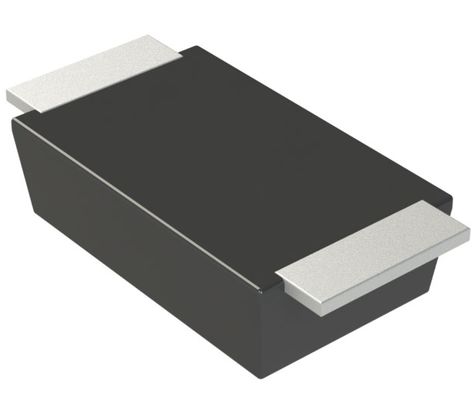

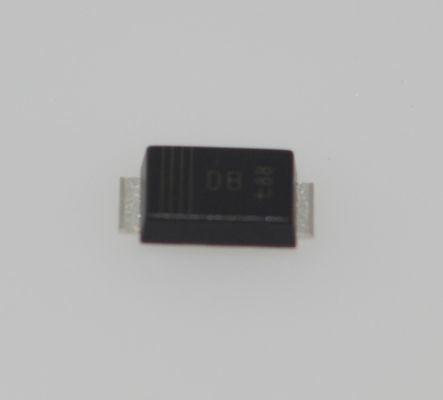

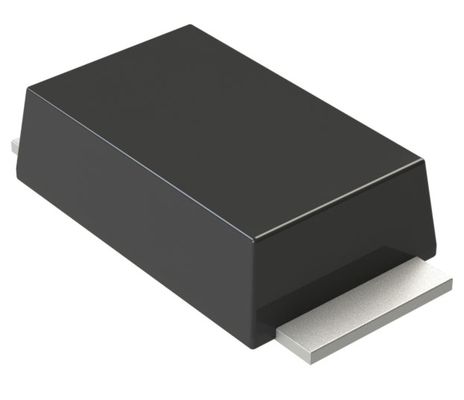

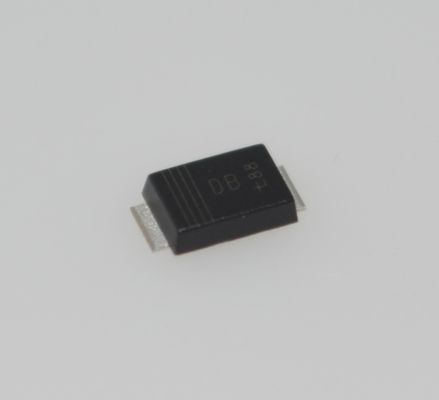

Large Image : Ultra-Low Vf PMEG6030EVPX 60V 3A Schottky Barrier Rectifier AEC-Q101 Qualified High Efficiency <1µA Low IR Halogen-Free SOD128 Flat Plastic Package for Automotive and Industrial

Product Details:

Place of Origin:	China
Brand Name:	Nexperia
Certification:	CE, GCF, ROHS
Model Number:	PMEG6030EVPX

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Packed in original tray firstly ,then carton, at last Bubble bag for outer packing
Delivery Time:	3-5 working days after received the payment
Payment Terms:	T/T, Western Union,
Supply Ability:	1000pcs per month

Contact Now

Detailed Product Description

Function:	Step-Up, Step-Down	Output Configuration:	Positive Or Negative
Topology:	Buck, Boost	Output Type:	Adjustable
Number Of Outputs:	1
Highlight:	60V 3A Schottky barrier rectifier , AEC-Q101 qualified automotive diode , low Vf SOD128 flat package

Ultra-Low Vf PMEG6030EVPX 60V 3A Schottky Barrier Rectifier AEC-Q101 Qualified High Efficiency andlt;1andmicro;A Low IR Halogen-Free SOD128 Flat Plastic Package for Automotive andamp; Industrial

andnbsp;

Features

andbull; Average forward current: IF(AV) andle; 3 A

andbull; Reverse voltage: VR andle; 60 V

andbull; Low forward voltage

andbull; High power capability due to clip-bonding technology

andbull; Small and flat lead SMD plastic package

andbull; High temperature Tj andle; 175 anddeg;C

andbull; Suitable for both reflow and wave soldering

andnbsp;

Applications

andbull; Low voltage rectification

andbull; High efficiency DC-to-DC conversion

andbull; Switch mode power supply

andbull; Reverse polarity protection

andbull; Low power consumption application

andnbsp;

Description

Planar Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a SOD128 small and flat lead Surface-Mounted Device (SMD) plastic package.

andnbsp;

INFORMATION

Category	Discrete Semiconductor Products Diodes Rectifiers Single Diodes	andnbsp;
Mfr	Nexperia USA Inc.	andnbsp;
Series	-	andnbsp;
Packaging	Tape andamp; Reel (TR) Cut Tape (CT) Digi-Reelandreg;	andnbsp; andnbsp; andnbsp;
Part Status	Active	andnbsp;
Technology	Schottky	andnbsp;
Voltage - DC Reverse (Vr) (Max)	60 V	andnbsp;
Current - Average Rectified (Io)	3A	andnbsp;
Voltage - Forward (Vf) (Max) @ If	475 mV @ 3 A	andnbsp;
Speed	Fast Recovery =andlt; 500ns, andgt; 200mA (Io)	andnbsp;
Reverse Recovery Time (trr)	20 ns	andnbsp;
Current - Reverse Leakage @ Vr	400 andmicro;A @ 60 V	andnbsp;
Capacitance @ Vr, F	575pF @ 1V, 1MHz	andnbsp;
Mounting Type	Surface Mount	andnbsp;
Package / Case	SOD-128	andnbsp;
Supplier Device Package	SOD-128/CFP5	andnbsp;
Operating Temperature - Junction	175anddeg;C (Max)	andnbsp;
Base Product Number	PMEG6030

andnbsp;

Drawing
