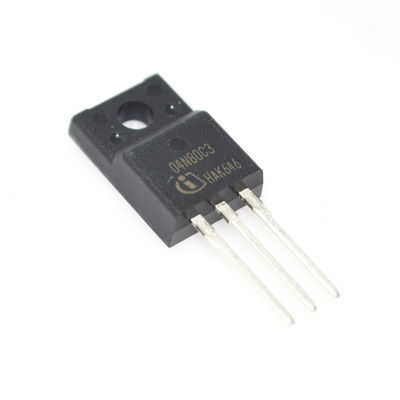

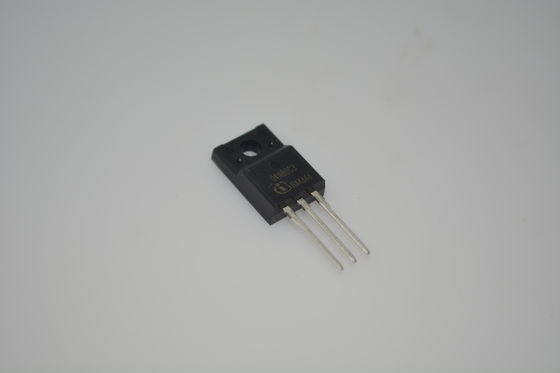

SPA04N80C3XKSA1 Power MOSFET 800V Ultra-High Voltage 4A Current Low Rds(on) Super Junction Technology Low Gate Charge High Efficiency Halogen-Free Robust Performance for SMPS and Industrial Drives

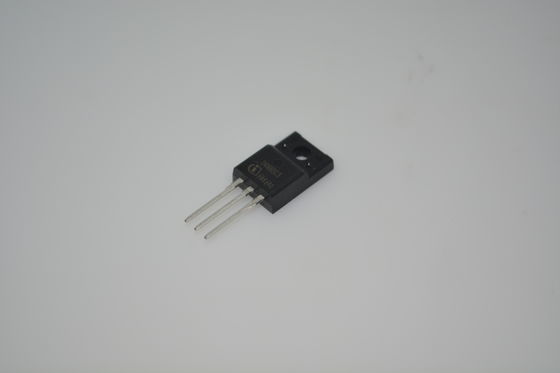

Large Image : SPA04N80C3XKSA1 Power MOSFET 800V Ultra-High Voltage 4A Current Low Rds(on) Super Junction Technology Low Gate Charge High Efficiency Halogen-Free Robust Performance for SMPS and Industrial Drives

Product Details:

Place of Origin:	China
Brand Name:	Infineon
Certification:	CE, GCF, ROHS
Model Number:	SPA04N80C3XKSA1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Packed in original tray firstly ,then carton, at last Bubble bag for outer packing
Delivery Time:	3-5 working days after received the payment
Payment Terms:	T/T, Western Union,
Supply Ability:	1000pcs per month

Contact Now

Detailed Product Description

Function:	Step-Up, Step-Down	Output Configuration:	Positive Or Negative
Topology:	Buck, Boost	Output Type:	Adjustable
Number Of Outputs:	1
Highlight:	800V Power MOSFET for SMPS , Super Junction MOSFET low Rds(on) , Halogen-Free Power MOSFET industrial drives

SPA04N80C3XKSA1 Power MOSFET 800V Ultra-High Voltage 4A Current Low Rds(on) Super Junction Technology Low Gate Charge High Efficiency Halogen-Free Robust Performance for SMPS andamp; Industrial Drives

andnbsp;

Features

New revolutionary high voltage technology

Extreme dv/dt rated

High peak current capability

Qualified according to JEDEC1) for target applications

Pb-free lead plating; RoHS compliant

Ultra low gate charge

Ultra low effective capacitances

Fully isolated package (2500 VAC; 1 minute)

andnbsp;

Applications

1:Switch Mode Power Supplies (SMPS)

2:Power Factor Correction (PFC) circuits

3:Industrial motor drives and controls

4:Lighting ballasts and LED drivers

5:Renewable energy systems

andnbsp;

Description

The SPA04N80C3XKSA1 is a high-voltage N-channel power MOSFET utilizing advanced super junction technology, delivering exceptional efficiency and reliability for demanding power conversion applications.

andnbsp;

INFORMATION

Category	Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs	andnbsp;
Mfr	Infineon Technologies	andnbsp;
Series	CoolMOSandtrade;	andnbsp;
Packaging	Tube	andnbsp;
Part Status	Obsolete	andnbsp;
FET Type	N-Channel	andnbsp;
Technology	MOSFET (Metal Oxide)	andnbsp;
Drain to Source Voltage (Vdss)	800 V	andnbsp;
Current - Continuous Drain (Id) @ 25anddeg;C	4A (Tc)	andnbsp;
Drive Voltage (Max Rds On, Min Rds On)	10V	andnbsp;
Rds On (Max) @ Id, Vgs	1.3Ohm @ 2.5A, 10V	andnbsp;
Vgs(th) (Max) @ Id	3.9V @ 240andmicro;A	andnbsp;
Gate Charge (Qg) (Max) @ Vgs	31 nC @ 10 V	andnbsp;
Vgs (Max)	andplusmn;20V	andnbsp;
Input Capacitance (Ciss) (Max) @ Vds	570 pF @ 100 V	andnbsp;
FET Feature	-	andnbsp;
Power Dissipation (Max)	38W (Tc)	andnbsp;
Operating Temperature	-55anddeg;C ~ 150anddeg;C (TJ)	andnbsp;
Grade	-	andnbsp;
Qualification	-	andnbsp;
Mounting Type	Through Hole	andnbsp;
Supplier Device Package	PG-TO220-3-31	andnbsp;

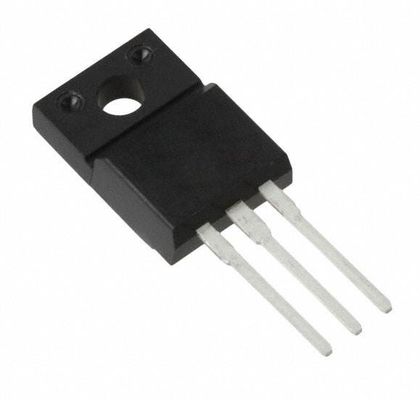

Package / Case	TO-220-3 Full Pack	andnbsp;
Base Product Number	SPA04N80

andnbsp;

Drawing
