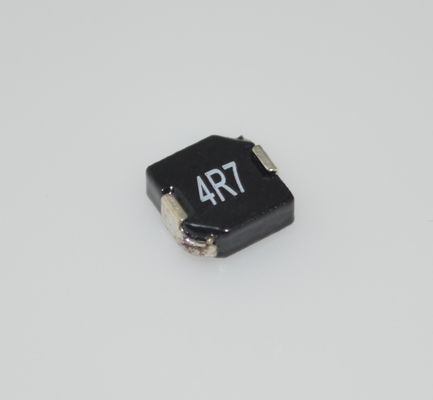

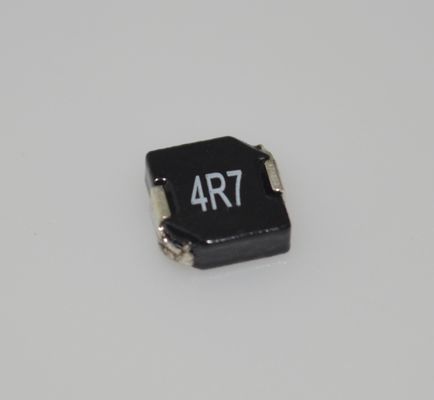

SRP7030-4R7M 4.7µH Shielded Power Inductor with 9.6mΩ Low DCR 15.8A High Isat Ferrite Core High Current Low Loss Compact 7.3x7.3x3.0mm for Power Supplies

SRP7030-4R7M 4.7andmicro;H Shielded Power Inductor with 9.6mandOmega; Low DCR 15.8A High Isat Ferrite Core High Current Low Loss Compact 7.3x7.3x3.0mm for Power Supplies

andnbsp;

Features

n Shielded construction

n Unit height of 3.2 mm

n Inductance range: 0.1 to 10 andmu;H

n Current up to 32.5 A

n RoHS compliant

andnbsp;

Applications

1:DC-DC Converters: Primarily used as the output choke or energy storage inductor in high-current Buck (step-down) converters.

2:Voltage Regulator Modules (VRMs) for servers, workstations, and desktop computers.

3:Networking equipment, telecom infrastructure, and base stations.

4:Power management for graphics cards and gaming consoles.

5:Power circuits in various industrial and automotive electronics.

andnbsp;

Description

1:High Current Capability: Its key advantage is the ability to handle a high saturation current (Iandlt;subandgt;satandlt;/subandgt;) of 15.8A. This makes it ideally suited for power stabilization and filtering in circuits powering CPUs, GPUs,andnbsp; and other high-current loads.

2:Low DC Resistance (DCR): It features an exceptionally low typical DC resistance of just 9.6mandOmega;. This minimizes power losses (Iandsup2;R losses), thereby increasing power conversion efficiency and reducing heat generation within the component itself.

3:Shielded Construction: The magnetically shielded structure effectively suppresses electromagnetic interference (EMI) and reduces magnetic field leakage to nearby sensitive circuits. This simplifies board design and aids in passing EMC compliance tests.

4:Compact Footprint: With dimensions of just 7.3mm x 7.3mm x 3.0mm, it offers high power density in a minimal PCB area. This makes it perfect for space-constrained applications like slim notebooks, server motherboards, and networking equipment.

5:Robust Performance: The use of a robust ferrite core material and a heat-resistant plastic casing ensures high reliability and long-term stability under demanding conditions. It typically features a wide operating temperature range, often from -40anddeg;C to +125anddeg;C or higher, suitable for industrial-grade applications.

6:Low-Loss Design: The combination of low DCR and optimized core material results in low overall power loss at switching frequencies, contributing to higher overall system efficiency.

andnbsp;

INFORMATION

andnbsp;

Drawing

Our advantage :phones, PDAand#39;s, notebook comput.ers

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

andnbsp;

be sure to meet your need for all kinds of components. ^_^
