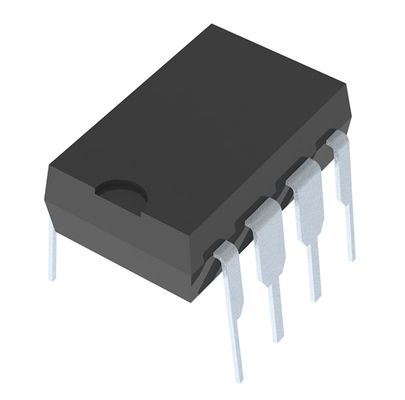

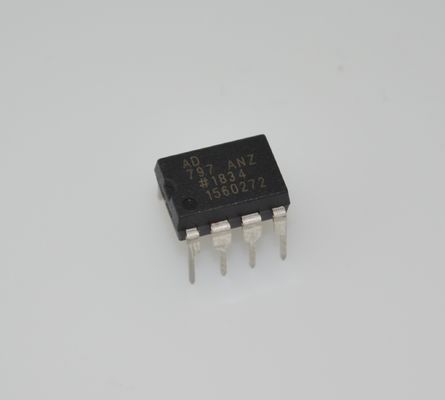

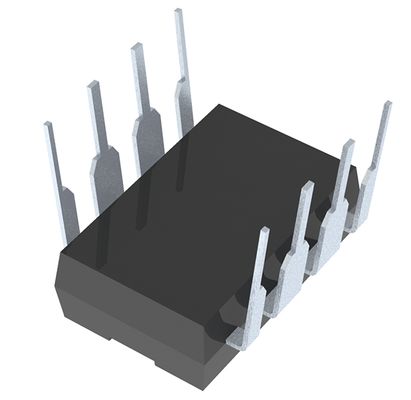

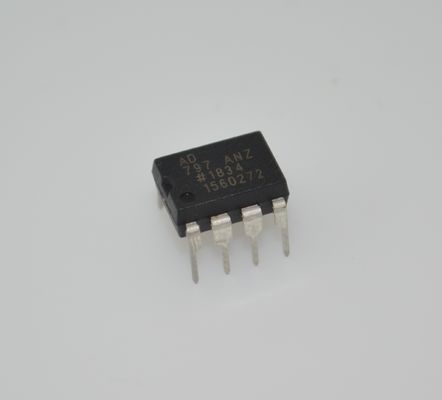

AD797ANZ Ultralow Noise (0.9nV/√Hz) Op Amp with 0.1µV/°C Drift 110dB CMRR 8-Pin DIP 80MHz Gain-Bandwidth High Speed (20V/µs) for Precision Instrumentation Applications

AD797ANZ Ultralow Noise (0.9nV/andradic;Hz) Op Amp with 0.1andmicro;V/anddeg;C Drift 110dB CMRR 8-Pin DIP 80MHz Gain-Bandwidth High Speed (20V/andmicro;s) for Precision Instrumentation Applications

andnbsp;

FEATURES

Low noise

0.9 nV/andradic;Hz typical (1.2 nV/andradic;Hz maximum) input voltage noise at 1 kHz

50 nV p-p input voltage noise, 0.1 Hz to 10 Hz

Low distortion

andminus;120 dB total harmonic distortion at 20 kHz

Excellent ac characteristics

800 ns settling time to 16 bits (10 V step)

110 MHz gain bandwidth (G = 1000)

8 MHz bandwidth (G = 10)

280 kHz full power bandwidth at 20 V p-p

20 V/andmu;s slew rate

Excellent dc precision

80 andmu;V maximum input offset voltage

1.0 andmu;V/anddeg;C VOS drift

Specified for andplusmn;5 V and andplusmn;15 V power supplies

High output drive current of 50 mA

andnbsp;

APPLICATIONS

Professional audio preamplifiers

IR, CCD, and sonar imaging systems

Spectrum analyzers

Ultrasound preamplifiers

Seismic detectors

andSigma;-andDelta; ADC/DAC buffers

andnbsp;

DESCRIPTION

The AD797 is a very low noise, low distortion operational amplifier ideal for use as a preamplifier. The low noise of 0.9 nV/andradic;Hz and low total harmonic distortion of andminus;120 dB in audio bandwidths give the AD797 the wide dynamic range necessary for preamps in microphones and mixing consoles.

Furthermore, the AD797 has an excellent slew rate of 20 V/andmu;s and a 110 MHz gain bandwidth, which makes it highly suitable for low frequency ultrasound applications.

The AD797 is also useful in infrared (IR) and sonar imaging applications, where the widest dynamic range is necessary. The low distortion and 16-bit settling time of the AD797 make it ideal for buffering the inputs to andSigma;-andDelta; ADCs or the outputs of high resolution DACs, especially when the device is used in critical applications such as seismic detection or in spectrum analyzers. Key features such as a 50 mA output current drive and the specified power supply voltage range of andplusmn;5 V to andplusmn;15 V make the AD797 an excellent general-purpose amplifier.
