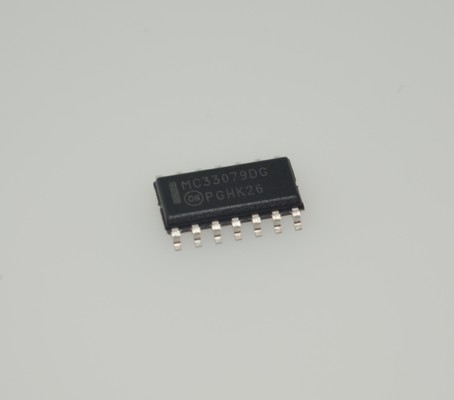

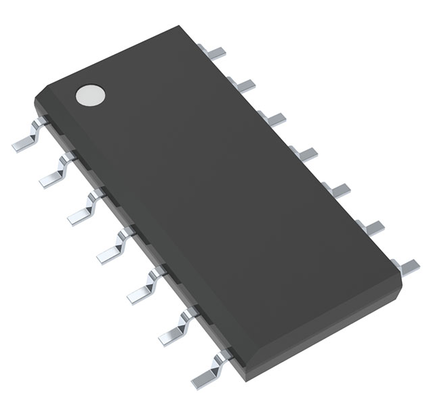

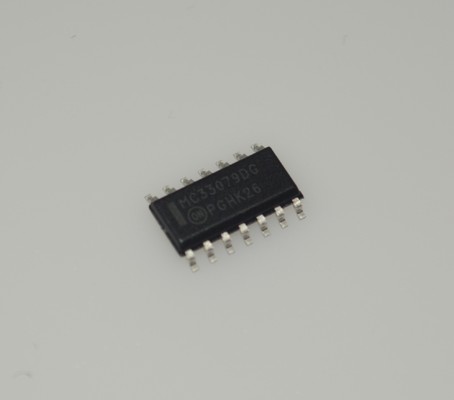

MC33079DG Ultra-Low Noise High-Speed Op-Amp with Wide Supply Range Low THD High Slew Rate Large Output Swing Low Input Bias Current and Stable Performance for Pro Audio & Precision Systems

MC33079DG Ultra-Low Noise High-Speed Op-Amp with Wide Supply Range Low THD High Slew Rate Large Output Swing Low Input Bias Current and Stable Performance for Pro Audio & Precision Systems

Features

• Dual Supply Operation: 5.0 V to 18 V

• Low Voltage Noise: 4.5 nV/ Hz

• Low Input Offset Voltage: 0.15 mV

• Low T.C. of Input Offset Voltage: 2.0 V/°C

• Low Total Harmonic Distortion: 0.002%

• High Gain Bandwidth Product: 16 MHz

• High Slew Rate: 7.0 V/ s

• High Open Loop AC Gain: 800 @ 20 kHz

• Excellent Frequency Stability

• Large Output Voltage Swing: +14.1 V/ −14.6 V

• ESD Diodes Provided on the Inputs

• NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements

• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

Applications

1. Professional Audio Equipment

Key Features Utilized: Its ultra-low noise (as low as 4.5 nV/√Hz), low total harmonic distortion (THD), and wide output swing make it ideal for

high-end audio gear.

Typical Applications: Mixing consoles, audio preamplifiers, equalizers, effects processors, and high-fidelity (Hi-Fi) systems.

2. Precision Measurement and Test Equipment

Key Features Utilized: Low input bias current, high open-loop gain, and good stability enable accurate amplification of weak signals.

Typical Applications: Sensor amplifiers (e.g., for strain gauges, thermocouples), data acquisition systems, medical instruments, and laboratory equipment.

3. Active Filters and Signal Conditioning

Key Features Utilized: High slew rate (7 V/µs) and sufficient gain bandwidth product (GBW: 16 MHz) allow it to handle high-frequency signals without distortion.

Typical Applications: Anti-aliasing filters, audio crossovers, and signal conditioning circuits in communication systems.

4. Industrial Control Systems

Key Features Utilized: Wide operating supply range (±1.5V to ±18V) and good stability make it adaptable to demanding industrial environments.

Typical Applications: Process control, motor drive control loops, analog computation, and voltage reference buffering.

Description

The MC33078/9 series is a family of high quality monolithic amplifiers employing Bipolar technology with innovative high performance concepts for quality audio and data signal processing applications. This family incorporates the use of high frequency PNP input transistors to produce amplifiers exhibiting low input voltage noise with high gain bandwidth product and slew rate. The all NPN output stage exhibits no deadband crossover distortion, large output voltage swing, excellent phase and gain margins, low open loop high frequency output impedance and symmetrical source and sink AC frequency performance.

The MC33078/9 family offers both dual and quad amplifier versions and is available in the plastic DIP and SOIC packages (P and D suffixes).
