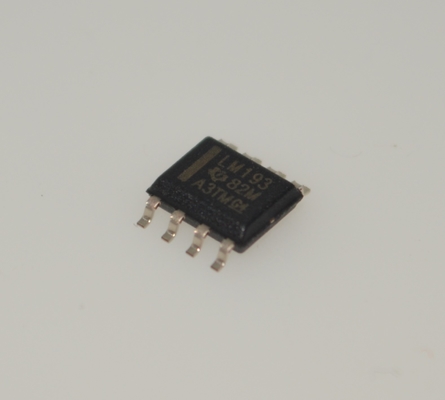

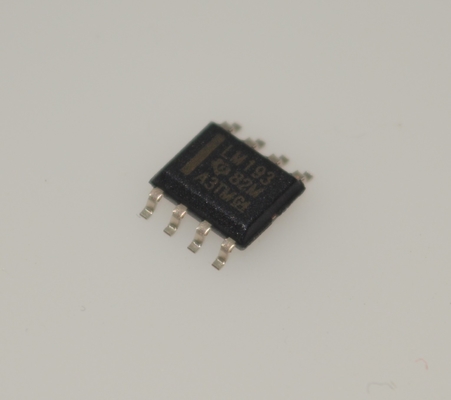

LM193DR Low-Power Dual Voltage Comparator with Open-Collector Output Wide 2V-36V Supply ±1V-18V Dual Supply Low Input Current High Accuracy TTL/CMOS Compatible SOIC-8 Package

LM193DR Low-Power Dual Voltage Comparator with Open-Collector Output Wide 2V-36V Supply ±1V-18V Dual Supply Low Input Current High Accuracy TTL/CMOS Compatible SOIC-8 Package

Features

• NEW LM393B and LM2903B

• Improved specifications of B-version

– Maximum rating: up to 38V

– ESD rating (HBM): 2kV

– Low input offset: 0.37mV

– Low input bias current: 3.5nA

– Low supply-current: 200µA per comparator

– Faster response time of 1µsec

– Extended temperature range for LM393B

– Available in tiny 2 x 2mm WSON package

• B-version is drop-in replacement for LM293, LM393 and LM2903, A and V versions

• Common-mode input voltage range includes ground

• Differential input voltage range equal to maximum rated supply voltage: ±38 V

• Low output saturation voltage

• Output compatible with TTL, MOS, and CMOS

Applications

• Vacuum robot

• Single phase UPS

• Server PSU

• Cordless power tool

• Wireless infrastructure

• Applicances

• Building automation

• Factory automation & control

• Motor drives

• Infotainment & cluster

Description

The LM393B and LM2903B devices are the next generation versions of the industry-standard LM393 and LM2903 comparator family. These next generation B-version comparators feature lower offset voltage, higher supply voltage capability, lower supply current, lower input bias current, lower propagation delay, and improved 2 kV ESD performance and input ruggedness through dedicated ESD clamps. The LM393B and LM2903B can drop-in replace the LM293, LM393 and LM2903, for both "A" and "V" grades.

All devices consist of two independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Quiescent current is independent of the supply voltage.

INFORMATION

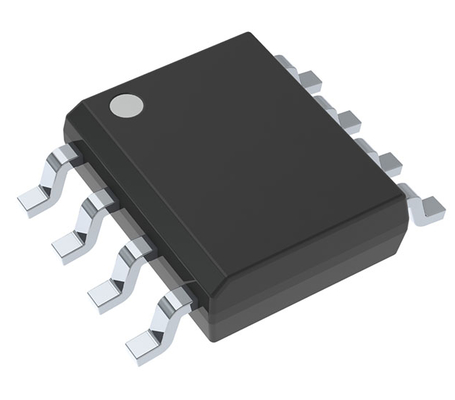

Drawing

Our advantage :phones, PDA's, notebook comput.ers

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

be sure to meet your need for all kinds of components. ^_^


Product List
Supply a Series of Electronic Components, full range of semiconductors, active & passive Components.We can help you to get all for bom of the PCB,IN a word, you can get one-stop solution here,


The offers including:
Integrated Circuit, Memory ICs, Diode, Transistor , Capacitor, Resistor, Varistor, Fuse, Trimmer & Potentiometer, Transformer, Battery, Cable, Relay, Switch, Connector, Terminal Block, Crystal & Oscillator, Inductor, Sensor, Transformer, IGBT Driver, LED,LCD, Convertor, PCB (Printed Circuit Board),PCBA (PCB Assembly)

Strong in Brand:
Microchip, MAX, AD, TI, ATMEL, ST, ON, NS, Intersil, Winbond, Vishay, ISSI, Infineon, NEC, FAIRCHILD, OMRON,YAGEO, TDK, etc
