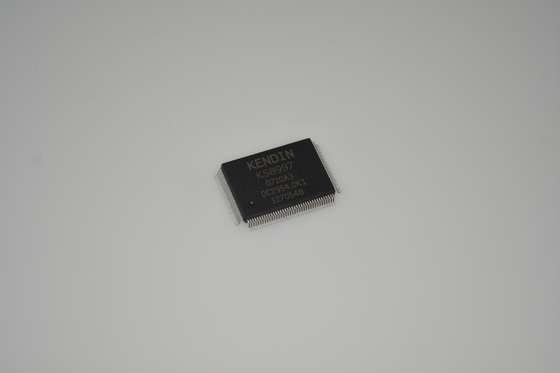

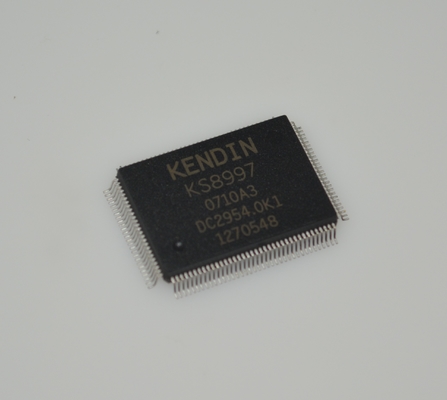

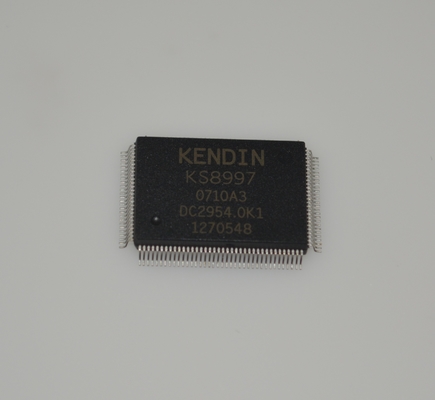

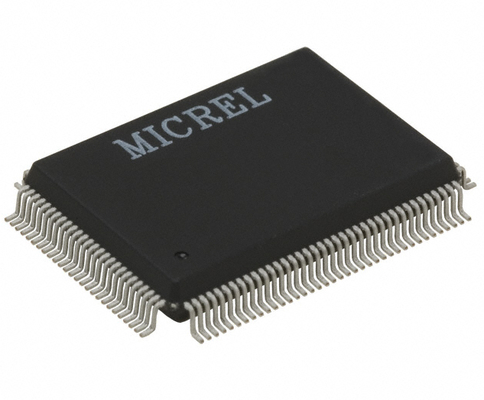

KSZ8997 9-Port 10/100 Managed Switch with QoS VLAN Energy Detection Auto-MDI/MDIX 3.3V Operation Industrial Temp (-40°C to +85°C) 128-Pin PQFP Package and Advanced Traffic Management

KSZ8997 9-Port 10/100 Managed Switch with QoS VLAN Energy Detection Auto-MDI/MDIX 3.3V Operation Industrial Temp (-40°C to +85°C) 128-Pin PQFP Package and Advanced Traffic Management

Features

8-port 10/100 integrated switch with 8 physicallayer transceivers

32Kx32 of SRAM on chip for frame buffering

2.0Gbps high performance memory bandwidth

10BaseT and 100BaseTX modes of operation

Superior analog technology for reduced power anddie size

Single 2.0V power supply with options for 2.5V and3.3V I/O

900mA(1.80 W) including physical transmit drivers

Supports port based VLAN

Supports DiffServ priority, 802.1p based priority orport based priority

Indicators for link, activity, full/half-duplex andspeed

Unmanaged operation via strapping or EEPROM atsystem reset time

Hardware based 10/100, ful/half, flow control andauto negotiation

Wire speed reception and transmission

Integrated address look-up engine, supports 1K absolute MAC addresses

Automtic address learning, address aging and address migration

Broadcast storm protection

Full-duplex lEEE 802.3x flow control

Half-duplex back pressure flow control

Comprehensive LED support

Supports MDl/MDl-X auto crossover

Commercial temperature range: 0'C to +70°C

Supports lead free product(KSZ8997)for commercial temperature range: 0'C to +70°C

Available in 128-pin PQFP package

Applications

Small workgroup switches

VolP infrastructure switches

Description

The KS8997 contains eight 10100physical layer transceivers,eight MAC(Media Access Control) units with an integrated layer 2 switch. The device runs as an eight port integrated switch.

The KS8997 is designed to reside in an unmanaged design not requiring processor intervention. This is achieved throughlstrapping Or EEPROM programming at system reset time.

INFORMATION

Drawing

Our advantage :phones, PDA's, notebook comput.ers

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

be sure to meet your need for all kinds of components. ^_^
