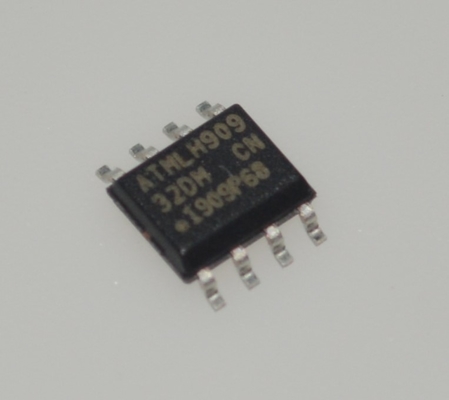

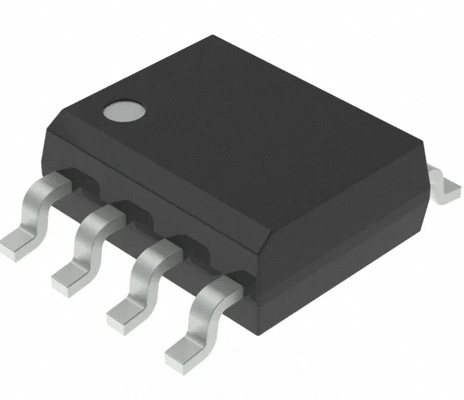

AT24C32D-SSHM-T 32Kb I2C Serial EEPROM 1.7V to 5.5V Wide Voltage 1MHz Speed 32-byte Page Hardware WP 1M Write Cycles 100-year Retention SOIC-8 Industrial Temp

AT24C32D-SSHM-T 32Kb I2C Serial EEPROM 1.7V to 5.5V Wide Voltage 1MHz Speed 32-byte Page Hardware WP 1M Write Cycles 100-year Retention SOIC-8 Industrial Temp

andnbsp;

Features

andbull; Low-Voltage and Standard-Voltage Operation:

andnbsp; andndash; VCC = 1.7V to 5.5V

andbull; Internally Organized as 4,096 x 8 (32K)

andbull; Industrial Temperature Range: -40anddeg;C to +85anddeg;C

andbull; I2C-Compatible (2-Wire) Serial Interface:

andnbsp; andndash; 100 kHz Standard mode, 1.7V to 5.5V

andnbsp; andndash; 400 kHz Fast mode, 1.7V to 5.5V

andnbsp; andndash; 1 MHz Fast Mode Plus (FM+), 2.5V to 5.5V

andbull; Schmitt Triggers, Filtered Inputs for Noise Suppression

andbull; Bidirectional Data Transfer Protocol

andbull; Write‑Protect Pin for Full Array Hardware Data Protection

andbull; Ultra Low Active Current (3 mA maximum) and Standby Current (6 andmu;A maximum)

andbull; 32-Byte Page Write Mode:

andnbsp; andndash; Partial page writes allowed

andbull; Random and Sequential Read Modes

andbull; Self‑Timed Write Cycle within 5 ms Maximum

andbull; High Reliability:

andnbsp; andndash; Endurance: 1,000,000 write cycles

andnbsp; andndash; Data retention: 100 years

andbull; Green Package Options (Lead-free/Halide-free/RoHS compliant)

andbull; Die Sale Options: Wafer Form and Bumped Wafers

andnbsp;

Applications

1. Consumer Electronics

Smart Home Appliances: Stores user settings, configuration parameters (e.g., temperature, mode), and operation records.

TVs/Monitors: Stores EDID data such as resolution, color parameters, and user-defined modes.

Audio Devices: Stores equalizer settings, preset radio stations, volume levels, etc.

IoT Devices: Stores device-unique IDs, network configuration parameters, and sensor calibration data.

2. Communication andamp; Networking Equipment

Routers, Switches, Modems: Stores critical data such as MAC addresses, default configurations, and production debugging information.

Baseband Modules: Stores module configuration parameters and identification information.

3. Industrial andamp; Automotive Electronics

Industrial Control: Stores device calibration data, production dates, serial numbers, and maintenance logs.

Automotive Electronics: Used in infotainment systems, dashboards, and body control modules (BCMs) to store non-critical configuration data. Its industrial temperature range (-40anddeg;C to +85anddeg;C) meets most automotive and industrial requirements.

4. Computer andamp; Peripheral Devices

Printer Cartridges/Toners: A classic applicationandmdash;stores ink levels, serial numbers, and usage dates to prevent counterfeiting.

Motherboards (BIOS): Stores hardware configuration information.

RAID Cards: Stores configuration data.

Memory Modules: Stores SPD (Serial Presence Detect) information such as timings, voltage, and manufacturer details.

5. Medical Equipment

Portable Medical Devices: Stores device calibration data, user preferences, and usage records (note: medical certification requires system-level consideration).

andnbsp;

Description

The AT24C32D provides 32,768 bits of Serial Electrically Erasable and Programmable Read-Only Memory (EEPROM) organized as 4,096 words of 8 bits each. The deviceandrsquo;s cascading feature allows up to eight devices to share a common 2‑wire bus. The device is optimized for use in many industrial and commercial applications where low‑power and low‑voltage operation are essential. The devices are available in space‑saving 8-lead SOIC, 8-lead TSSOP, 8-pad UDFN, 8-pad XDFN, 5-lead SOT23 and 8 ball VFBGA packages. All packages operate from 1.7V to 5.5V.

andnbsp;
