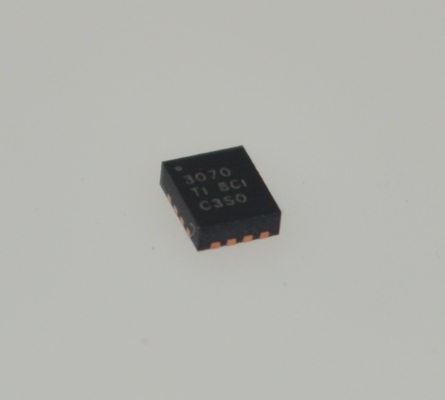

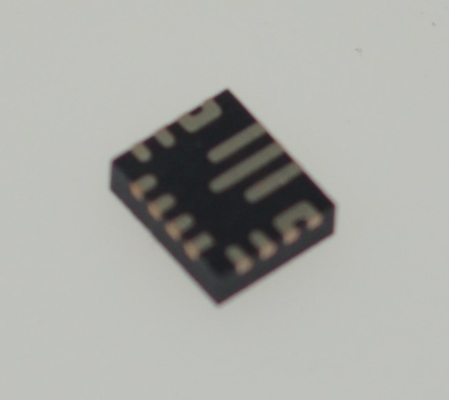

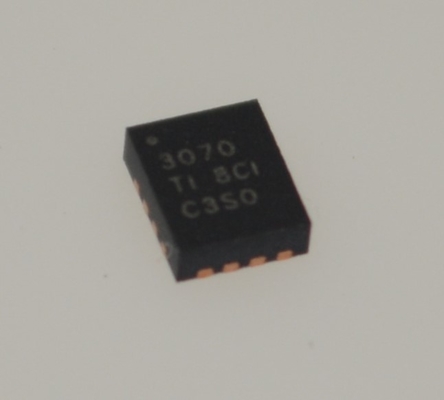

TPS63070RNMR Buck-Boost Converter 2.5-12V Input 2A Switch 96% Efficiency 1.8-5.5V Adjustable Output Power Save Mode 25μA IQ Forced PWM 3x3mm QFN Package

TPS63070RNMR Buck-Boost Converter 2.5-12V Input 2A Switch 96% Efficiency 1.8-5.5V Adjustable Output Power Save Mode 25andmu;A IQ Forced PWM 3x3mm QFN Package

andnbsp;

Features

andbull; InputVoltageRange:2.0Vto16V

andbull; OutputVoltageRange:2.5Vto9V

andbull; Upto95%Efficiency

andbull; +/-1%dcaccuracyinPWMmode

andbull; +3%/-1%dcaccuracyinPFMmode

andbull; 2AOutputCurrent inBuckMode

andbull; 2AOutputCurrent inBoostMode (VIN=4V;Vout=5V)

andbull; PreciseENABLEinputallows

andnbsp; andndash;userdefinedundervoltagelockout

andnbsp; andndash;exactsequencing

andbull; AutomaticTransitionBetweenStepDownand BoostMode

andbull; TypicalDeviceQuiescentCurrent:50andmu;A

andbull; FixedandAdjustableOutputVoltageOptions

andbull; OutputDischargeOption

andbull; PowerSaveModeforImprovedEfficiencyatLow OutputPower

andbull; ForcedFixedFrequencyOperationat2.4MHz andSynchronizationOption

andbull; PowerGoodOutput

andbull; VSELsimplyallowsoutputvoltagechange

andbull; LoadDisconnectDuringShutdown

andbull; OvertemperatureProtection

andbull; Input /OutputOvervoltageProtection

andbull; AvailableinQFNPackage

andnbsp;

Applications

andbull; DualLi-IonApplications

andbull; IndustrialMeteringEquipment

andbull; DSCand#39;sandCamcorders

andbull; NotebookComputers

andbull; UltraMobilePCand#39;sandMobileInternetDevices

andbull; PersonalMedicalProducts

andnbsp;

Description

The TPS6307x is a high efficiency, lowquiescent currentbuck-boostconvertersuitableforapplications wherethe input voltagecanbehigheror lower than theoutputvoltage.Outputcurrentscangoashighas 2Ainboostmodeandinbuckmode.Thebuck-boost converter isbasedonafixedfrequency,pulse-width modulation (PWM) controller using synchronous rectificationtoobtainmaximumefficiency.At lowload currents, theconverter entersPowerSaveMode to maintain high efficiency over a wide load current range. The converter can be disabled tominimize battery drain. During shutdown, the load is disconnectedfromthebattery.Thedeviceisavailable ina2.5mmx3mmQFNpackage.

andnbsp;

INFORMATION

andnbsp;

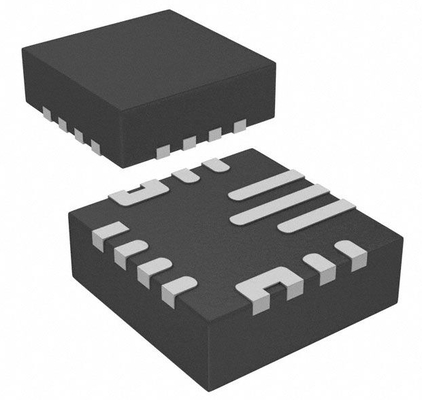

Drawing

Our advantage :phones, PDAand#39;s, notebook comput.ers

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

andnbsp;

be sure to meet your need for all kinds of components. ^_^
