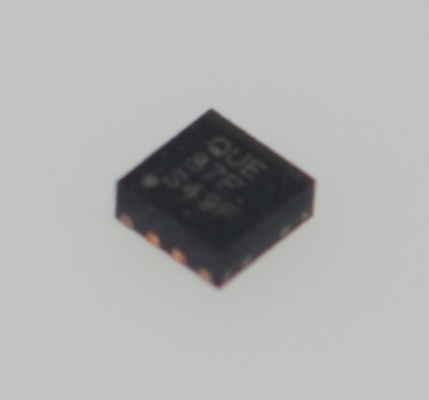

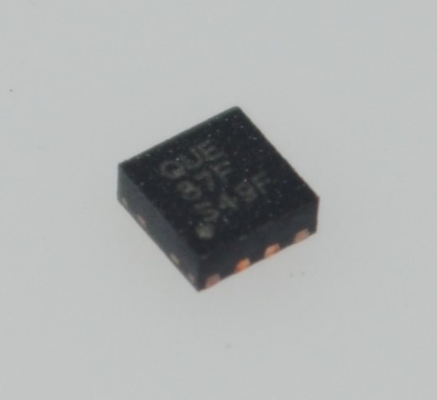

TPS62170DSGR Step-Down Converter 3-17V Input 1.2A Output Up to 95% Efficiency 1.8V to 6V Adjustable Output 17μA Low Quiescent Current Power Save Mode 100% Duty Cycle Small 2.0x2.0mm WSON Package

TPS62170DSGR Step-Down Converter 3-17V Input 1.2A Output Up to 95% Efficiency 1.8V to 6V Adjustable Output 17andmu;A Low Quiescent Current Power Save Mode 100% Duty Cycle Small 2.0x2.0mm WSON Package

andnbsp;

Features

andbull; DCS-Controlandtrade;Topology

andbull; InputVoltageRangefrom3Vto17V

andbull; Upto500-mAOutputCurrent

andbull; AdjustableOutputVoltagefrom0.9Vto6V

andbull; FixedOutputVoltageVersions

andbull; SeamlessPowerSaveModeTransition

andbull; Typically17-andmicro;AQuiescentCurrent

andbull; PowerGoodOutput

andbull; 100%DutyCycleMode

andbull; ShortCircuitProtection

andbull; OverTemperatureProtection

andbull; PintoPinCompatiblewithTPS62160and TPS62125

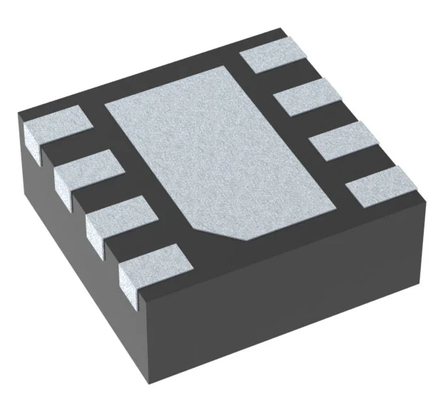

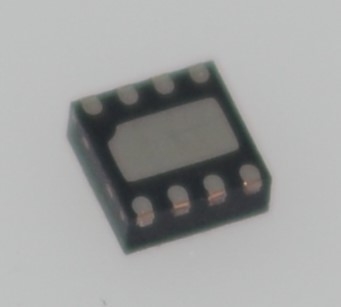

andbull; Availableina2-mmandtimes;2-mm8-PinWSON Package

andnbsp;

Applications

andbull; Standard12-VRailSupplies

andbull; POLSupplyfromSingleorMultipleLi-IonBattery

andbull; LDOReplacement

andbull; EmbeddedSystems

andbull; DigitalStillCamera,Video

andbull; MobilePCs,Tablet-PCs,Modems

andnbsp;

Description

The TPS6217x device family are easy to use synchronousstep-downDC-DCconvertersoptimized for applications with high power density. A high switchingfrequencyof typically2.25MHzallows the use of small inductors and provides fast transient responseaswellashighoutputvoltageaccuracyby utilizationof theDCS-Controlandtrade;topology.

With itswideoperating input voltagerangeof3Vto 17 V, the devices are ideally suited for systems poweredfromeitheraLi-Ionorotherbatteryaswell asfrom12-Vintermediatepower rails. Itsupportsup to0.5-Acontinuousoutputcurrentatoutputvoltages between0.9Vand6V(with100%dutycyclemode).

Powersequencingisalsopossiblebyconfiguringthe enableandopen-drainpowergoodpins.

In power savemode, the devices showquiescent currentofabout17andmu;AfromVIN.Powersavemode, enteredautomaticallyandseamlessly if the load is small,maintainshighefficiencyover theentire load range. In shutdownmode, thedevice is turnedoff andshutdowncurrentconsumptionislessthan2andmu;A.

Thedevice, available inadjustableand fixedoutput voltageversions, ispackaged ina2-mmandtimes;2-mm8 pinWSONpackage(DSG).

andnbsp;

INFORMATION

andnbsp;

Drawing

Our advantage :phones, PDAand#39;s, notebook comput.ers

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

andnbsp;

be sure to meet your need for all kinds of components. ^_^
