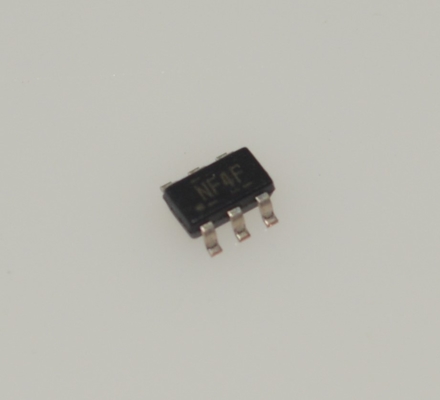

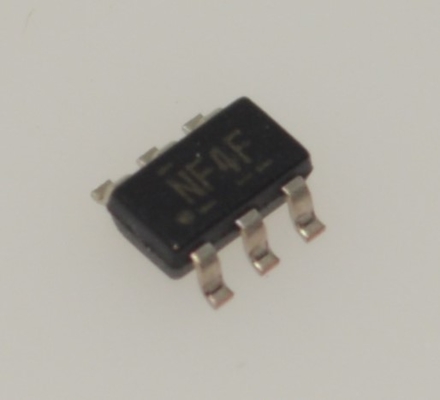

TPS22929DDBVR Load Switch 1.5A Rated Ultra-Low 0.8Ω RON 1.1-5.5V Wide Input Quick Output Discharge (QOD) Low 1μA IQ Tiny SOT-23-5 Package Enable Pin Short-Circuit Protection

TPS22929DDBVR Load Switch 1.5A Rated Ultra-Low 0.8andOmega; RON 1.1-5.5V Wide Input Quick Output Discharge (QOD) Low 1andmu;A IQ Tiny SOT-23-5 Package Enable Pin Short-Circuit Protection

andnbsp;

Features

andbull; Integrated Single Load Switch 1

andbull; Small SOT23-6 Package

andbull; Input Voltage Range: 1.4 V to 5.5 V

andbull; LowON-Resistance

andnbsp; andndash; rON =115 mandOmega;at VIN = 5 V

andnbsp; andndash; rON =115 mandOmega;at VIN = 3.3 V

andnbsp; andndash; rON =118 mandOmega;at VIN = 2.5 V

andnbsp; andndash; rON =129 mandOmega;at VIN = 1.5 V

andbull; 1.8-A Continuous Switch Current (25anddeg;C)

andbull; LowThreshold Control Input

andbull; Controlled Slew-rate

andbull; Under-Voltage Lock Out

andbull; Quick Output Discharge

andbull; Reverse Current Protection

andnbsp;

Applications

andbull; Portable Industrial Equipment

andbull; Portable Medical Equipment

andbull; Portable Media Players

andbull; Point Of Sales Terminal

andbull; GPSDevices

andbull; Digital Cameras

andbull; Portable Instrumentation

andbull; Smartphones

andnbsp;

Description

The TPS22929D is a small, low rON load switch with controlled turn on. The device contains a P-channel MOSFET that can operate over an input voltage range of 1.4 V to 5.5 V. The switch is controlled by an on/off input (ON), which is capable of interfacing directly with low-voltage control signals. The TPS22929D is active high enable.

The TPS22929D contains a 150-andOmega; on-chip load resistor for quick output discharge when the switch is turned off. The rise time of the device is internally controlled in order to avoid inrush current.

The TPS22929D device provides circuit breaker functionality by latching off the power-switch during reverse voltage situations. An internal reverse voltage comparator disables the power-switch when the output voltage (VOUT) is driven higher than the input (VIN) to quickly (10 andmicro;s typ) stop the flow of current towards the input side of the switch. Reverse current is always active, even when the power-switch is disabled. Additionally, under-voltage lockout (UVLO) protection turns the switch off if the input voltage is too low.

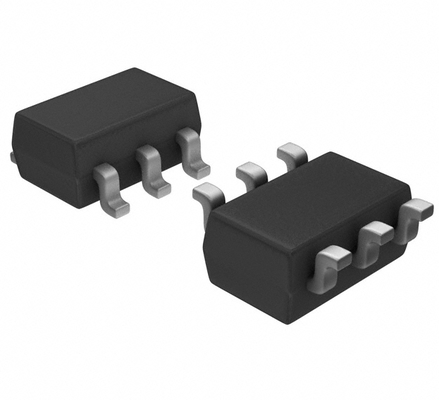

The TPS22929D is available in a small, space-saving 6-pin SOT23 package and is characterized for operation over

andnbsp;

INFORMATION

andnbsp;

Drawing

Our advantage :phones, PDAand#39;s, notebook comput.ers

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

andnbsp;

be sure to meet your need for all kinds of components. ^_^
