SMF05C.TCT 5-Channel ESD Protection Array with Low Capacitance IEC 61000-4-2 Compliance 5V Rating Ultra-Small Package and Space-Saving Design for High-Speed Data Line Protection

SMF05C.TCT 5-Channel ESD Protection Array with Low Capacitance IEC 61000-4-2 Compliance 5V Rating Ultra-Small Package and Space-Saving Design for High-Speed Data Line Protection

andnbsp;

Features

ESD protection for data lines to

andnbsp; IEC 61000-4-2(ESD)+15kV(air),andplusmn;8kV (contact)

andnbsp; IEC 61000-4-4(EFT) 40A(5/50ns)

Small package for use in portable electronics

Protects five l/0 lines

Working voltage: 5v

Low leakage current

Low operating and clamping voltages

Solid-state silicon-avalanche technology

andnbsp;

Applications

Cellular Handsets and Accessories

Cordless Phones

Personal Digital Assistants (PDAand#39;s)

Notebooks and Handhelds

Portable Instrumentation

Digital Cameras

Peripherals

MP3 Players

andnbsp;

Description

The SMF series TvS arrays are designed to protect sensitive electronics from damage or latch-up due to ESDandnbsp;and other voltage-induced transient events. They areandnbsp;designed for use in applications where board space is atandnbsp;a premium. Each device will protect up to five lines. Theyandnbsp;are unidirectional devices and may be used on lines whereandnbsp;the signal polarities are above ground.

TVS diodes are solid-state devices designed specificallyandnbsp;for transient suppression. They feature large cross-secandnbsp;tional area junctions for conducting high transient curandnbsp;rents. They offer desirable characteristics for board levelandnbsp;protection including fast response time, low operatingandnbsp;and clamping voltage, and no device degradation.

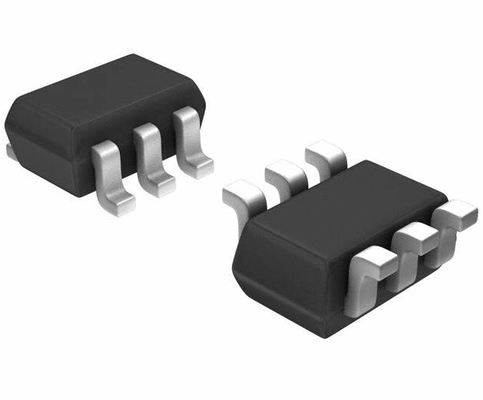

andnbsp;The SMF series devices may be used to meet the immunity requirements of lEC 61000-4-2, level 4. The smallandnbsp;SC70 package makes them ideal for use in portable electronics such as cell phones, PDAand#39;s, notebook comput

andnbsp;

INFORMATION

andnbsp;

Drawing

Our advantage :phones, PDAand#39;s, notebook comput.ers

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

andnbsp;

be sure to meet your need for all kinds of components. ^_^
