OPA353NA/3K High-Speed 5.5V Rail-to-Rail I/O CMOS Op Amp with Low Noise Low Power Ultra-Small SOT23-5 Wide Bandwidth for Precision Apps

OPA353NA/3K High-Speed 5.5V Rail-to-Rail I/O CMOS Op Amp with Low Noise Low Power Ultra-Small SOT23-5 Wide Bandwidth for Precision Apps

Features

RAIL-TO-RAIL INPUT

RAIL-TO-RAIL OUTPUT (within 10mV)

WIDE BANDWIDTH: 44MHZ

HIGH SLEW RATE: 22V/uS

LOW NOISE: 5nV/Hz

LOW THD+NOISE: 0.0006%

UNITY-GAIN STABLE

MicroSIZE PACKAGES

SINGLE, DUAL, AND QUAD

APPLICATIONS

CELL PHONE PA CONTROL LOOPS

DRIVING AD CONVERTERS

VIDEO PROCESSING

DATA ACQUISITION

PROCESS CONTROL

AUDIO PROCESSING

COMMUNICATIONS
ACTIVE FILTERS

TEST EQUIPMENT

Description

OPA353 series rail-to-rail CMOS operational amplifiers are designed for low cost, miniature applications.They are optimized for low voltage, single-supply operation. Rail-to-rail input/output, low noise (5nV/Hz),and high speed operation (44MHz, 22V/us) make them ideal for driving sampling analog-to-digital converters.They are also well suited for cell phone PA control loops and video processing (7552 drive capability) as well as audio and general purpose applications. Singledual, and quad versions have identical specifications for design flexibility.

The OPA353 series operates on a single supply as low as 2.5V with an input common-mode voltage range that extends 300mV beyond the supply rails. Output voltage swing is to within 10mV of the supply rails with a 10kΩ load Dual and quad designs feature completely independent circuitryfor lowest crosstalk and freedom from interact1on.

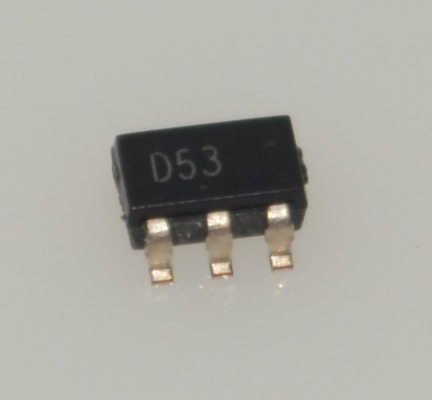

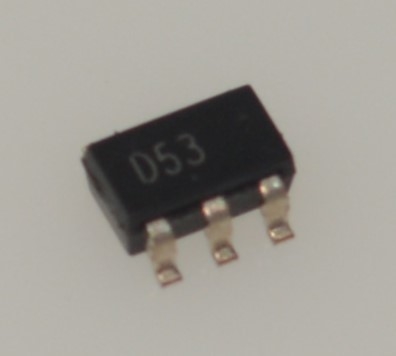

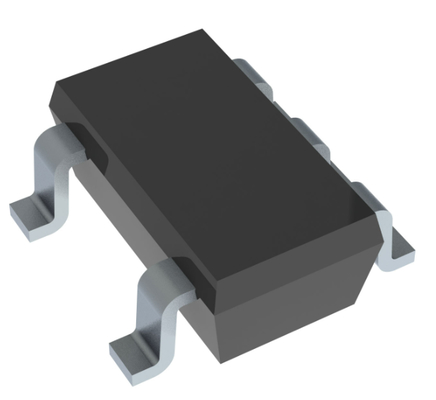

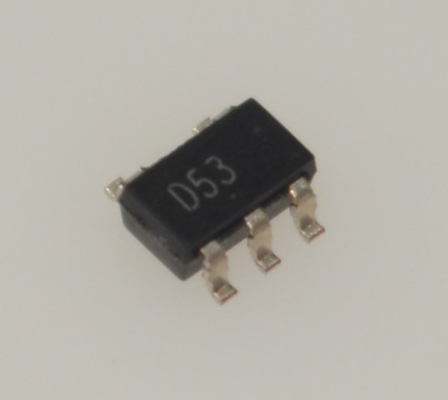

The single (OPA353) packages are the tiny 5-lead SOT-23-5 surface mount and $O-8 surface mount. The dual (OPA2353) comes in the miniature MSOP-8 surface mount and SO-8 surface mount. The quad (OPA4353) packages are the space-saving $SOP-16 surface mount and SO-14 surface mount. All are specified from -40°C to +85°C and operate from -55°C to +125°C

INFORMATION

Drawing
