AMCV-0603-5R5-C101N-T 5.5nH 0603 Multilayer RF Inductor with 5% Tolerance 100MHz SRF 0.15Ω DCR High Q Factor Tape and Reel Packaging for High-Frequency Circuits

AMCV-0603-5R5-C101N-T 5.5nH 0603 Multilayer RF Inductor with 5% Tolerance 100MHz SRF 0.15andOmega; DCR High Q Factor Tape andamp; Reel Packaging for High-Frequency Circuits

andnbsp;

Features

SMD type, small size suitable for high density mounting

Excellent clamping ratio and strong capability of voltage surge suppression

Excellent solderability (Ni, Sn plating)

andnbsp;

Applications

Transient voltage protection and voltage surge suppression forLED lighting

Suitable for LCD-TV, STB, Switch, Router, PLC, SecuritySystem, smart meters, mobile phones

Suppressing Induced /switching over-voltage caused bylightning and power

Protecting DC-DC Module, I/O ports, IC driver

andnbsp;

Description

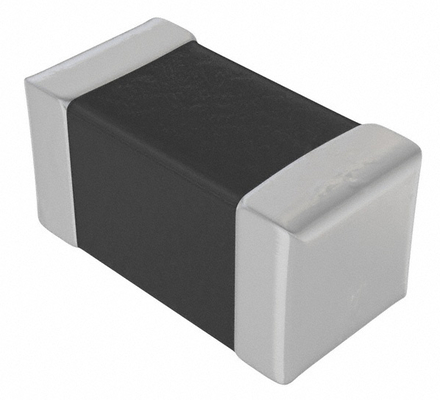

The AMCV-0603-5R5-C101N-T is a surface mount device (SMD) RF inductor manufactured using multilayer ceramic technology, in a standard 0603 (1608 metric) package. Its core design aims to provide stable and high-performance inductive solutions for high-frequency circuits.

This component offers a fixed inductance value of 5.5nH with a tight tolerance of andplusmn;5%, ensuring consistency and precision in circuit design. It features excellent high-frequency characteristics with a self-resonant frequency (SRF) as high as 100MHz, making it suitable for various RF applications operating below this frequency. Meanwhile, its extremely low DC resistance (DCR) of just 0.15andOmega; effectively reduces energy loss and heat generation during current passage. Combined with its high Q (Quality Factor) value, this inductor enables low insertion loss and high-efficiency signal transmission in resonant circuits, impedance matching, and filtering applications.

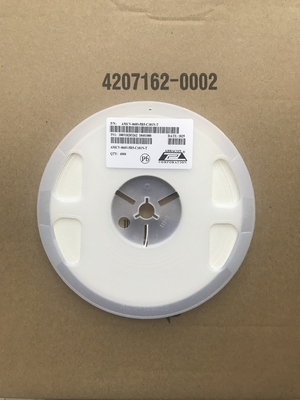

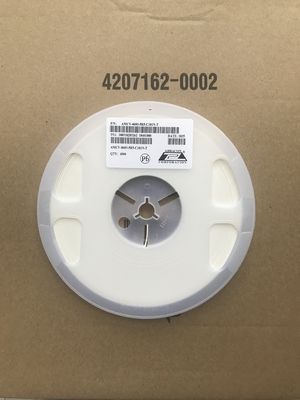

The component comes in industry-standard tape and reel packaging, perfectly compatible with automated pick-and-place equipment for large-scale production processes, effectively improving assembly efficiency and reliability.

In summary, with its compact size, precise inductance value, excellent high-frequency performance, and low-loss characteristics, the AMCV-0603-5R5-C101N-T serves as an ideal passive component choice for wireless communication modules, RFID readers, mobile phones, GPS devices, and other high-frequency electronic circuits.

andnbsp;

INFORMATION

andnbsp;

Drawing
