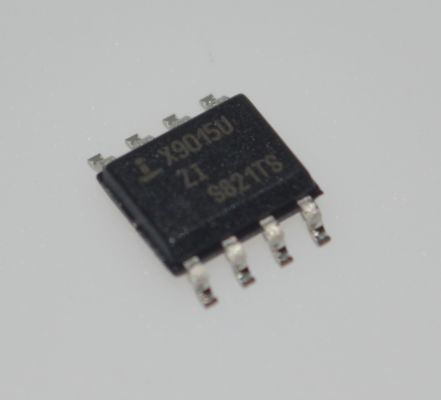

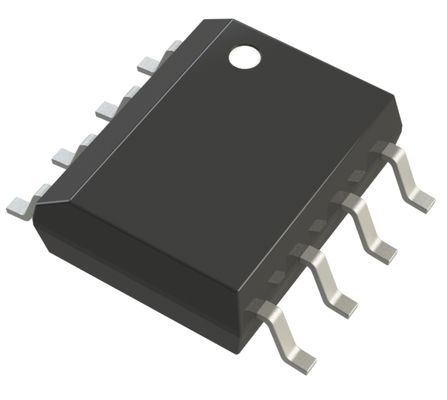

X9015US8IZ 100-Tap Single XDCP™ with SPI Interface Non-Volatile Memory and Power-On Recall 2.7V-5.5V Operation ±20% R-Tolerance 35kΩ R-Tempco for Stable Performance

X9015US8IZ 100-Tap Single XDCPandtrade; with SPI Interface Non-Volatile Memory andamp; Power-On Recall 2.7V-5.5V Operation andplusmn;20% R-Tolerance 35kandOmega; R-Tempco for Stable Performance

andnbsp;

Features

andbull; 32 taps

andbull; Three-wire up/down serial interface

andbull; VCC = 2.7Vandndash;5V

andbull; Operating ICC = 50andmicro;A max.

andbull; Standby current = 1andmicro;A max.

andbull; RTOTAL = 10kandOmega;, 50kandOmega;

andbull; Packages 8 Ld SOIC, 8 Ld MSOP

andbull; Pb-free plus anneal available (RoHS compliant)

andnbsp;

Description

The Intersil X9015 is a 32 tap potentiometer that is volatile. The device consists of a string of 31 resistors that can be programmed to connect the RW/VW wiper output with any of the nodes between the connecting resistors. The connection point of the wiper is determined by information communicated to the device on the 3-wire port. The 3-wire port changes the tap position by a falling edge on the increment pin. The direction the wiper moves is determined by the state of the up/down pin. The wiper position at power up is Tap.

The X9015 can be used in a wide variety of applications that require a digitally controlled variable resistor to set analog values.

andnbsp;

INFORMATION

andnbsp;

Drawing
