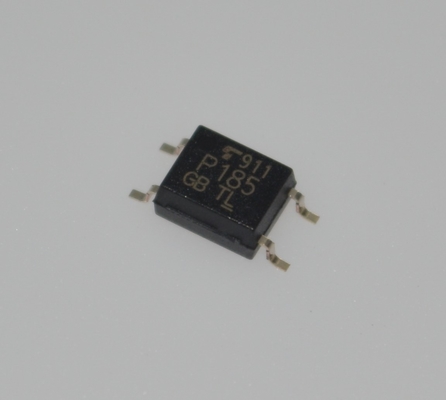

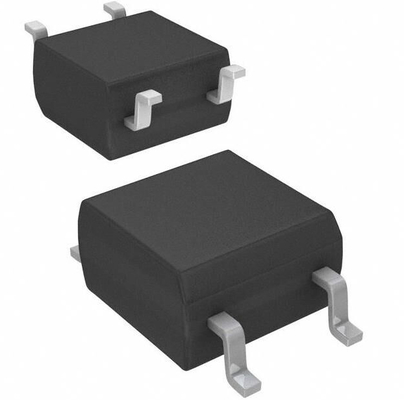

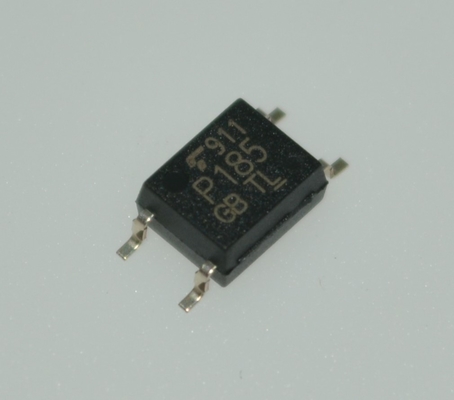

TLP185(GB-TPL,SE 5kV/rms Mini-Flat SOP Photocoupler 50mA LED Current High CTR 50-600% High Speed 1µs Max Wide Temp -55 to 110°C 3750Vrms Isolation Low Power Safety Approvals

TLP185(GB-TPL,SE 5kV/rms Mini-Flat SOP Photocoupler 50mA LED Current High CTR 50-600% High Speed 1andmicro;s Max Wide Temp -55 to 110anddeg;C 3750Vrms Isolation Low Power Safety Approvals

andnbsp;

Featuresandnbsp;

Collector-emitter voltage: 80 V (min)

Current transfer ratio: 50% (min)

andnbsp; GB Rank: 100% (min)

Isolation voltage: 3750 Vrms (min)

Operating temperature: -55 to 110 andnbsp;

Safety standards UL-recognized:

andnbsp; UL 1577, File No.E67349

andnbsp; cUL-recognized: CSA Component Acceptance Service No.5A File No.E67349

andnbsp; VDE-approved: EN 60747-5-5, EN 62368-1 (Note 1)

andnbsp; CQC-approved: GB4943.1, GB8898 Japan and Thailand Factory

andnbsp;

Applications

andbull; Office Equipment

andbull; Programmable Logic Controllers (PLCs)

andbull; AC Adapters

andbull; I/O Interface Boards

andnbsp;

Description

The TLP185(SE consist of a photo transistor optically coupled to an infrared LED. The TLP185(SE photocoupler is housed in the very small and thin SO6 package. Since TLP185(SE is smaller than DIP package, itand#39;s suitable for high-density surface mounting application such

andnbsp;

INFORMATION

andnbsp;

Drawing

Our advantage :

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

andnbsp;

be sure to meet your need for all kinds of components. ^_^
