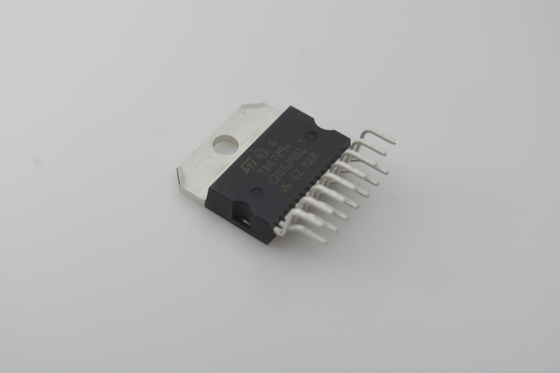

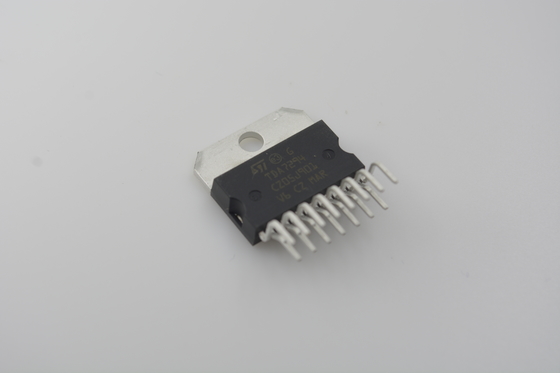

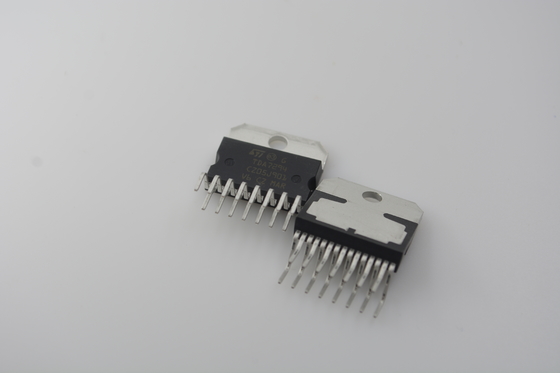

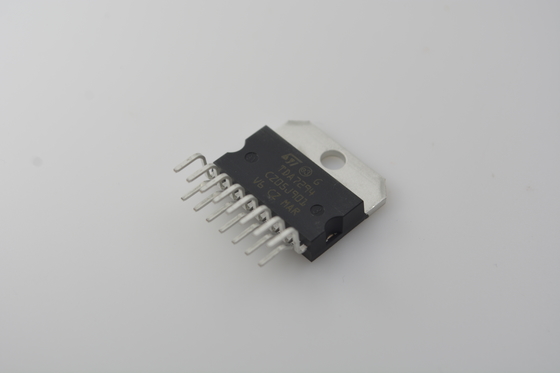

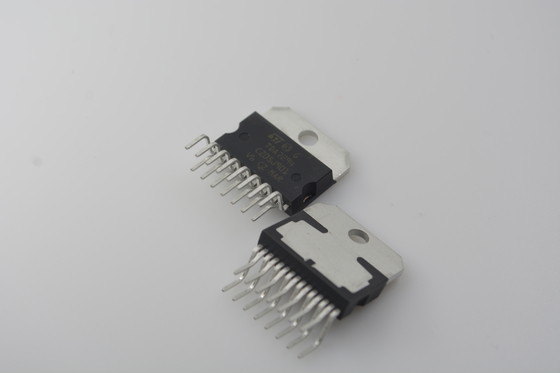

TDA7294V 100W DMOS Audio Amp with High Output Power Mute/Standby Functions Low Noise Wide Supply Range (±10V to ±40V) Short-Circuit and Thermal Protection and SPI Technology

TDA7294V 100W DMOS Audio Amp with High Output Power Mute/Standby Functions Low Noise Wide Supply Range (andplusmn;10V to andplusmn;40V) Short-Circuit andamp; Thermal Protection and SPI Technology

andnbsp;

Features

andbull; Very high operating voltage range (andplusmn; 40 V)

andbull; DMOS power stage

andbull; High output power (up to 100 W music power)

andbull; Muting/stand-by functions

andbull; No switch on/off noise

andbull; No boucherot cells

andbull; Very low distortion

andbull; Very low noise

andbull; Short circuit protection

andbull; Thermal shutdown

andnbsp;

Applications

andnbsp;

Description

The TDA7294 is a monolithic integrated circuit in Multiwatt15 package, intended for use as audio class AB amplifier in Hi-Fi field applications (Home Stereo, self powered loudspeakers, Topclass TV). Thanks to the wide voltage range and to the high out current capability it is able to supply the highest power into both 4 Ω and 8 Ω loads even in presence of poor supply regulation, with high supply voltage rejection.

The built in muting function with turn on delay simplifies the remote operation avoiding switching on-off noises.

andnbsp;

INFORMATION

andnbsp;

Drawing

Our advantage :

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

andnbsp;

be sure to meet your need for all kinds of components. ^_^
