Ultra-Low Noise LM4562MAX Hi-Fi Audio Op Amp
Product Attributes
| Attribute |
Value |
| Function |
Step-Up, Step-Down |
| Output Configuration |
Positive or Negative |
| Topology |
Buck, Boost |
| Output Type |
Adjustable |
| Number of Outputs |
1 |
Features
- Easily Drives 600Ω Loads
- Optimized for Superior Audio Signal Fidelity
- Output Short Circuit Protection
- PSRR and CMRR Exceed 120dB (Typ)
- SOIC, PDIP, and TO-99 Packages
Applications
- Ultra High-Quality Audio Amplification
- High-Fidelity Preamplifiers
- High-Performance Professional Audio
- High-Fidelity Active Equalization and Crossover Networks
- High-Performance Line Drivers and Receivers
Description
The LM4562 is part of the ultra-low distortion, low noise, high-slew-rate operational amplifier series optimized and fully specified for high-performance, high-fidelity applications. The LM4562 audio operational amplifiers deliver superior audio signal amplification for outstanding audio performance. The LM4562 combines extremely low voltage noise density (2.7nV/√Hz) with vanishingly low THD+N (0.00003%) to easily satisfy the most demanding audio applications. To ensure that the most challenging loads are driven without compromise, the LM4562 has a high slew rate of ±20V/μs and an output current capability of ±26mA. Further, dynamic range is maximized by an output stage that drives 2kΩ loads to within 1V of either power supply voltage and to within 1.4V when driving 600Ω loads.
The LM4562's outstanding CMRR (120dB), PSRR (120dB), and VOS (0.1mV) give the amplifier excellent operational amplifier DC performance. The LM4562 has a wide supply range of ±2.5V to ±17V. Over this supply range the LM4562's input circuitry maintains excellent common-mode and power supply rejection, as well as maintaining its low input bias current. The LM4562 is unity gain stable. This Audio Operational Amplifier achieves outstanding AC performance while driving complex loads with values as high as 100pF.
The LM4562 is available in an 8-lead narrow body SOIC, an 8-lead PDIP, and an 8-lead TO-99.
Technical Specifications
| Category |
Integrated Circuits (ICs) Linear Amplifiers Instrumentation, Op Amps, Buffer Amps |
| Mfr |
Texas Instruments |
| Series |
- |
| Packaging |
Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Part Status |
Active |
| Amplifier Type |
Audio |
| Number of Circuits |
2 |
| Output Type |
- |
| Slew Rate |
20V/µs |
| Gain Bandwidth Product |
55 MHz |
| Current - Input Bias |
10 nA |
| Voltage - Input Offset |
100 µV |
| Current - Supply |
10mA (x2 Channels) |
| Current - Output / Channel |
26 mA |
| Voltage - Supply Span (Min) |
5 V |
| Voltage - Supply Span (Max) |
34 V |
| Operating Temperature |
-40°C ~ 85°C |
| Mounting Type |
Surface Mount |
| Package / Case |
8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package |
8-SOIC |
| Base Product Number |
LM4562 |

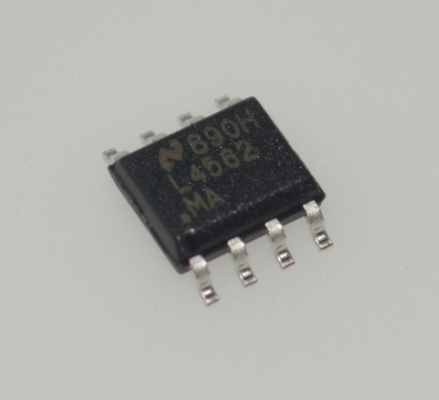

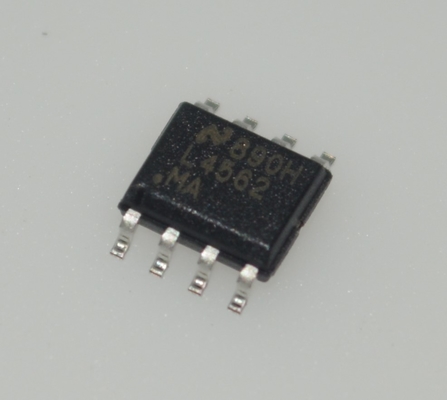

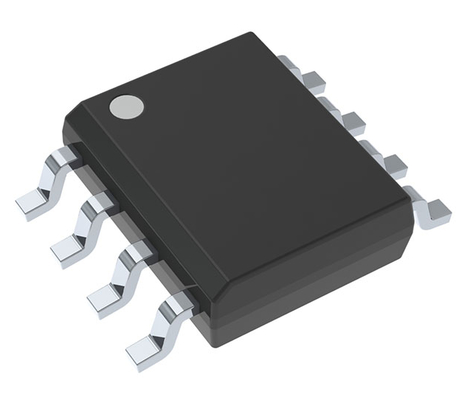

Product Drawing
