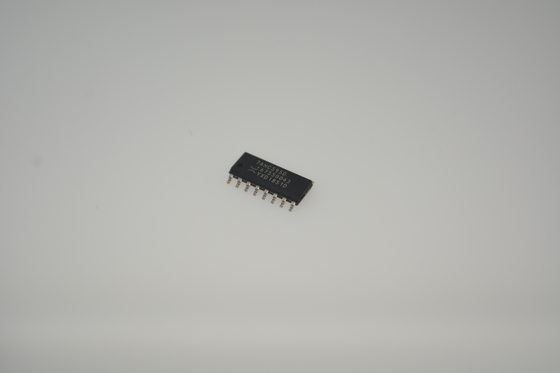

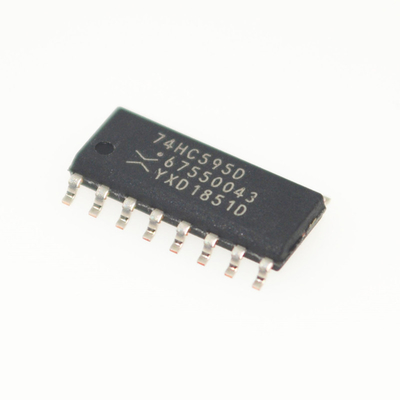

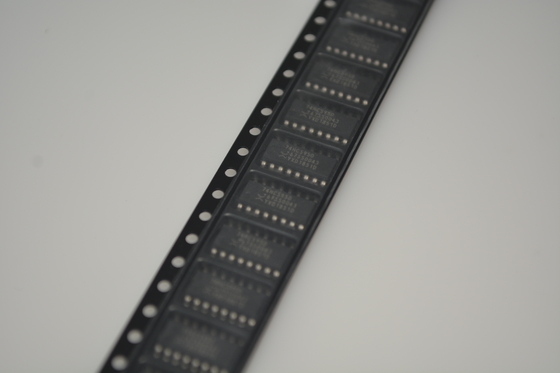

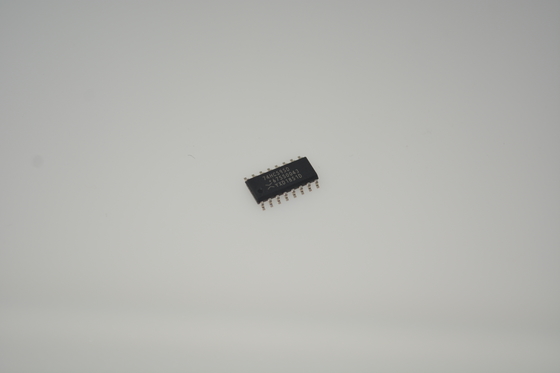

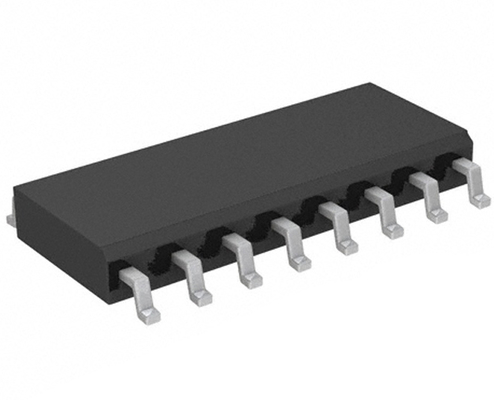

74HC595D Shift Register 8-Bit Serial-In Parallel-Out Serial Output Latch High-Current Tri-State Outputs Wide Operating Voltage (2V-6V) Low Power Consumption and Easy Daisy-Chaining

The 74HC595D is a high speed 8-BIT SHIFT REGISTER/LATCH fabricated with silicon gate C2MOS technology. It achieves the high speed operation similar to equivalent LSTTL while maintaining the CMOS low power dissipation.

• High speed: fMAX = 55 MHz (typ.) at VCC = 5 V
• Low power dissipation: ICC = 4.0 µA (max) at Ta = 25℃
• Balanced propagation delays: tPLH ≈ tPHL
• Wide operating voltage range: VCC(opr) = 2.0 V to 6.0 V

LED Display Control:

• Driving multi-digit 7-segment displays
• Controlling LED matrix panels (e.g., scrolling text displays)
• Managing large LED arrays for decorative or indicator lighting

General-Purpose Output Expansion:

• Controlling multiple relays, solenoids, or actuators
• Interfacing with devices requiring parallel input signals

Industrial and Automation Systems:

• Industrial control panels for status indicators
• Data acquisition and output control modules

Communication and Interface Conversion:

• Serial-to-parallel signal conversion for legacy devices
• Protocol adaptation in embedded systems

• High quality products - our offers are 100% new and original, ROHS
• Competitive price - good Purchase channels with good price
• Professional service - strict quality testing before the shipment, and perfect after-sales service
• Adequate inventory - With the support of our strong Purchasing team
• Fast delivery - we will ship the goods within 1-3 working days after the payment confirmed

We supply a full range of semiconductors, active and passive components. We can help you get all parts for your PCB BOM - a complete one-stop solution.

Our offerings include:

• Integrated Circuits, Memory ICs
• Diodes, Transistors, Capacitors, Resistors
• Varistors, Fuses, Trimmers and Potentiometers
• Transformers, Batteries, Cables, Relays
• Switches, Connectors, Terminal Blocks
• Crystals and Oscillators, Inductors, Sensors
• IGBT Drivers, LEDs, LCDs, Converters
• PCBs (Printed Circuit Boards), PCBA (PCB Assembly)
