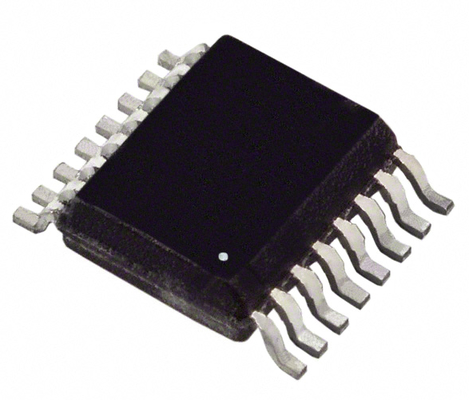

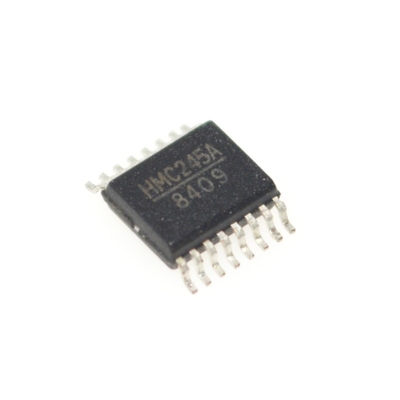

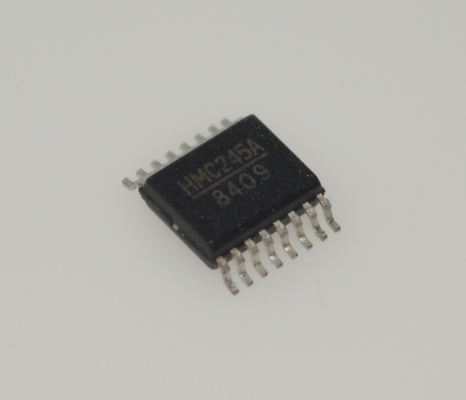

HMC245AQS16E High-Performance SPST Switch 0.1-6GHz Broadband 1.2dB Low IL 60dB Isolation 5V/3V CMOS Control +38dBm IP3 50Ω Matched RoHS Compliant for Cellular/WiFi Systems

HMC245AQS16E High-Performance SPST Switch 0.1-6GHz Broadband 1.2dB Low IL 60dB Isolation 5V/3V CMOS Control +38dBm IP3 50Ω Matched RoHS Compliant for Cellular/WiFi Systems

 Features

Low Insertion Loss: 0.7 dB @ 2.0 GHz

Non-Reflective Design

Integrated 2:3 TTL Decoder

“All Off” Isolation State

Single Positive Supply: Vdd = +5V

16 Lead QSOP SMT Package

Applications

The HMC245AQS16 / 245AQS16E is ideal for:

• Basestation Infrastructure

• CATV / DBS

• Wireless Local Loop

• Test Equipment

Description

The HMC245AQS16E is a low cost non-reflective SP3T switches in 16-lead QSOP surface mount pack ages. Covering DC to 3.5 GHz, the switch offers 30 to 40 dB isolation and a low insertion loss of 0.7 dB. A 2:3 TTL/CMOS compatible decoder is integrated on the switch requiring only 2 control lines and a single +5V bias to select each path, replacing 6 control lines normally required by GaAs SP3T switches.

INFORMATION

Drawing
