EMI2121MTTAG Ultra-Low Noise High PSRR LDO with 1A Output 0.5% Accuracy Fast Response Enable Control Thermal Protection in a Miniature Package for Dense PCBs

EMI2121MTTAG Ultra-Low Noise High PSRR LDO with 1A Output 0.5% Accuracy Fast Response Enable Control Thermal Protection in a Miniature Package for Dense PCBs

Features

•Highly Integrated Common Mode Filter (CMF) with ESD Protection provides protection and EMI Reduction for systems using high speed Serial Data Lines with cost and space savings over Discrete Solutions

•Large Differential Mode Bandwidth with Cutoff Frequency > 2 GHz

•High Common Mode Stop Band Attenuation: >25 dB at 700 MHz, >30 dB at 800 MHz Typical

•Provides ESD Protection to IEC61000−4−2 Level 4, ±12 kV Contact Discharge

•Low Channel Input Capacitance provides Superior Impedance Matching Performance

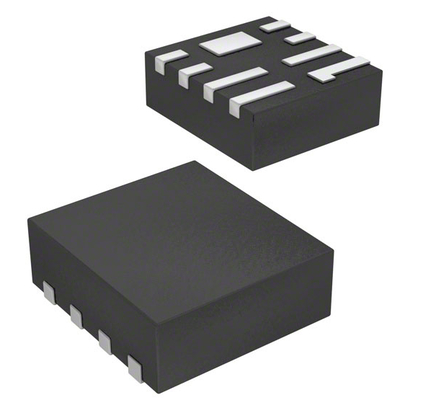

•Low Profile Package with Small Footprint in WDFN8 2.0 mm length x 2.2 mm width x 0.75 mm height Pb−Free Package

•SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable

•These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

Applications

•USB2.0 and other High Speed Differential Data Lines in Mobile Phones, Digital Still Cameras, and Automotive interfaces

•MIPI D−PHY

Description

The EMI2121 is an integrated common mode filter providing both ESD protection and EMI filtering for high speed serial digital interfaces such as USB2.0.

The EMI2121 provides EMI filtering for one differential data line pair and ESD protection for one data pair plus a supply input such as USB2.0 Vbus or USB ID pin. It is supplied in a small RoHS−compliant WDFN8 package.

INFORMATION

Drawing
