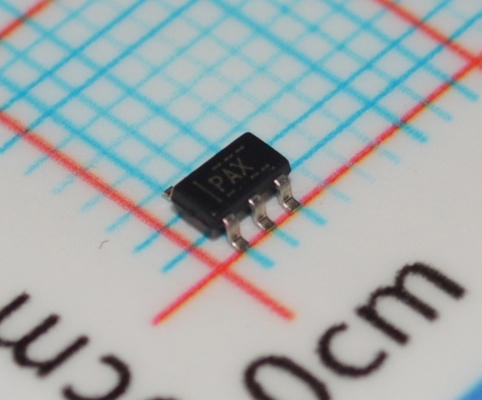

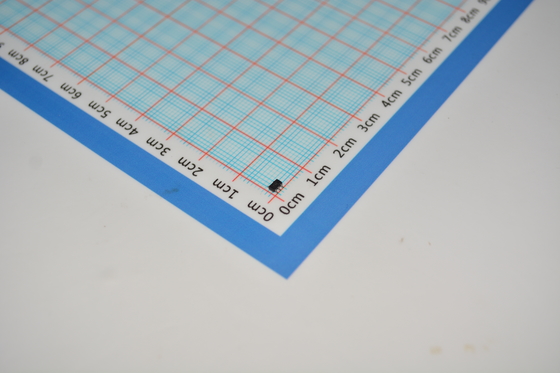

TLV70450DBVR 5V 150mA Ultra-Low IQ (300nA) LDO with High PSRR (70dB) 2% Accuracy Stable with 1μF Ceramic Capacitor Enable Pin and Thermal Protection in SOT-23 Package

TLV70450DBVR 5V 150mA Ultra-Low IQ (300nA) LDO with High PSRR (70dB) 2% Accuracy Stable with 1andmu;F Ceramic Capacitor Enable Pin and Thermal Protection in SOT-23 Package

andnbsp;

Features

andbull; Input voltage range:andndash; 2.5 V to 24 V (30 V max for new chip only)

andbull; Available output voltage options:andndash; Fixed: 1.8 V to 5 V

andbull; Output current: Up to 150 mA

andbull; Very low IQ: 3.4 andmu;A at 100-mA load current

andbull; Stable with output capacitor andge; 0.47 andmu;F

andbull; Overcurrent protection

andbull; Package: 5-pin SOT-23 (DBV)

andbull; Operating junction temperature: andndash;40anddeg;C to +125anddeg;C

andnbsp;

Applications

andbull; Home and building automation

andbull; Retail automation and payment

andbull; Grid infrastructure

andbull; Medical applications

andbull; Lighting applications

andnbsp;

Description

The TLV704 low-dropout (LDO) linear voltage regulator is a low quiescent current device that offers the benefits of a wide input voltage range and low-power operation in miniaturized packaging. Thus, the TLV704 is designed for battery-powered applications and as a power-management attachment to low-power microcontrollers.

The TLV704 LDO supports a low dropout of typically 850 mV at 100 mA of load current. The low quiescent current (3.4 andmu;A typically) is stable over the entire range of output load current (0 mA to 150 mA). The TLV704 also features an internal soft-start to lower the inrush current. The built-in overcurrent limit protection helps protect the regulator in the event of a load short or fault.

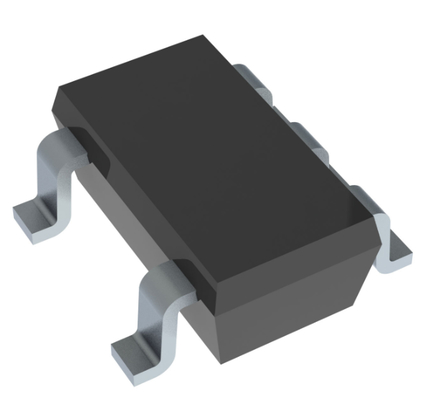

The TLV704 is available in a 2.90-mm andtimes; 1.60-mm SOT23-5 package, which is useful for cost-effective board manufacturing.

andnbsp;

INFORMATION

andnbsp;

Drawing
