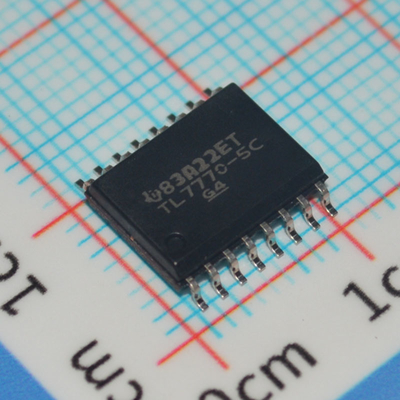

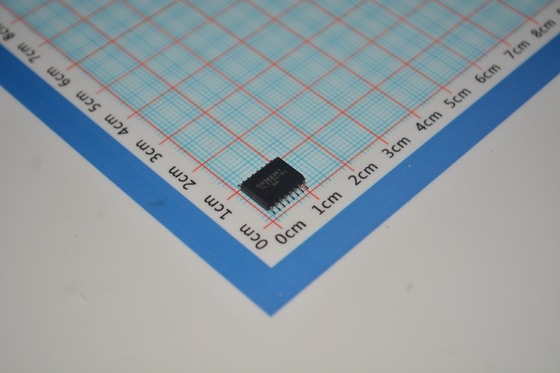

TL7770-5CDWR High-Accuracy (±2%) 5V Voltage Monitor with Manual Reset Low Supply Current (40µA) Power-On Reset and 200ms Delay in SOIC-8 Package

TL7770-5CDWR High-Accuracy (andplusmn;2%) 5V Voltage Monitor with Manual Reset Low Supply Current (40andmicro;A) Power-On Reset and 200ms Delay in SOIC-8 Package

andnbsp;

Features

Power-On Reset Generator

Automatic Reset Generation After Voltage Drop

RESET Defined When VCC Exceeds 1 V

Wide Supply-Voltage Range . . . 3.5 V to 18 V

Precision Overvoltage and Undervoltage Sensing

250-mA Peak Output Current for Driving SCR Gates

2-mA Active-Low SCR Gate Drive for False-Trigger Protection

Temperature-Compensated Voltage Reference

True and Complementary Reset Outputs

Externally Adjustable Output Pulse Duration

andnbsp;

Applications

Industrial Control and Automation Systems

Automotive Electronics

Computer and Server Systems

Consumer Electronics and Smart Appliances

Security and Critical Systems

andnbsp;

Description

The TL7770 is an integrated-circuit system supervisor designed for use as a reset controller in microcomputer and microprocessor power-supply systems. This device contains two independent supply-voltage supervisors that monitor the supplies for overvoltage and undervoltage conditions at the VSO and VSU terminals, respectively. When VCC attains the minimum voltage of 1 V during power up, the RESET output becomes active (low). As VCC approaches 3.5 V, the time-delay function activates, latching RESET and RESET active (high and low, respectively) for a time delay (td) after system voltages have achieved normal levels. Above VCC = 3.5 V, taking RESIN low activates the time-delay function during normal system-voltage levels. To ensure that the microcomputer system has reset, the outputs remain active until the voltage at VSU exceeds the threshold value, VIT+, for a time delay, which is determined by an external timing capacitor such that: td 20 103 capacitance

where td is in seconds and capacitance is in farads.

The overvoltage-detection circuit is programmable for a wide range of designs. During an overvoltage condition, an internal silicon-controlled rectifier (SCR) is triggered, providing 250-mA peak instantaneous current and 25-mA continuous current to the SCR gate drive terminal, which can drive an external high-current SCR gate or an overvoltage-warning circuit.

The TL7770C series is characterized for operation from 0anddeg;C to 70anddeg;C. The TL7770I series is characterized for operation from andplusmn;40anddeg;C to 85anddeg;C.

andnbsp;

INFORMATION

andnbsp;

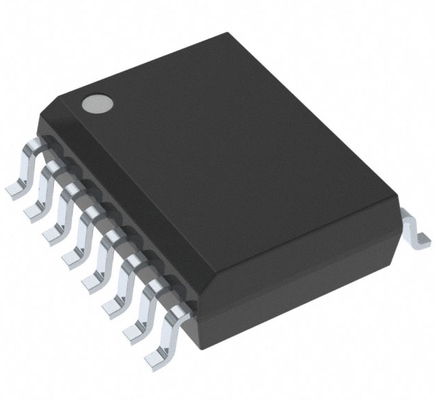

Drawing

Our advantage :

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

andnbsp;

be sure to meet your need for all kinds of components. ^_^


Product List
Supply a Series of Electronic Components, full range of semiconductors, active andamp; passive Components.We can help you to get all for bom of the PCB,IN a word, you can get one-stop solution here,


The offers including:
Integrated Circuit, Memory ICs, Diode, Transistor , Capacitor, Resistor, Varistor, Fuse, Trimmer andamp; Potentiometer, Transformer, Battery, Cable, Relay, Switch, Connector, Terminal Block, Crystal andamp; Oscillator, Inductor, Sensor, Transformer, IGBT Driver, LED,LCD, Convertor, PCB (Printed Circuit Board),PCBA (PCB Assembly)

Strong in Brand:
Microchip, MAX, AD, TI, ATMEL, ST, ON, NS, Intersil, Winbond, Vishay, ISSI, Infineon, NEC, FAIRCHILD, OMRON,YAGEO, TDK, etc
