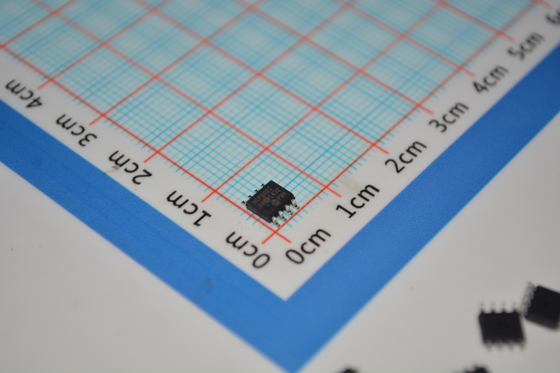

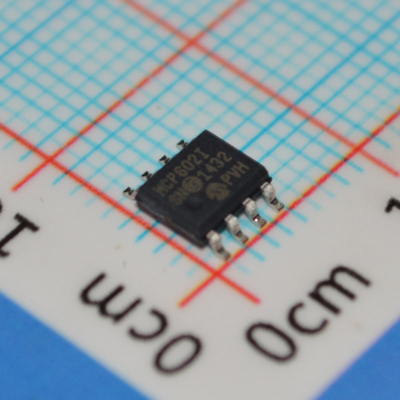

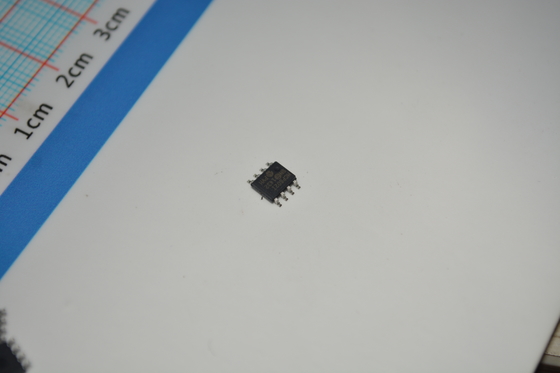

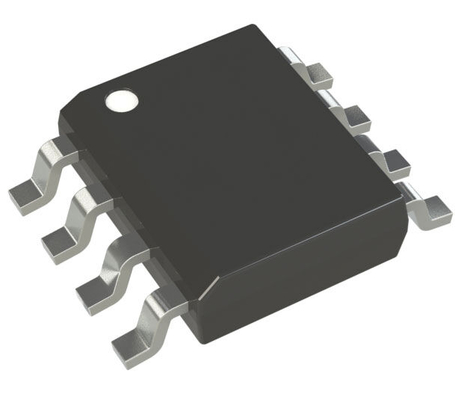

MCP602-I/SN 2.7V-6V Dual Op Amp with 10MHz Bandwidth Low 1.8mA Current Rail-to-Rail I/O 3V/5V Operation and 8-Pin SOIC Package

MCP602-I/SN 2.7V-6V Dual Op Amp with 10MHz Bandwidth Low 1.8mA Current Rail-to-Rail I/O 3V/5V Operation and 8-Pin SOIC Package

andnbsp;

Features

andbull; Single-Supply: 2.7V to 6.0V

andbull; Rail-to-Rail Output

andbull; Input Range Includes Ground

andbull; Gain Bandwidth Product: 2.8 MHz (typical)

andbull; Unity-Gain Stable

andbull; Low Quiescent Current: 230 andmicro;A/amplifier (typical)

andbull; Chip Select (CS ): MCP603 only

andbull; Temperature Ranges:

andnbsp; - Industrial: -40anddeg;C to +85anddeg;C

andnbsp; - Extended: -40anddeg;C to +125anddeg;C

andbull; Available in Single, Dual, and Quad

andnbsp;

Applications

andbull; Portable Equipment

andbull; A/D Converter Driver

andbull; Photo Diode Pre-amp

andbull; Analog Filters

andbull; Data Acquisition

andbull; Notebooks and PDAs

andbull; Sensor Interface

andnbsp;

Description

The Microchip Technology Inc. MCP601/1R/2/3/4 family of low-power operational amplifiers (op amps) are offered in single (MCP601), single with Chip Select (CS ) (MCP603), dual (MCP602), and quad (MCP604) configurations. These op amps utilize an advanced CMOS technology that provides low bias current, high speed operation, high open-loop gain, and rail-to-rail output swing. This product offering operates with a single supply voltage that can be as low as 2.7V, while drawing 230 andmicro;A (typical) of quiescent current per amplifier. In addition, the common mode input voltage range goes 0.3V below ground, making these amplifiers ideal for single-supply operation.

These devices are appropriate for low power, battery operated circuits due to the low quiescent current, for A/D convert driver amplifiers because of their wide bandwidth or for anti-aliasing filters by virtue of their low input bias current.

The MCP601, MCP602, and MCP603 are available in standard 8-lead PDIP, SOIC, and TSSOP packages. The MCP601 and MCP601R are also available in a standard 5-lead SOT-23 package, while the MCP603 is available in a standard 6-lead SOT-23 package. The MCP604 is offered in standard 14-lead PDIP, SOIC, and TSSOP packages.

The MCP601/1R/2/3/4 family is available in the Industrial and Extended temperature ranges and has a power supply range of 2.7V to 6.0V

andnbsp;

INFORMATION

andnbsp;

Drawing
