LTM4622IY 4A 20V Synchronous Step-Down µModule Regulator with 95% Efficiency 3.1-20V Input ±1.5% Output Accuracy 2.5MHz Switching and 6.25mm × 6.25mm BGA Package

LTM4622IY 4A 20V Synchronous Step-Down µModule Regulator with 95% Efficiency 3.1-20V Input ±1.5% Output Accuracy 2.5MHz Switching and 6.25mm × 6.25mm BGA Package

FEATURES

n Complete Solution in <1cm2

n Wide Input Voltage Range: 3.6V to 20V

n 3.3V Input Compatible with VIN Tied to INTVCC

n 0.6V to 5.5V Output Voltage

n Dual 2.5A (3A Peak) or Single 5A Output Current

n ±1.5% Maximum Total Output Voltage Regulation Error Over Load, Line, and Temperature

n Current Mode Control, Fast Transient Response

n External Frequency Synchronization

n Multiphase Parallelable with Current Sharing

n Output Voltage Tracking and Soft-Start Capability

n Selectable Burst Mode® Operation

n Overvoltage Input and Overtemperature Protection

n Power Good Indicators

n 6.25mm × 6.25mm × 1.82mm LGA and 6.25mm × 6.25mm × 2.42mm BGA Packages

APPLICATIONS

n General Purpose Point-of-Load Conversion

n Telecom, Networking and Industrial Equipment

n Medical Diagnostic Equipment

n Test and Debug Systems

DESCRIPTION

The LTM®4622 is a complete dual 2.5A step-down switch ing mode power µModule® (power module) regulator in a tiny ultrathin 6.25mm × 6.25mm × 1.82mm LGA and 6.25mm × 6.25mm × 2.42mm BGA packages. Included in the package is the switching controller, the power FETs, the inductor, and the supporting components. Operating over an input voltage range of 3.6V to 20V, the LTM4622 supports an output voltage range of 0.6V to 5.5V, set by a single external resistor. Its high efficiency design delivers dual 2.5A continuous, 3A peak, output current. Only a few ceramic input and output capacitors are needed.

The LTM4622 supports selectable Burst Mode operation and output voltage tracking for supply rail sequencing. Its high switching frequency and current mode control enable a very fast transient response to line and load changes without sacrificing stability.

Fault protection features include input overvoltage, out put overcurrent and overtemperature protection. The LTM4622 is available with SnPb (BGA) or RoHS-compliant terminal finish.

INFORMATION

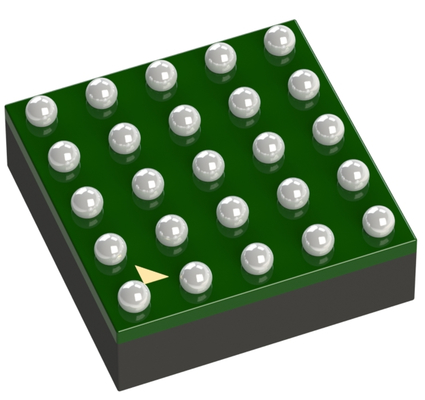

Drawing

Our advantage :

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

be sure to meet your need for all kinds of components. ^_^
