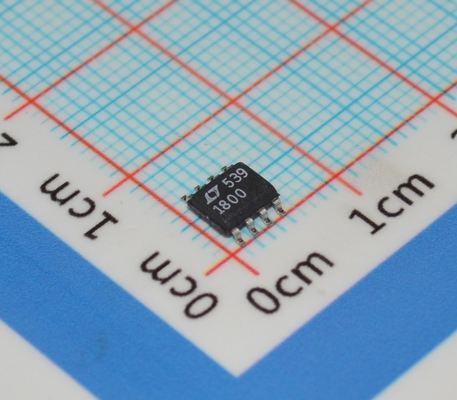

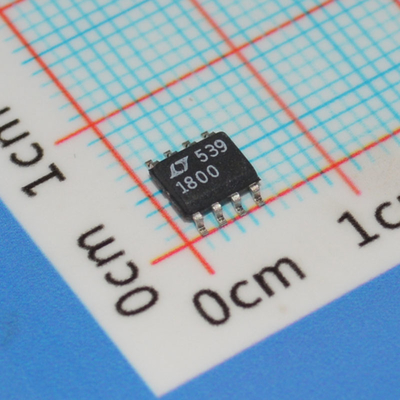

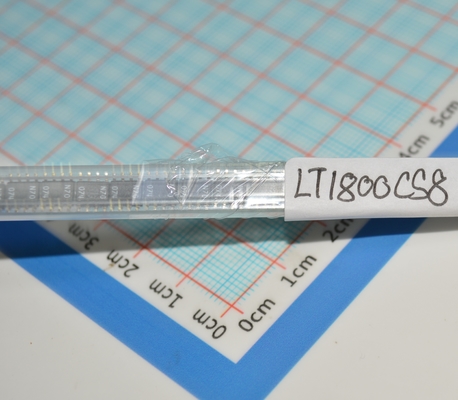

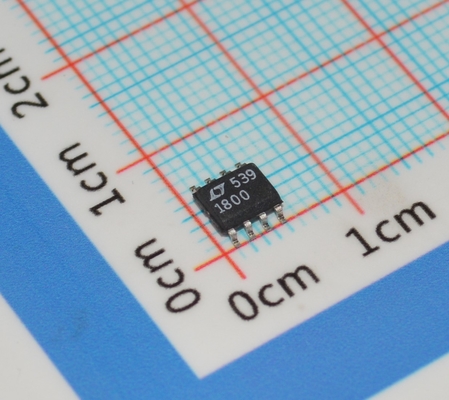

LT1800CS8#PBF Op Amp 100MHz Gain BW 450V/µs Slew Rate 3.5nV/√Hz Noise 2.7-12.6V Supply Rail-to-Rail I/O 8-Pin SOIC -40°C to 85°C Low Power

LT1800CS8#PBF Op Amp 100MHz Gain BW 450V/µs Slew Rate 3.5nV/√Hz Noise 2.7-12.6V Supply Rail-to-Rail I/O 8-Pin SOIC -40°C to 85°C Low Power

FEATURES

n Gain Bandwidth Product: 80MHz

n Input Common Mode Range Includes Both Rails

n Output Swings Rail-to-Rail

n Low Quiescent Current: 2mA Max

n Input Offset Voltage: 350μV Max

n Input Bias Current: 250nA Max

n Low Voltage Noise: 8.5nV/√Hz

n Slew Rate: 25V/μs

n Common Mode Rejection: 105dB

n Power Supply Rejection: 97dB

n Open-Loop Gain: 85V/mV

n Operating Temperature Range: –40°C to 85°C

n Available in the 8-Pin SO and 5-Pin Low Profi le (1mm) ThinSOT™ Packages

APPLICATIONS

n Low Voltage, High Frequency Signal Processing

n Driving A/D Converters

n Rail-to-Rail Buffer Amplifi ers

n Active Filters

n Video Line Driver

DESCRIPTION

The LT®1800 is a low power, high speed rail-to-rail input and output operational amplifi er with excellent DC performance. The LT1800 features reduced supply current, lower input offset voltage, lower input bias current and higher DC gain than other devices with comparable bandwidth.

The LT1800 has an input range that includes both supply rails and an output that swings within 20mV of either supply rail to maximize the signal dynamic range in low supply applications.

The LT1800 maintains its performance for supplies from 2.3V to 12.6V and is specifi ed at 3V, 5V and ±5V supplies. The inputs can be driven beyond the supplies without damage or phase reversal of the output.

The LT1800 is available in the 8-pin SO package with the standard op amp pinout and in the 5-pin TSOT-23 package. For dual and quad versions of the LT1800, see the LT1801/LT1802 data sheet. The LT1800 can be used as a plug-in replacement for many op amps to improve input/output range and performance.

INFORMATION

Drawing

Our advantage :

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

be sure to meet your need for all kinds of components. ^_^


Product List
Supply a Series of Electronic Components, full range of semiconductors, active & passive Components.We can help you to get all for bom of the PCB,IN a word, you can get one-stop solution here,


The offers including:
Integrated Circuit, Memory ICs, Diode, Transistor , Capacitor, Resistor, Varistor, Fuse, Trimmer & Potentiometer, Transformer, Battery, Cable, Relay, Switch, Connector, Terminal Block, Crystal & Oscillator, Inductor, Sensor, Transformer, IGBT Driver, LED,LCD, Convertor, PCB (Printed Circuit Board),PCBA (PCB Assembly)

Strong in Brand:
Microchip, MAX, AD, TI, ATMEL, ST, ON, NS, Intersil, Winbond, Vishay, ISSI, Infineon, NEC, FAIRCHILD, OMRON,YAGEO, TDK, etc
