CSD25404Q3T 40V P-Channel NexFET™ MOSFET with 8.5mΩ RDS(on) 50A Current 175°C Rating Low Qg 3.3mm×3.3mm SON Package AEC-Q101 Qualified and Halogen-Free Design

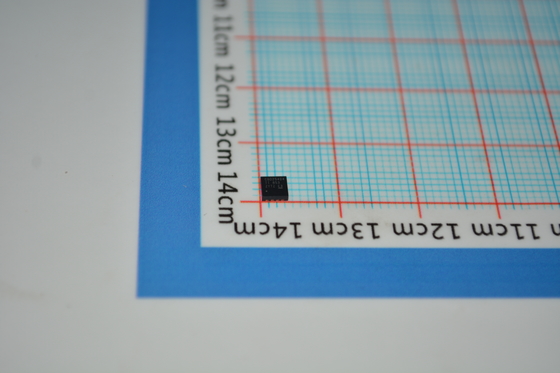

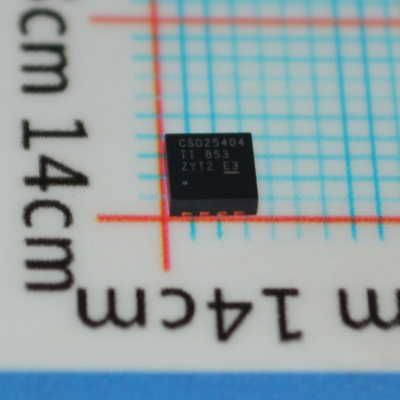

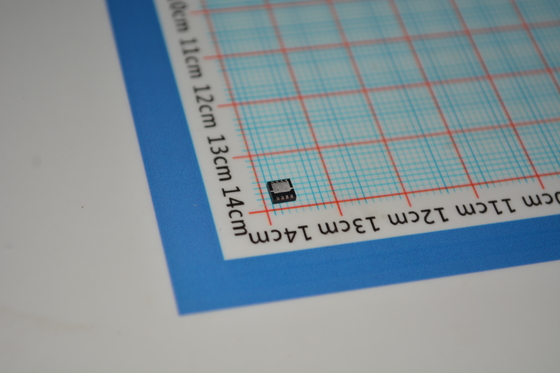

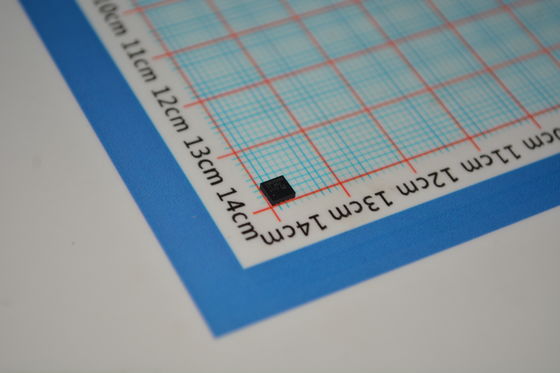

Large Image : CSD25404Q3T 40V P-Channel NexFET™ MOSFET with 8.5mΩ RDS(on) 50A Current 175°C Rating Low Qg 3.3mm×3.3mm SON Package AEC-Q101 Qualified and Halogen-Free Design

Product Details:

Place of Origin:	China
Brand Name:	Texas Instruments
Certification:	CE, GCF, ROHS
Model Number:	CSD25404Q3T

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Packed in original tray firstly ,then carton, at last Bubble bag for outer packing
Delivery Time:	3-5 working days after received the payment
Payment Terms:	T/T, Western Union,
Supply Ability:	1000pcs per month

Contact Now

Detailed Product Description

Function:	Step-Up, Step-Down	Output Configuration:	Positive Or Negative
Topology:	Buck, Boost	Output Type:	Adjustable
Number Of Outputs:	1
Highlight:	40V P-Channel MOSFET with AEC-Q101 , NexFET MOSFET 50A current rating , Low Qg SON package MOSFET

CSD25404Q3T 40V P-Channel NexFETandtrade; MOSFET with 8.5mandOmega; RDS(on) 50A Current 175anddeg;C Rating Low Qg 3.3mmandtimes;3.3mm SON Package AEC-Q101 Qualified andamp; Halogen-Free Design

andnbsp;

Features

andbull; Ultra-Low Qg and Qgd

andbull; LowThermal Resistance

andbull; LowRDS(on)

andbull; Halogen Free

andbull; RoHSCompliant

andbull; PbFree Terminal Plating

andbull; SON3.3mmandtimes;3.3mmPlastic Package

andnbsp;

Applications

andbull; DC-DCConverters

andbull; Battery Management

andbull; Load Switch

andbull; Battery Protection

andnbsp;

Description

Thisandndash;20 V, 5.5 mandOmega; NexFETandtrade; power MOSFET is designed to minimize losses in power conversion load management applications with a SON 3.3 mm andtimes; 3.3 mm package that offers an excellent thermal performance for the size of the device.

andnbsp;

INFORMATION

Category	Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs	andnbsp;
Mfr	Texas Instruments	andnbsp;
Series	NexFETandtrade;	andnbsp;
Packaging	Tape andamp; Reel (TR) Cut Tape (CT) Digi-Reelandreg;	andnbsp; andnbsp; andnbsp;
Part Status	Active	andnbsp;
FET Type	P-Channel	andnbsp;
Technology	MOSFET (Metal Oxide)	andnbsp;
Drain to Source Voltage (Vdss)	20 V	andnbsp;
Current - Continuous Drain (Id) @ 25anddeg;C	104A (Tc)	andnbsp;
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V	andnbsp;
Rds On (Max) @ Id, Vgs	6.5mOhm @ 10A, 4.5V	andnbsp;
Vgs(th) (Max) @ Id	1.15V @ 250andmicro;A	andnbsp;
Gate Charge (Qg) (Max) @ Vgs	14.1 nC @ 4.5 V	andnbsp;
Vgs (Max)	andplusmn;12V	andnbsp;
Input Capacitance (Ciss) (Max) @ Vds	2120 pF @ 10 V	andnbsp;
FET Feature	-	andnbsp;
Power Dissipation (Max)	2.8W (Ta), 96W (Tc)	andnbsp;
Operating Temperature	-55anddeg;C ~ 150anddeg;C (TJ)	andnbsp;
Grade	-	andnbsp;
Qualification	-	andnbsp;
Mounting Type	Surface Mount	andnbsp;
Supplier Device Package	8-VSONP (3x3.3)	andnbsp;
Package / Case	8-PowerVDFN	andnbsp;
Base Product Number	CSD25404

andnbsp;

Drawing

Our advantage :

High quality products --- our offers are 100% new and original, ROHS
Competitive price --- good Purchase channels with good price.
Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
Adequate inventory --- With the support of our strong Purchasing team,
Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

andnbsp;

be sure to meet your need for all kinds of components. ^_^

Product List
Supply a Series of Electronic Components, full range of semiconductors, active andamp; passive Components.We can help you to get all for bom of the PCB,IN a word, you can get one-stop solution here,

The offers including:
Integrated Circuit, Memory ICs, Diode, Transistor , Capacitor, Resistor, Varistor, Fuse, Trimmer andamp; Potentiometer, Transformer, Battery, Cable, Relay, Switch, Connector, Terminal Block, Crystal andamp; Oscillator, Inductor, Sensor, Transformer, IGBT Driver, LED,LCD, Convertor, PCB (Printed Circuit Board),PCBA (PCB Assembly)

Strong in Brand:
Microchip, MAX, AD, TI, ATMEL, ST, ON, NS, Intersil, Winbond, Vishay, ISSI, Infineon, NEC, FAIRCHILD, OMRON,YAGEO, TDK, etc
