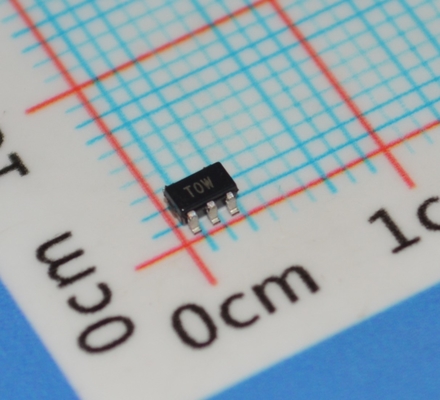

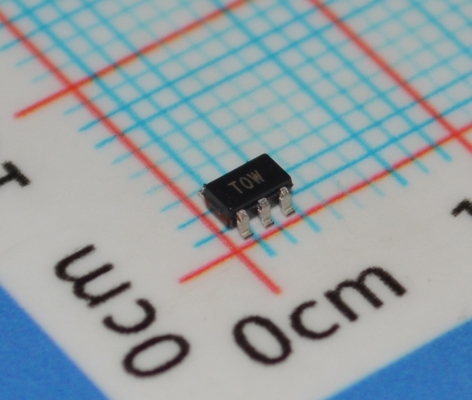

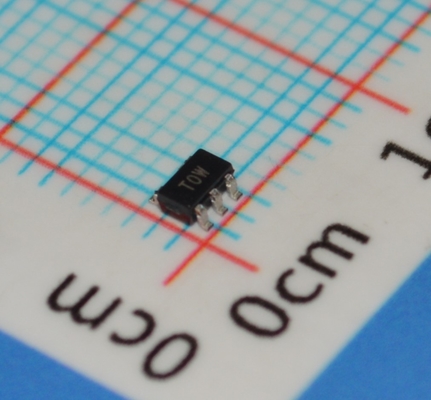

ADT6501SRJZP085RL7 Precision 85°C Temperature Switch ±0.5°C Accuracy 2.7V-5.5V Supply 6μA Ultra-Low Power Open-Drain Output SOT-23 Package for IoT/Portable Devices

ADT6501SRJZP085RL7 Precision 85anddeg;C Temperature Switch andplusmn;0.5anddeg;C Accuracy 2.7V-5.5V Supply 6andmu;A Ultra-Low Power Open-Drain Output SOT-23 Package for IoT/Portable Devices

andnbsp;

FEATURES

andplusmn;0.5anddeg;C (typical) threshold accuracy

Factory-set trip points from

andnbsp; andminus;45anddeg;C to +15anddeg;C in 10anddeg;C increments

andnbsp; +35anddeg;C to +115anddeg;C in 10anddeg;C increments

No external components required

Maximum temperature of 125anddeg;C

Open-drain output (ADT6501/ADT6503)

Push-pull output (ADT6502/ADT6504)

Pin-selectable hysteresis of 2anddeg;C and 10anddeg;C

Supply current of 30 andmicro;A (typical)

Space-saving, 5-lead SOT-23 package

andnbsp;

APPLICATIONS

Medical equipment

Automotive

Cell phones

Hard disk drives

Personal computers

Electronic test equipment

Domestic appliances

Process control

andnbsp;

DESCRIPTION

The ADT6501/ADT6502/ADT6503/ADT6504 are trip point temperature switches available in a 5-lead SOT-23 package. Each part contains an internal band gap temperature sensor for local temperature sensing. When the temperature crosses the trip point setting, the logic output is activated. The ADT6501/ ADT6503 logic output is active low and open-drain. The ADT6502/ADT6504 logic output is active high and push-pull. The temperature is digitized to a resolution of 0.125anddeg;C (11-bit). The factory trip point settings are 10anddeg;C apart starting from andminus;45anddeg;C to +15anddeg;C for the cold threshold models and from +35anddeg;C to +115anddeg;C for the hot threshold models.

These devices require no external components and typically consume 30 andmu;A supply current. Hysteresis is pin-selectable at 2anddeg;C and 10anddeg;C. The temperature switch is specified to operate over the supply range of 2.7 V to 5.5 V

The ADT6501 and ADT6502 are used for monitoring temperatures from +35anddeg;C to +115anddeg;C only. Therefore, the logic output pin becomes active when the temperature goes higher than the selected trip point temperature.

The ADT6503 and ADT6504 are used for monitoring tempera tures from andminus;45anddeg;C to +15anddeg;C only. Therefore, the logic output pin becomes active when the temperature goes lower than the selected trip point temperature.

andnbsp;

INFORMATION

andnbsp;

Drawing
