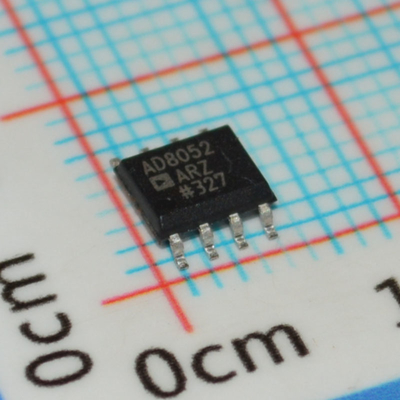

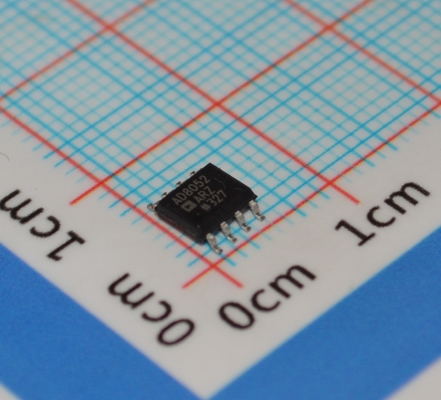

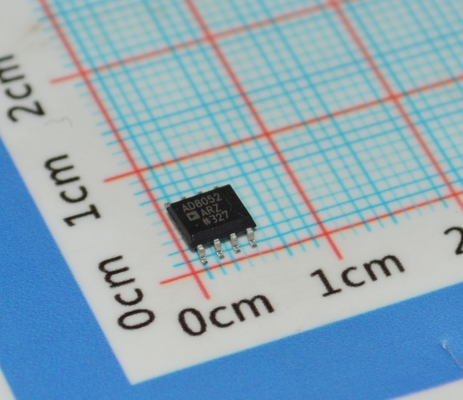

AD8052AR High-Speed 300MHz Op Amp Low Noise 4.5nV/√Hz 5V Operation Rail-to-Rail Output Low Distortion and 160mA Output Drive for Video/ADC Buffers

AD8052AR High-Speed 300MHz Op Amp Low Noise 4.5nV/√Hz 5V Operation Rail-to-Rail Output Low Distortion and 160mA Output Drive for Video/ADC Buffers

FEATURES

High speed and fast settling on 5 V

  110 MHz, −3 dB bandwidth (G = +1) (AD8051/AD8052)

  150 MHz, −3 dB bandwidth (G = +1) (AD8054)

  145 V/μs slew rate

  50 ns settling time to 0.1%

Single-supply operation

  Output swings to within 25 mV of either rail

  Input voltage range: −0.2 V to +4 V; VS = 5 V

Video specifications (G = +2)

  0.1 dB gain flatness: 20 MHz; RL = 150 Ω

  Differential gain/phase: 0.03%/0.03°

Low distortion

  −80 dBc total harmonic @ 1 MHz, RL = 100 Ω

Outstanding load drive capability

  Drives 45 mA, 0.5 V from supply rails (AD8051/AD8052)

  Drives 50 pF capacitive load (G = +1) (AD8051/AD8052)

Low power: 2.75 mA/amplifier (AD8054)

Low power: 4.4 mA/amplifier (AD8051/AD8052)

APPLICATIONS

Active filters

Analog-to-digital drivers

Clock buffer

Consumer video

Professional cameras

CCD imaging systems

CD/DVD ROMs

DESCRIPTION

The AD8051 (single), AD8052 (dual), and AD8054 (quad) are low cost, high speed, voltage feedback amplifiers. The amplifiers operate on +3 V, +5 V, or ±5 V supplies at low supply current. They have true single-supply capability with an input voltage range extending 200 mV below the negative rail and within 1 V of the positive rail.

Despite their low cost, the AD8051/AD8052/AD8054 provide excellent overall performance and versatility. The output voltage swings to within 25 mV of each rail, providing maximum output dynamic range with excellent overdrive recovery.

The AD8051/AD8052/AD8054 are well suited for video electronics, cameras, video switchers, or any high speed portable equipment. Low distortion and fast settling make them ideal for active filter applications.

The AD8051/AD8052 in the 8-lead SOIC, the AD8052 in the MSOP, the AD8054 in the 14-lead SOIC, and the 14-lead TSSOP packages are available in the extended temperature range of −40°C to +125°C.

INFORMATION

Drawing
